Marker Lamp Replacement

REMOVAL PROCEDURE

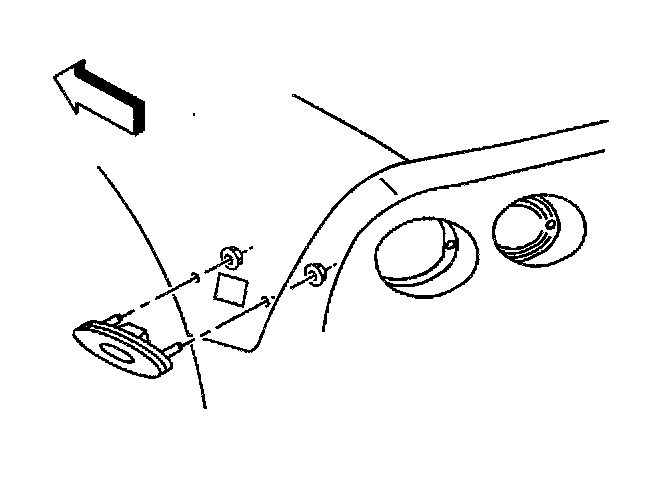

1. Remove the nearest outer taillamp.
2. Remove the two nuts attaching the radio antenna bracket and reposition the antenna for access to the side marker lamp (power antenna).
3. Remove the sidemarker lamp socket from the sidemarker lamp assembly.

Access the sidemarker lamp through the taillamp opening.
4. Remove the sidemarker lamp retaining nuts.
5. Remove the sidemarker lamp.

INSTALLATION PROCEDURE
1. Position the sidemarker lamp to the fender.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the sidemarker lamp retaining nuts.

Tighten
Tighten the rear sidemarker lamp retaining nuts to 2.3 N.m (20 lb in).

3. Install the socket to the sidemarker lamp assembly.
4. Install the nuts attaching the radio antenna, if removed.

Tighten
Tighten the antenna bracket retaining nuts to 12 N.m (106 lb in).

5. Install the taillamp.
