Underhood Lamp: Service and Repair

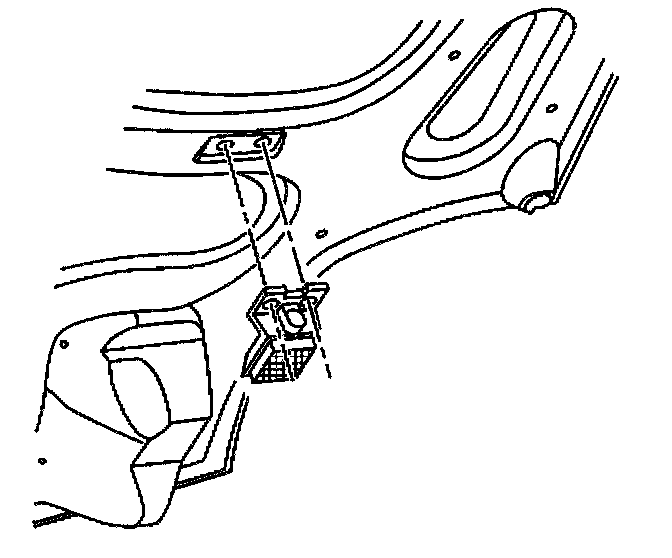

REMOVAL PROCEDURE



1. Open the hood.
2. Disconnect the electrical connector from the underhood lamp assembly.




3. Drill out the two rivets retaining the underhood lamp assembly.
4. Remove the underhood lamp from the vehicle.

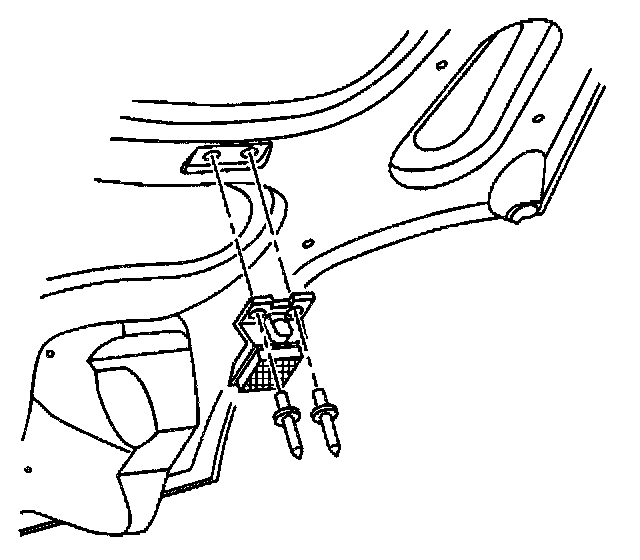

INSTALLATION PROCEDURE



1. Install the underhood lamp assembly into position under the hood.
2. Install 2 new underhood lamp retaining rivets.




3. Connect the electrical connector to the underhood lamp assembly.
4. Close the hood.
