Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Grounds By Number >> G100 - G199 >> G101

G101

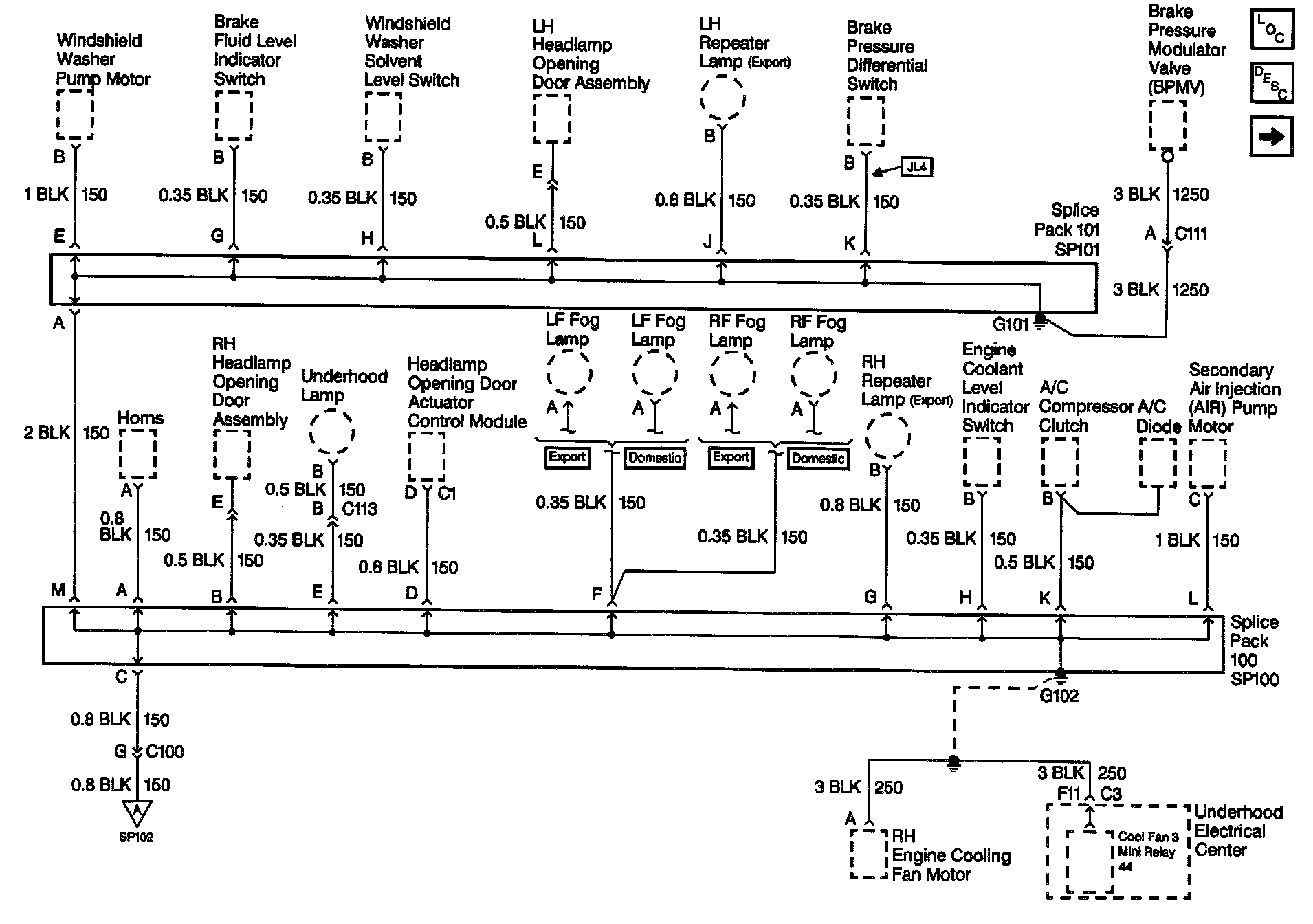

SP101, SP100, G101, G102:
