Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
Grounds By Number
>>
G100 - G199
>>
G108
G108

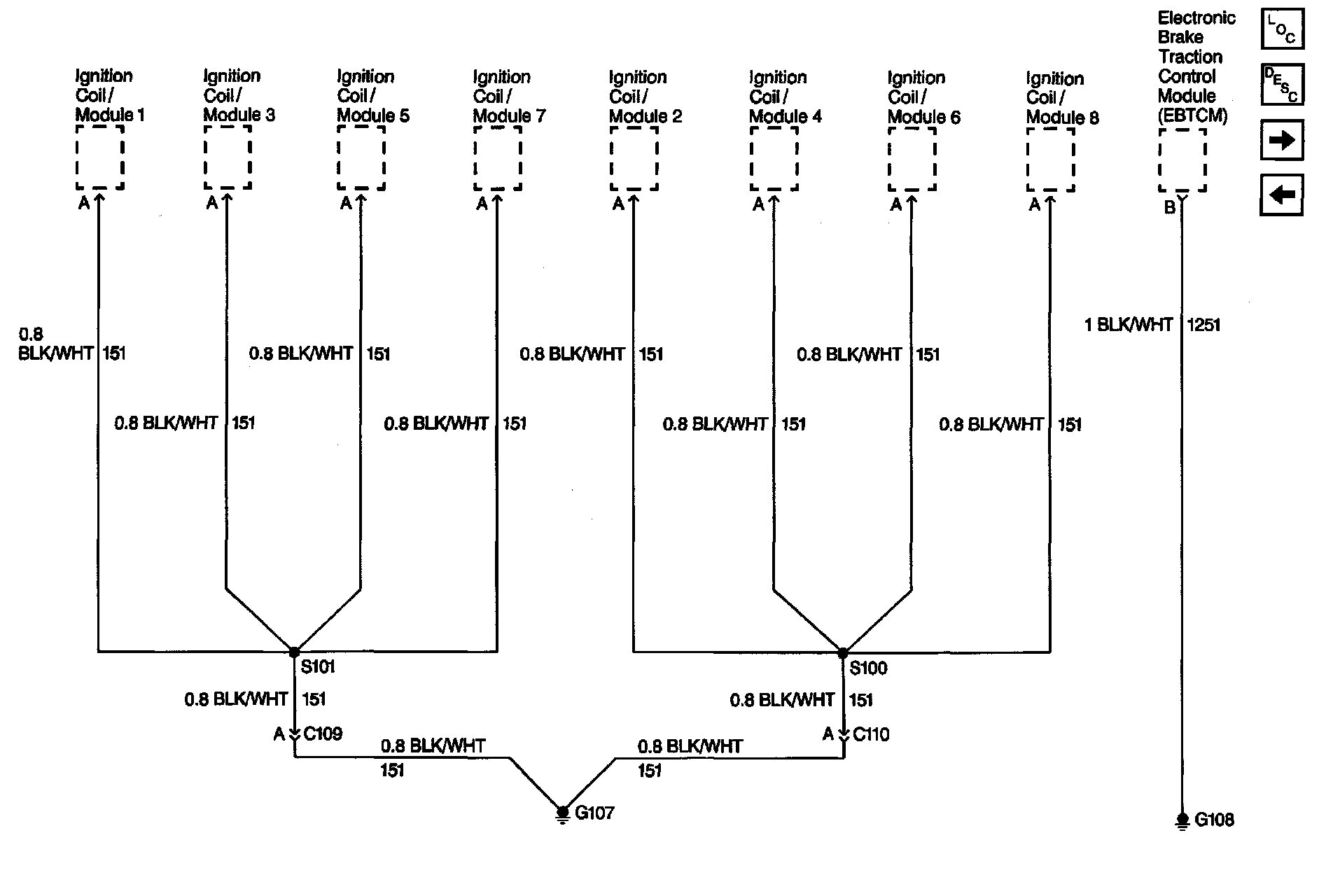

G107, G108:
