Powertrain Controls

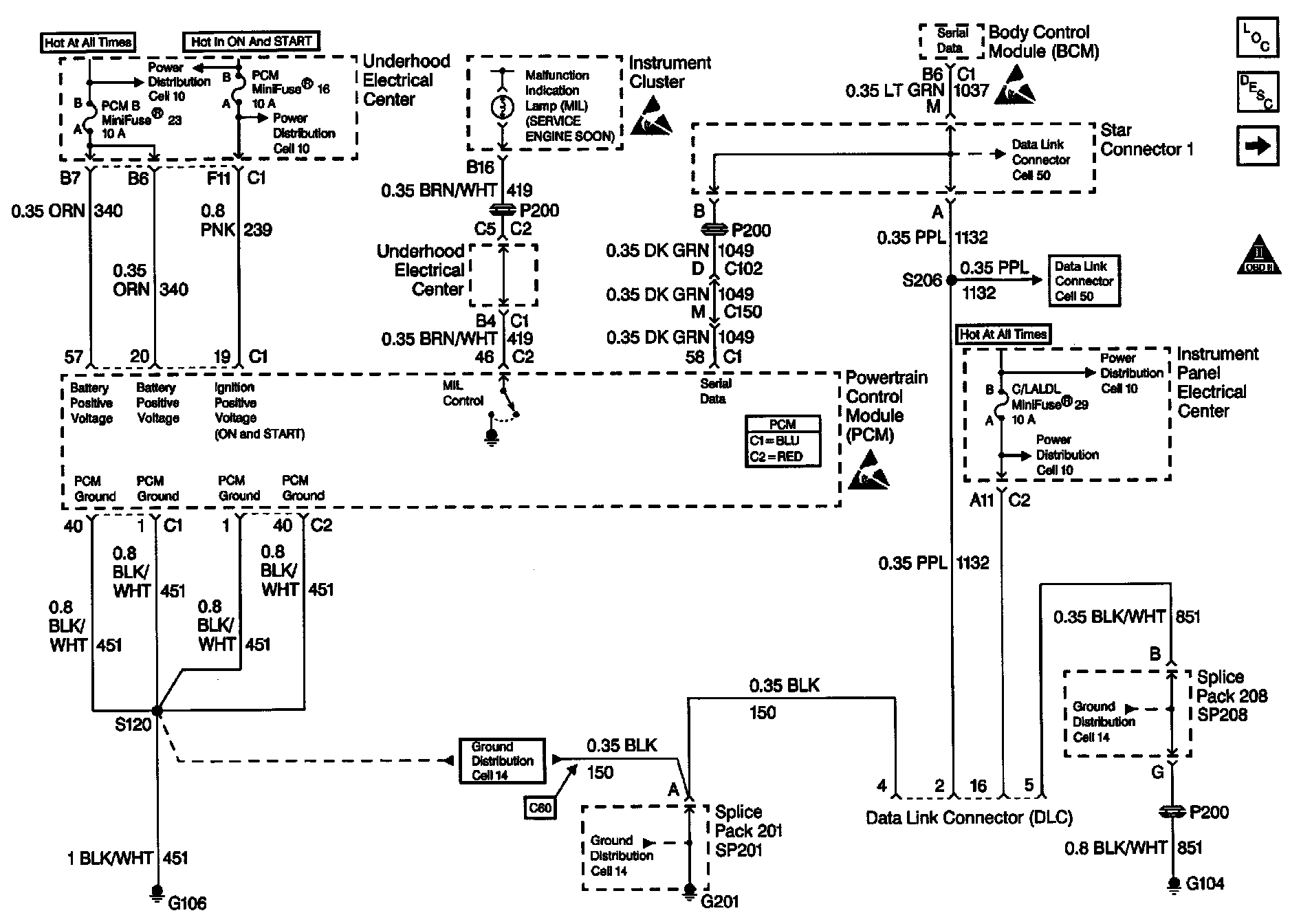

Power, Ground, MIL and DLC

Ignition Coil/Module Cylinders 1 And 3:

Ignition Coil/Module (Cylinders 1 and 3)

Ignition Coil/Module Cylinders 5 And 7:

Ignition Coil/Module (Cylinders 5 and 7)

Ignition Coil/Module Cylinders 2 And 4:

Ignition Coil/Module (Cylinders 2 and 4)

Ignition Coil/Module Cylinders 6 And 8:

Ignition Coil/Module (Cylinders 6 and 8)

CKP, CMP, KS and Traction Control System

Fuel Pump, Fuel Level Sensors and Fuel Tank Pressure Sensor

Fuel Injectors 2, 4, 6, And 8:

Fuel Injectors (2,4,6 and 8)

Fuel Injectors 1, 3, 5, And 7:

Fuel Injectors (1,3,5 and 7)

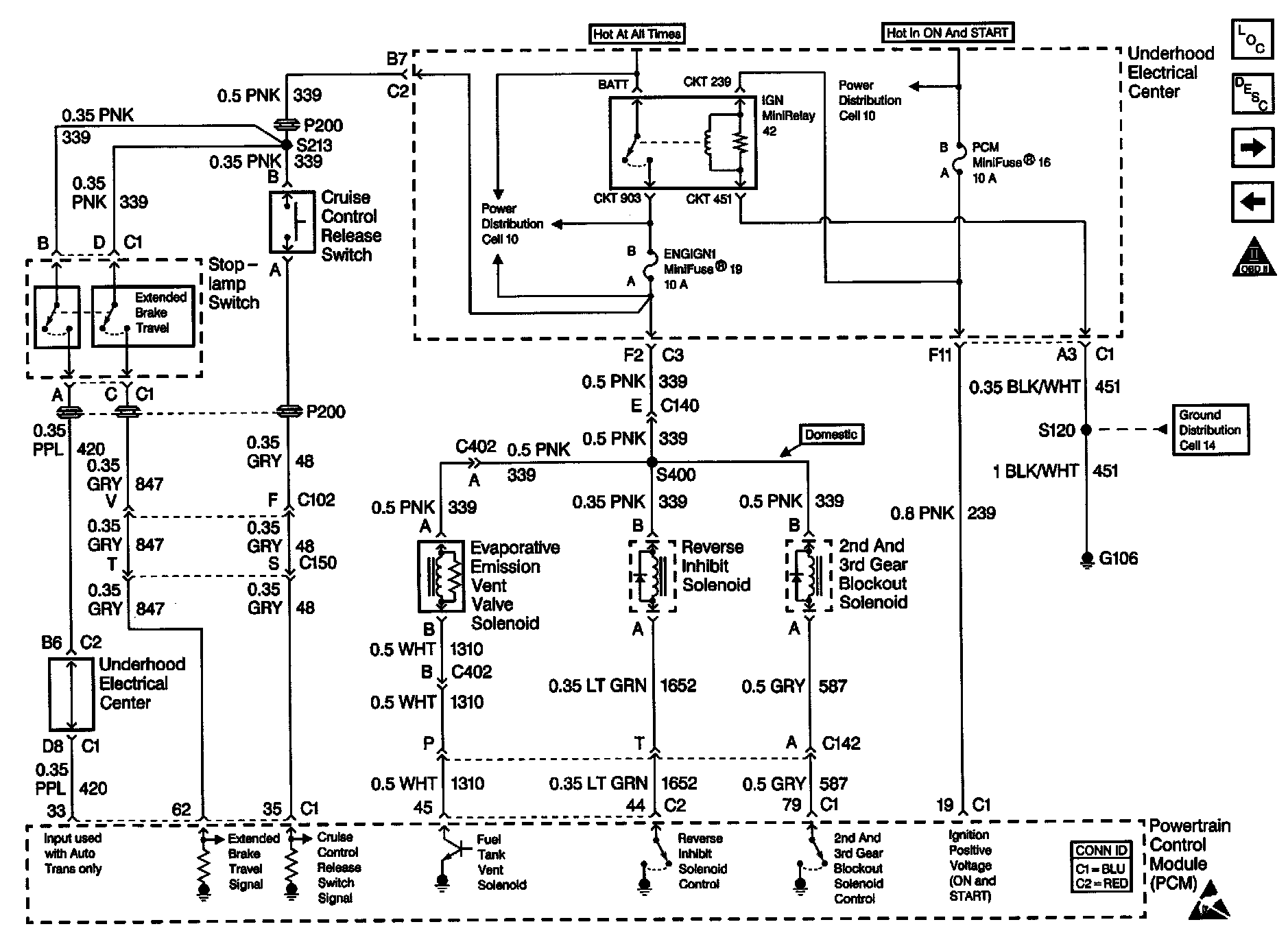

Cruise Control Switch

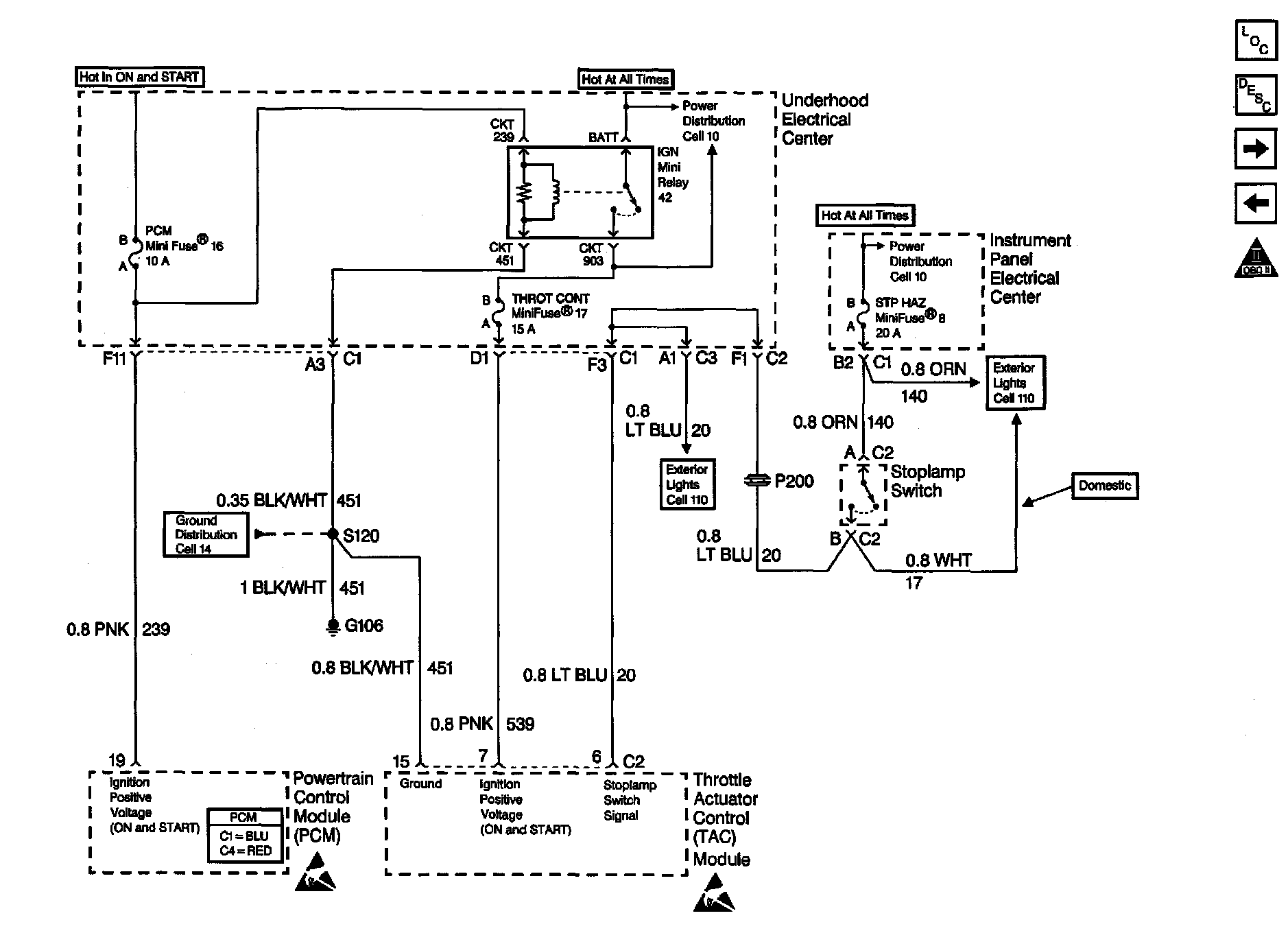

Stop Lamp Switch

TP and APP Sensors

Engine Data Sensors

Heated Oxygen Sensors

[1][2]EVAP and AIR

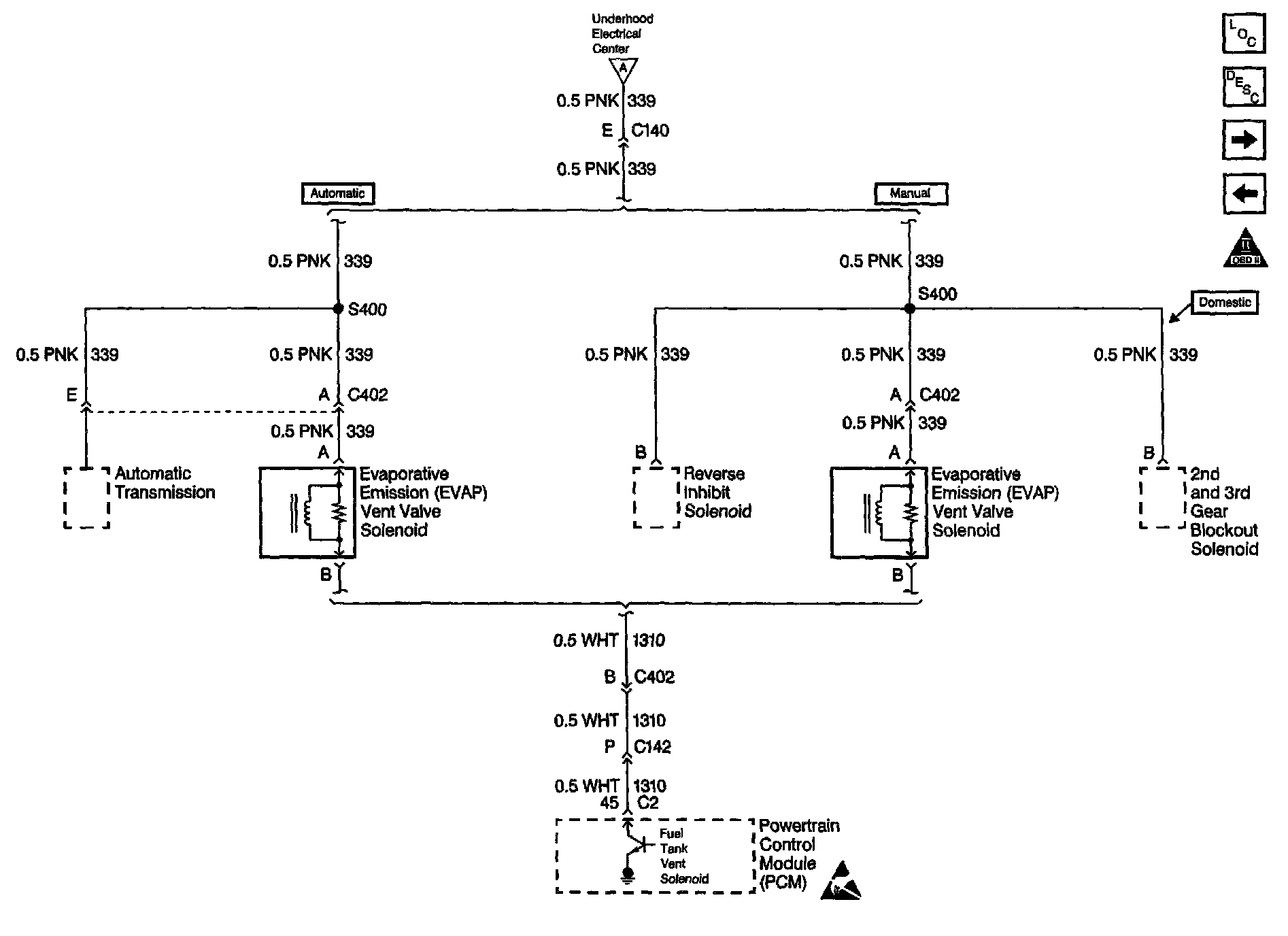

EVAP Vent Valve Solenoid

Manual Transmission Controls

TFT Sensor (Europe) Manual Transmission

TCC Switch

Automatic Transmission Controls

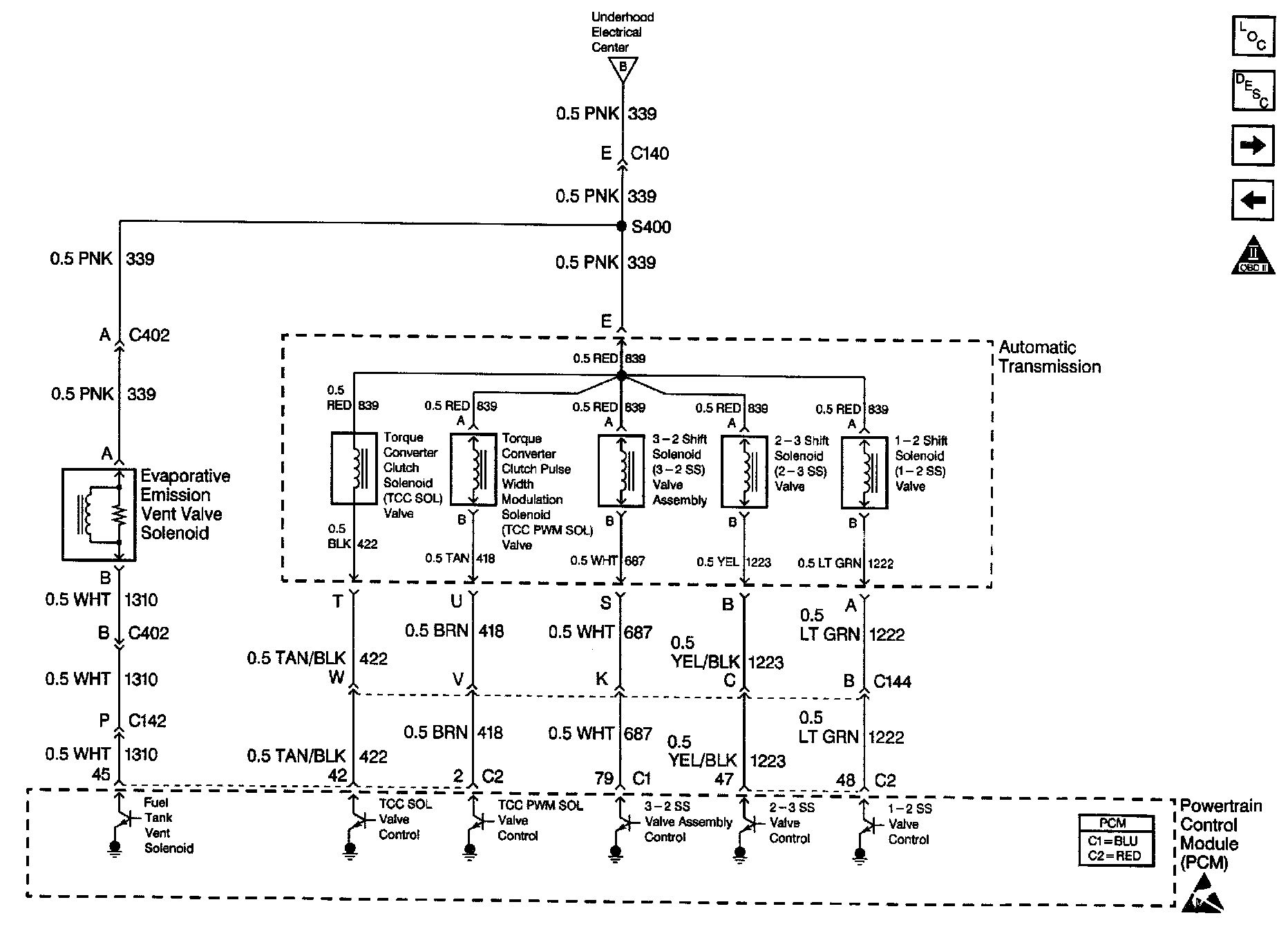

Automatic Transmission Controls and VSS Output

Miscellaneous

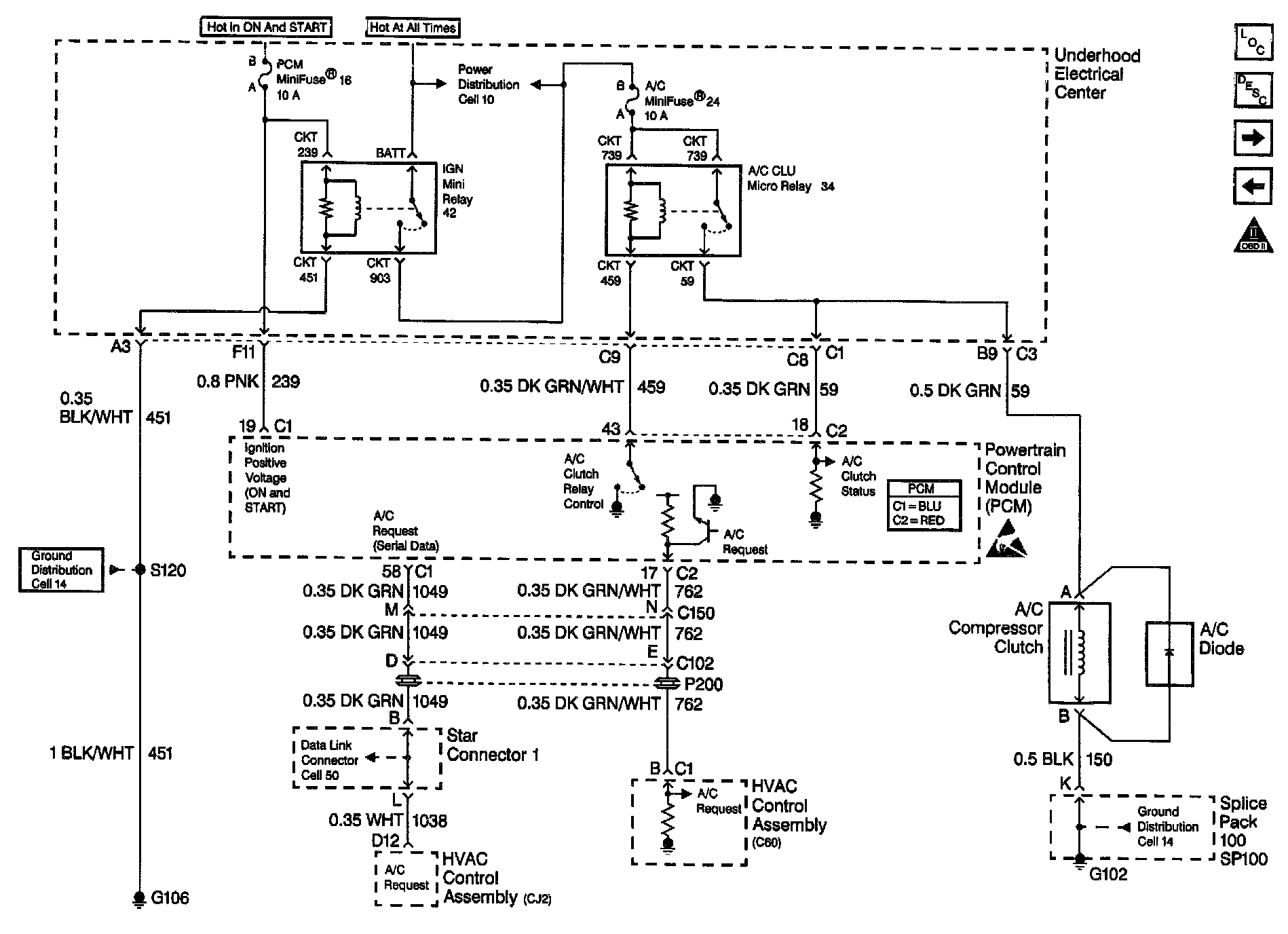

A/C Compressor Controls

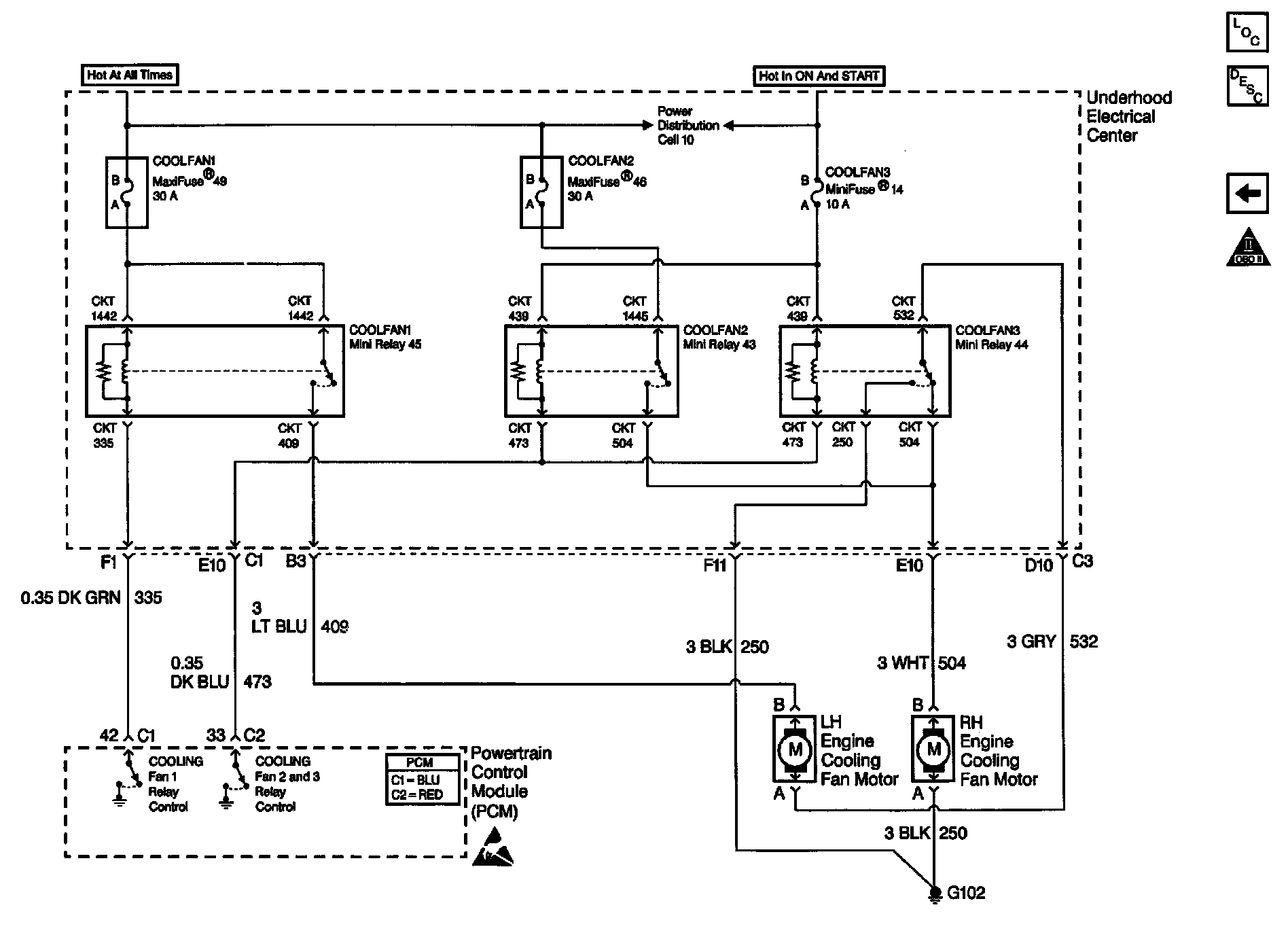

Coolant Fans
