Shoulder Belt Guide Bracket Replacement

Removal Procedure

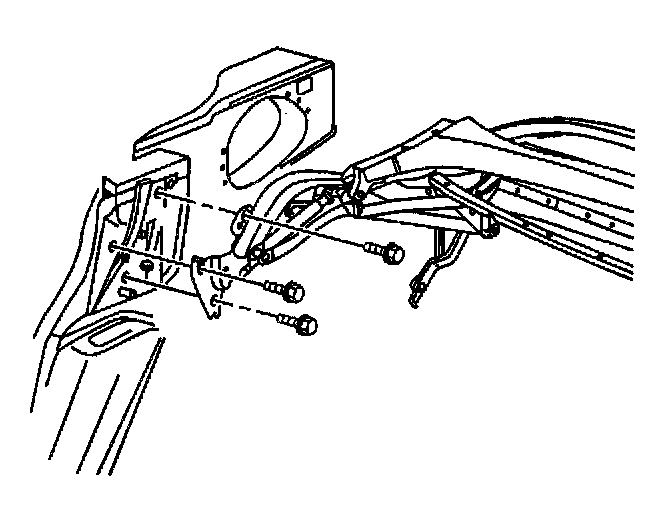

1. Remove the folding top.

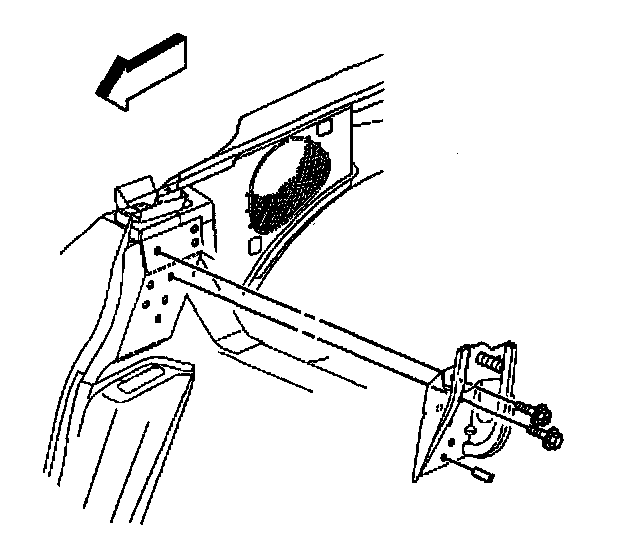

2. Remove the bolts attaching the shoulder harness guide bracket.
3. Remove the bracket.

Installation Procedure

Notice:: Refer to Fastener Notice in Cautions and Notices.

1. install the bolts attaching the shoulder harness guide bracket.

Tighten
Tighten the shoulder harness guide bracket bolts to 27 N.m (20 lb ft).

2. Install the folding top.
