Battery Replacement

REMOVAL PROCEDURE





CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Disconnect the positive battery cable.

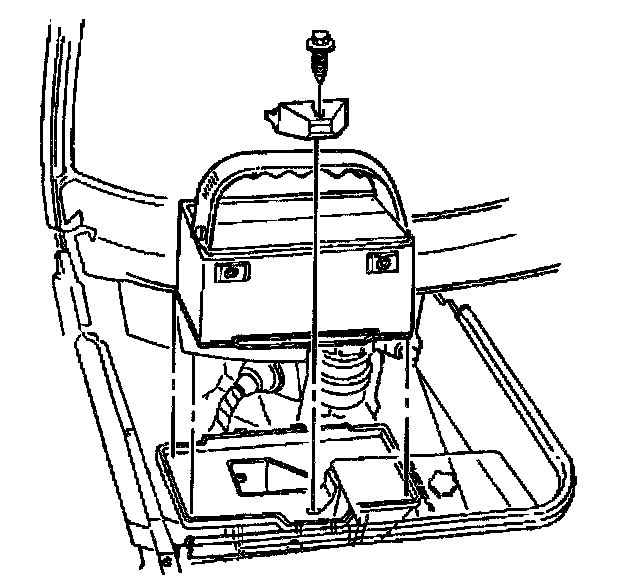

3. Remove the battery hold down retainer bolt.
4. Remove the battery retainer.
5. Remove the battery with the insulator from the tray.

INSTALLATION PROCEDURE




1. Clean the battery hold down retainer.
2. Inspect that the retainer is in sound condition.
3. Install the battery with the insulator into the tray.
4. Install the battery retainer.

NOTE: Refer to Fastener Notice in Cautions and Notices.

5. Install the retainer bolt.

Tighten
Tighten the bolt to 18 N.m (13 lb ft).




6. Connect the positive battery cable.

Tighten
Tighten the positive battery cable bolt to 15 N.m (11 lb ft).

7. Connect the negative battery cable.

Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

8. Program the Transmitters. Refer to Transmitter Programming/Synchronization in Keyless Entry. Service and Repair
