Component Locations

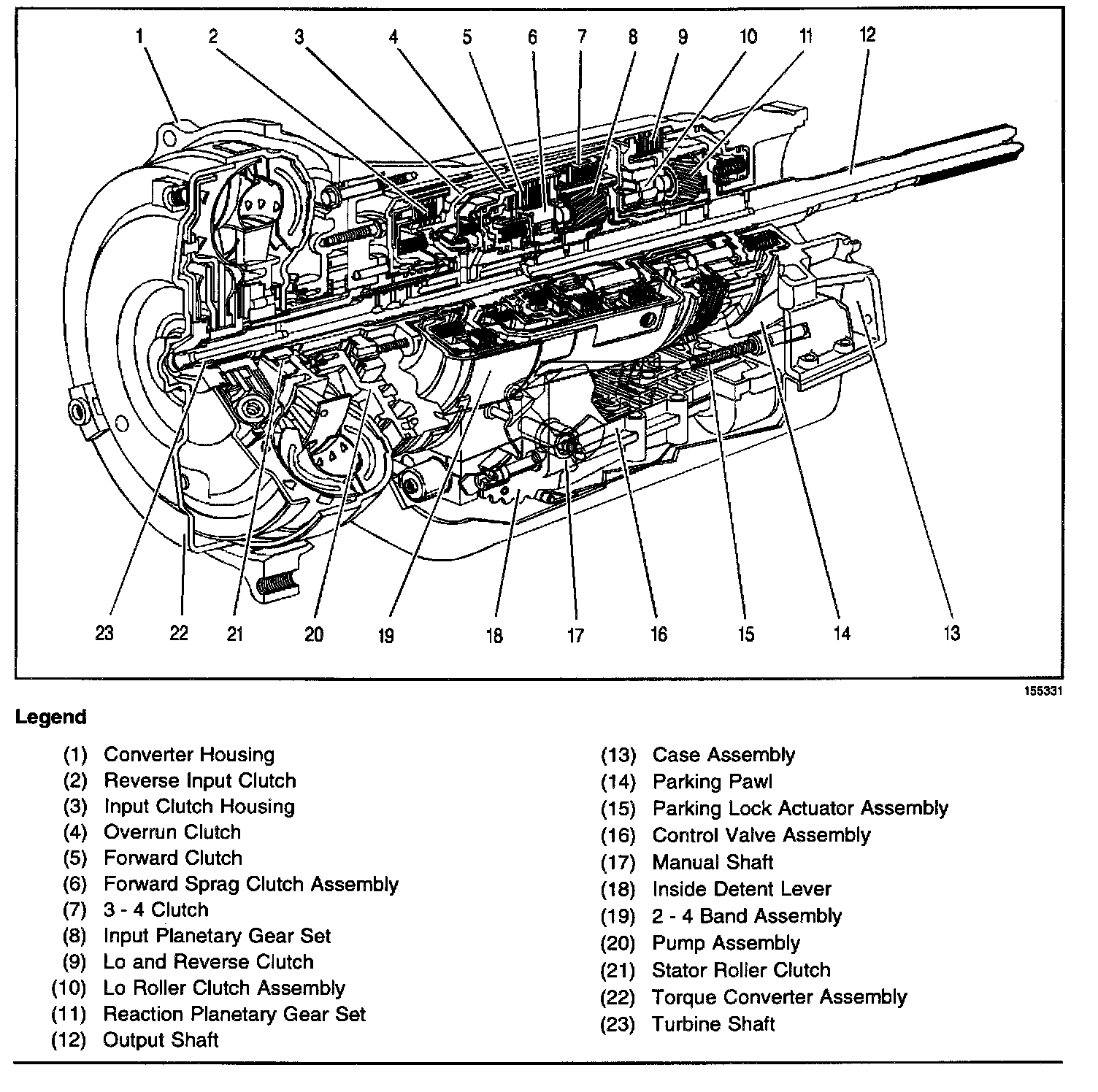

Transmission Major Component Location

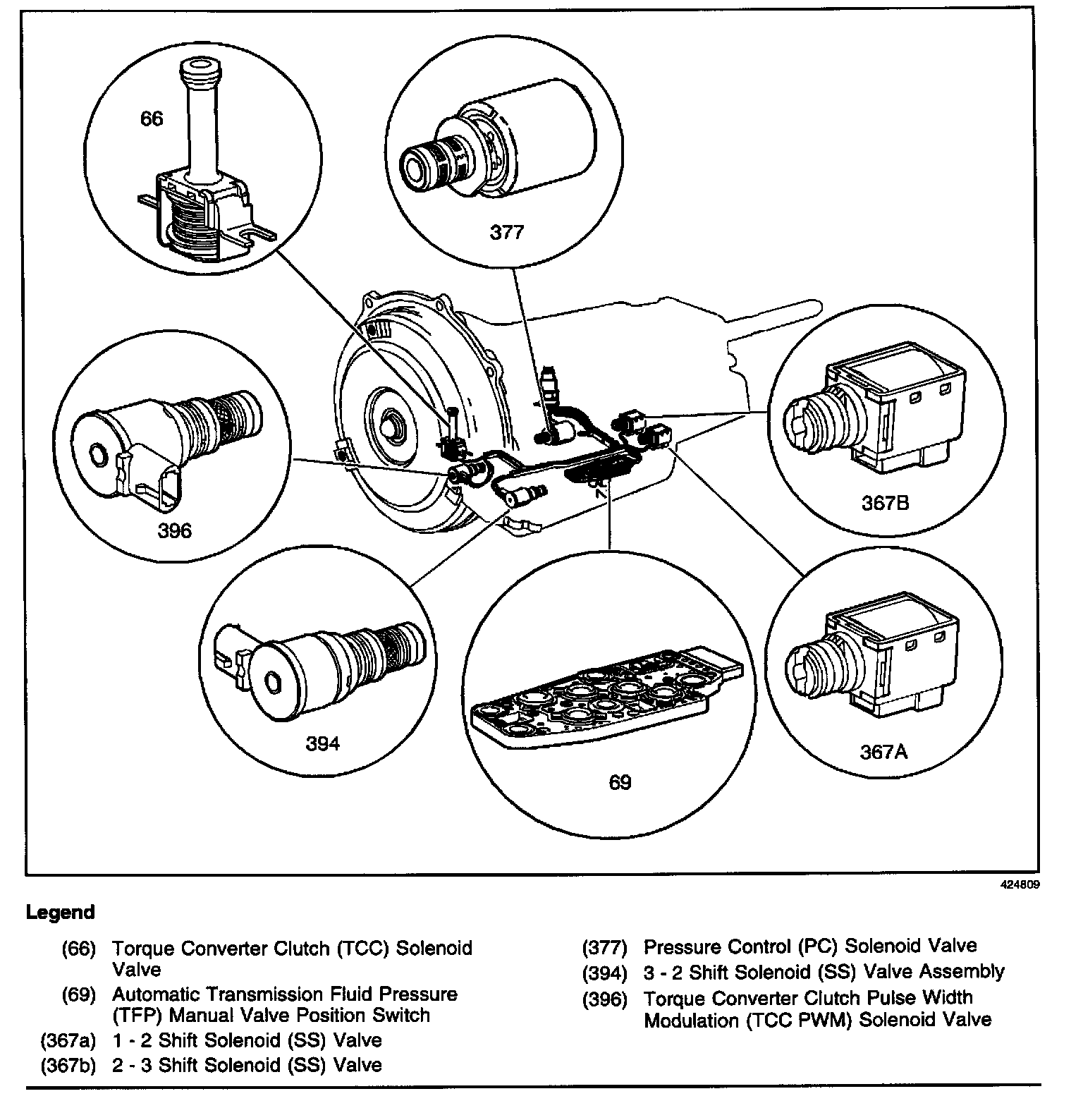

Electronic Component Locations

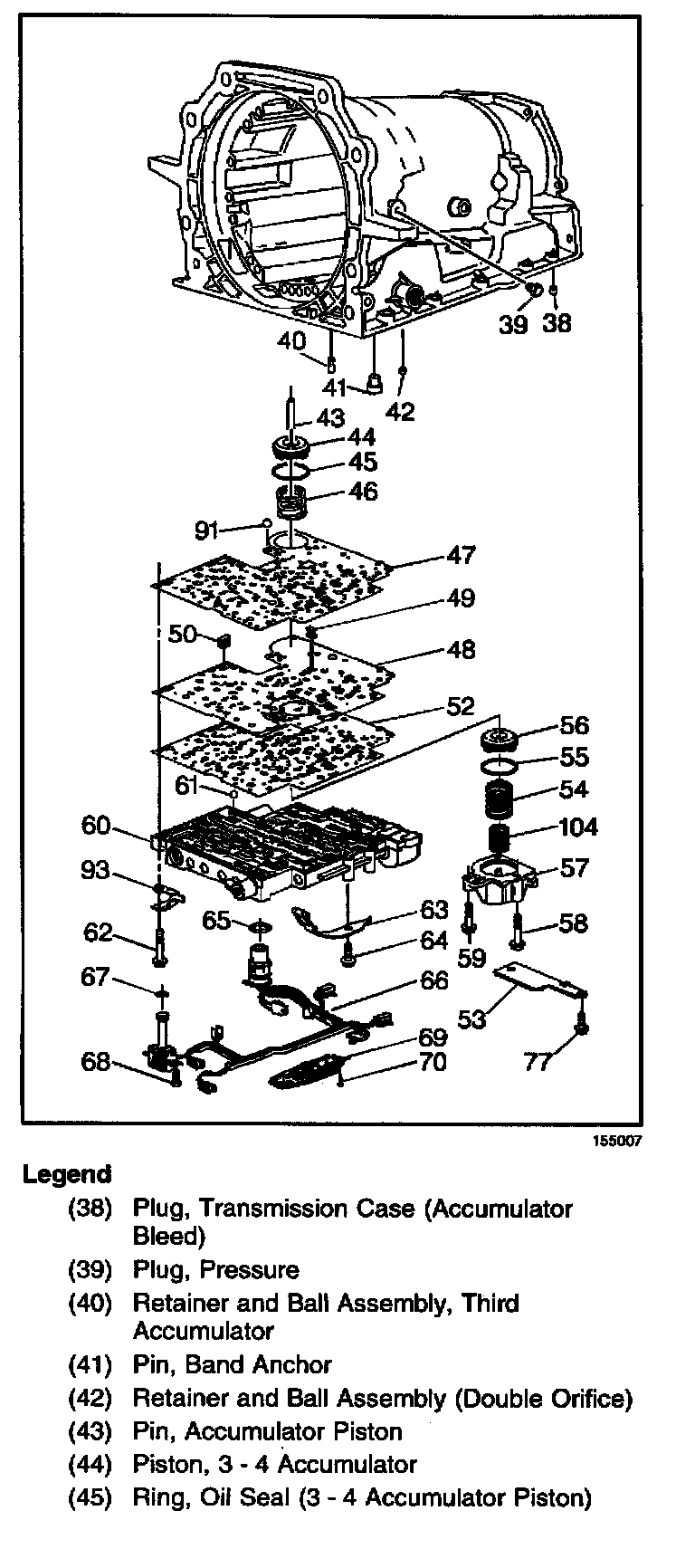

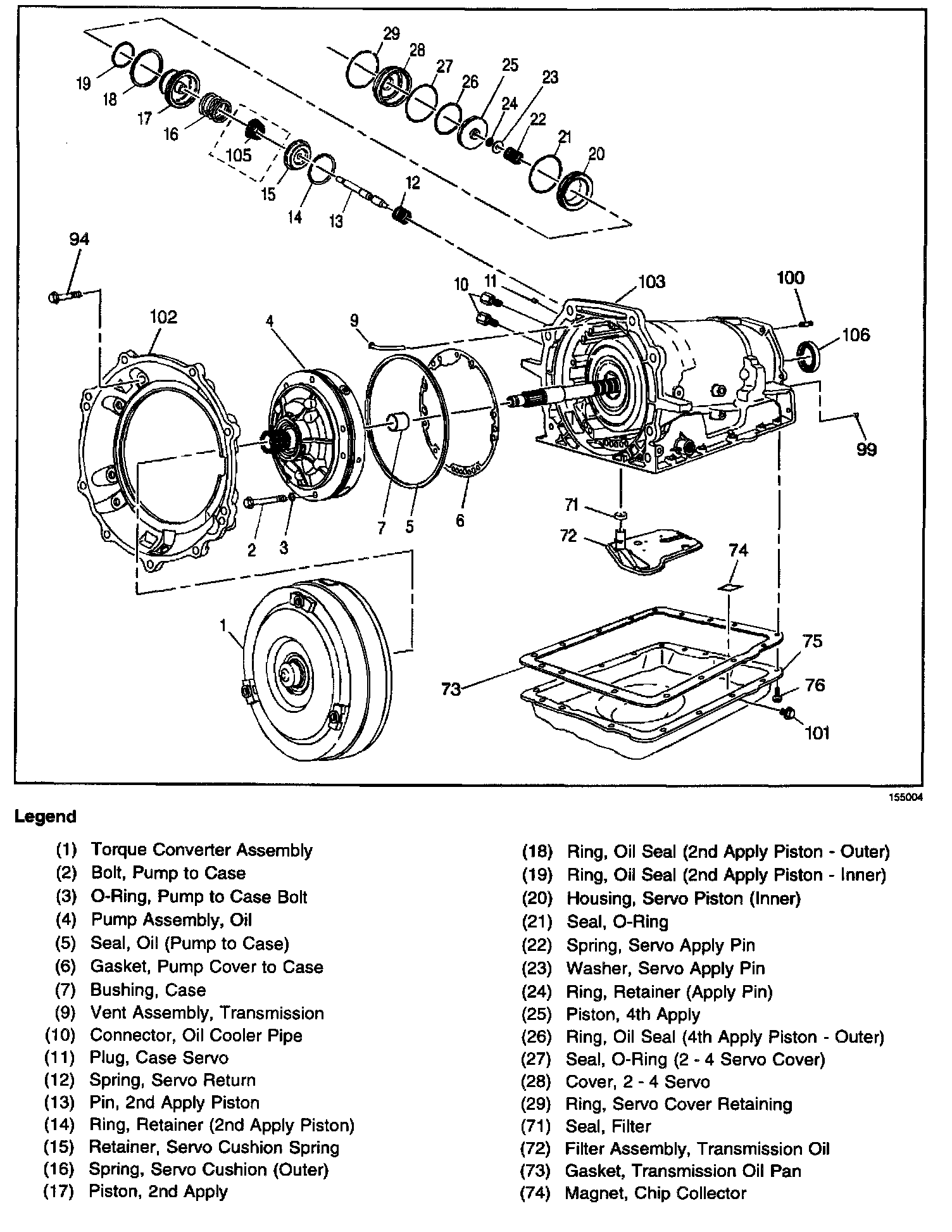

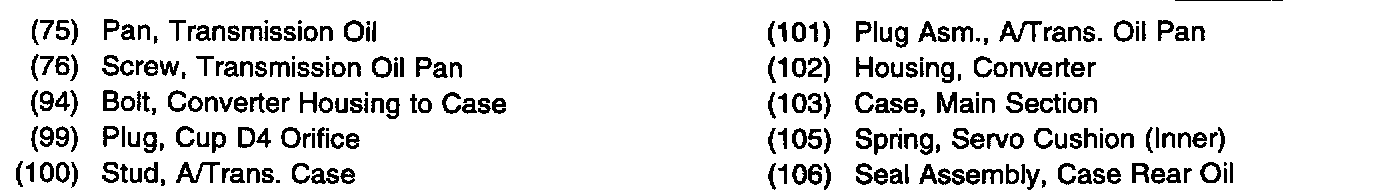

Case and Associated Parts (1 of 2)
Case and Associated Parts (2 of 2)

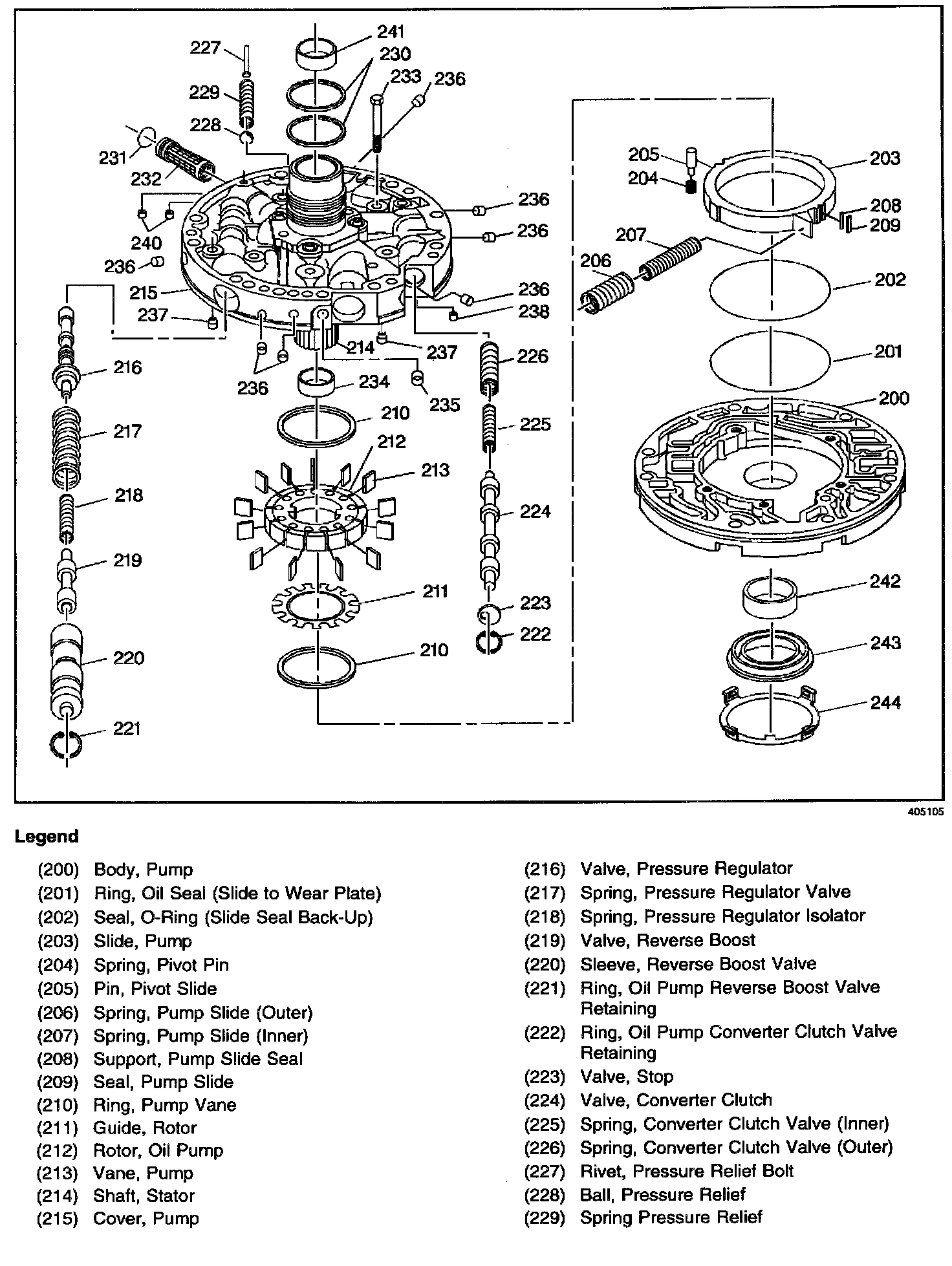

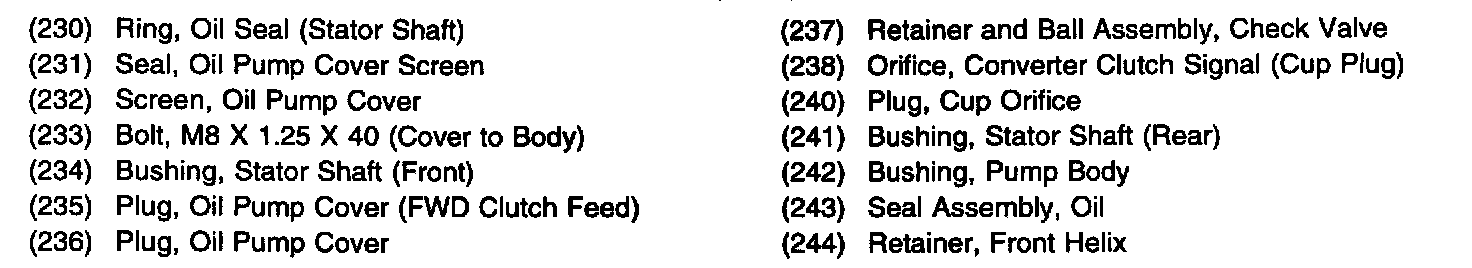

Oil Pump Assembly

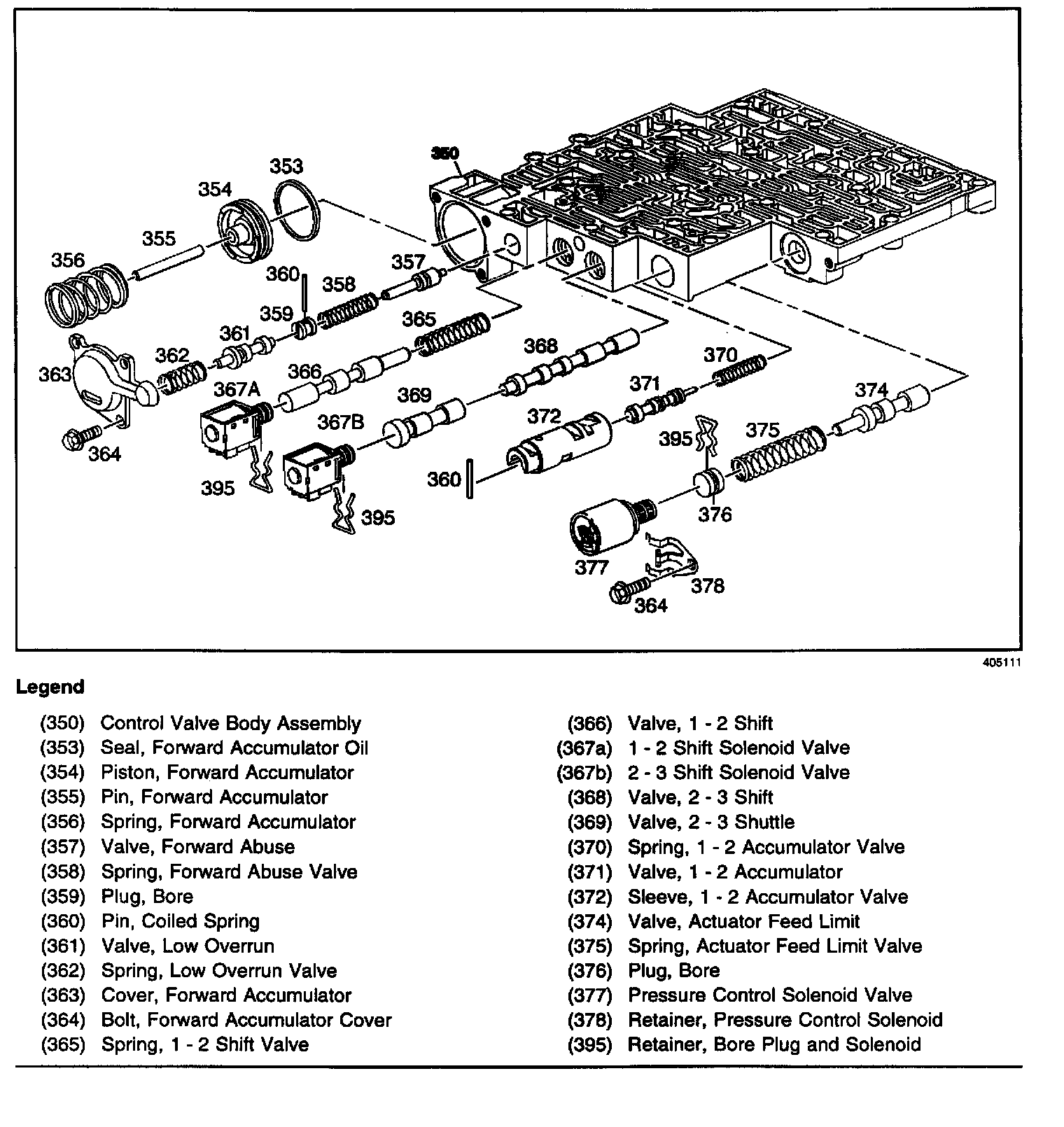

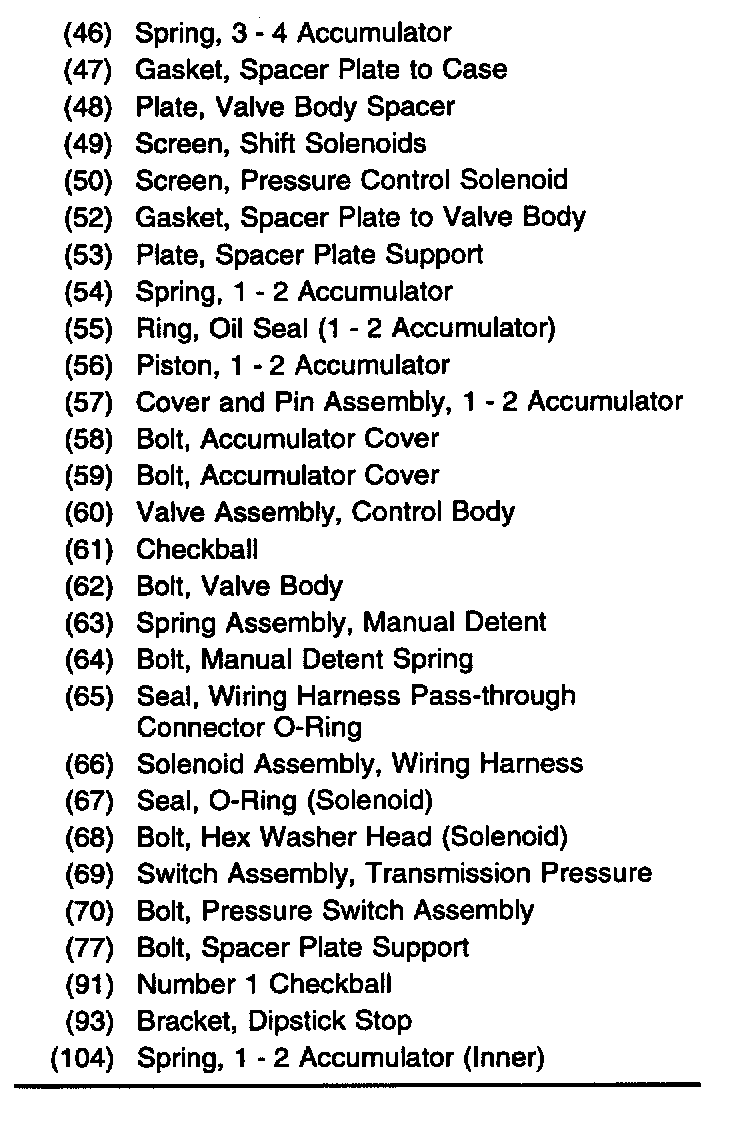

Control Valve Body Assembly (1 of 2)
Control Valve Body Assembly (2 of 2)

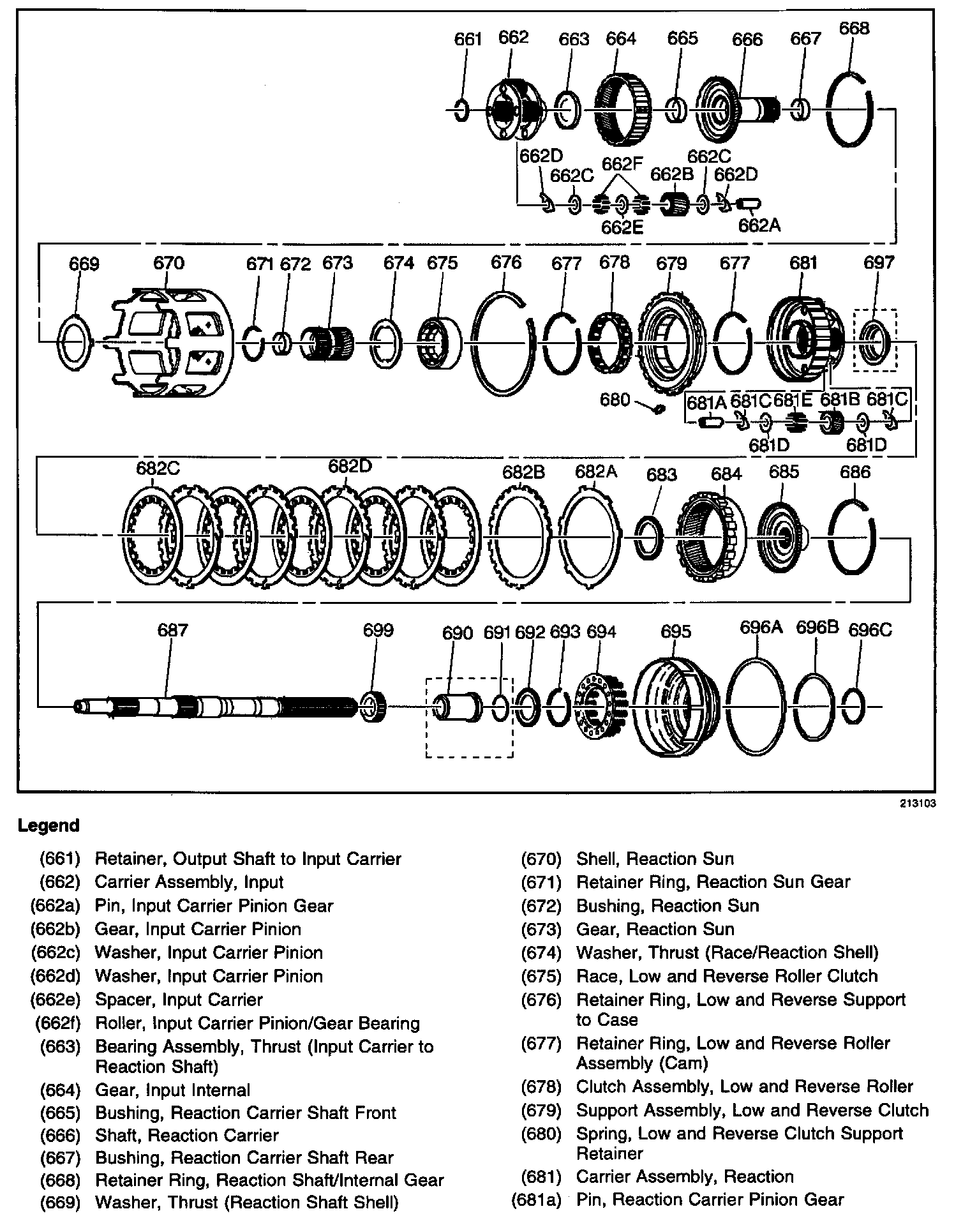

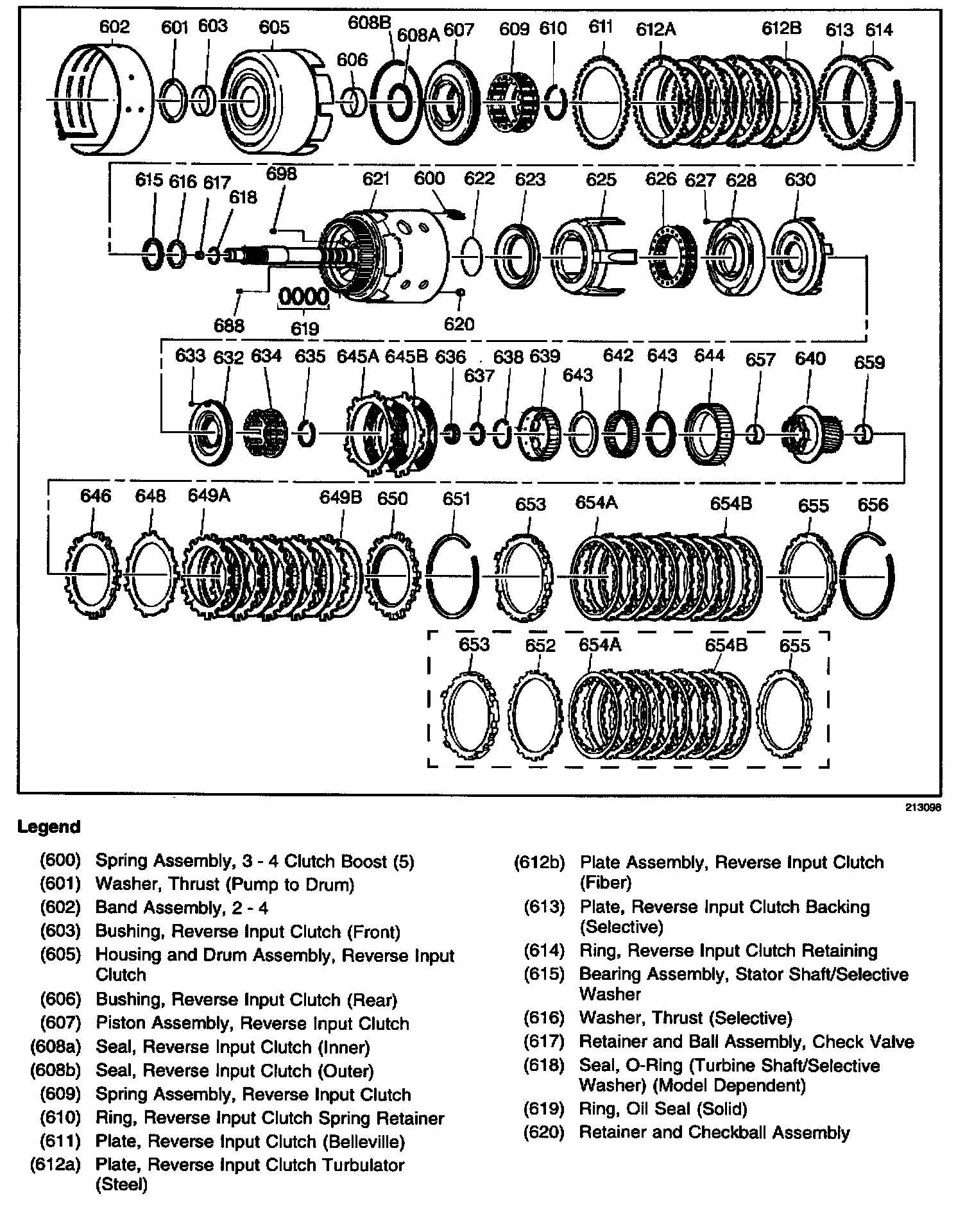

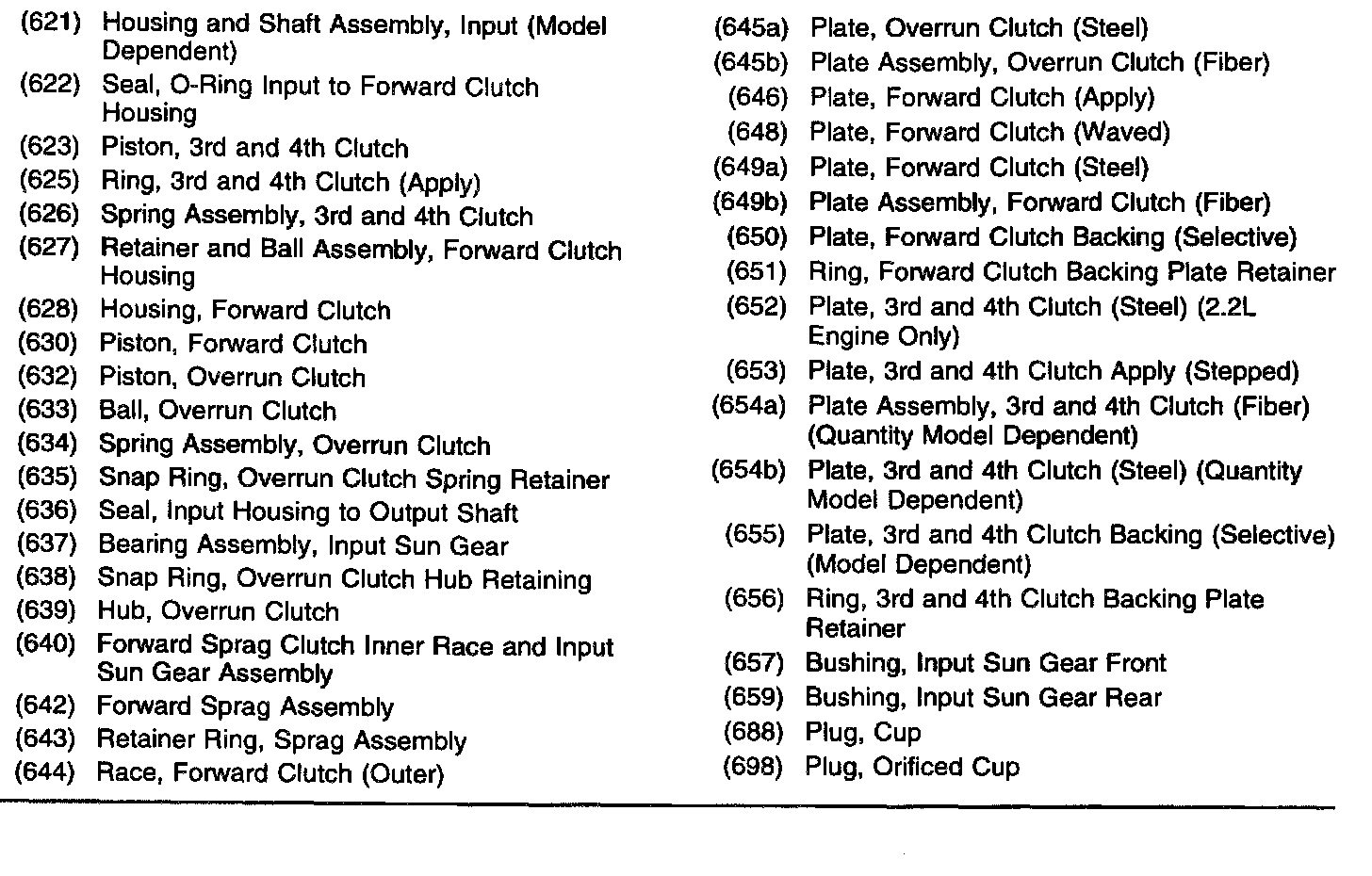

Internal Parts (1 of 2)

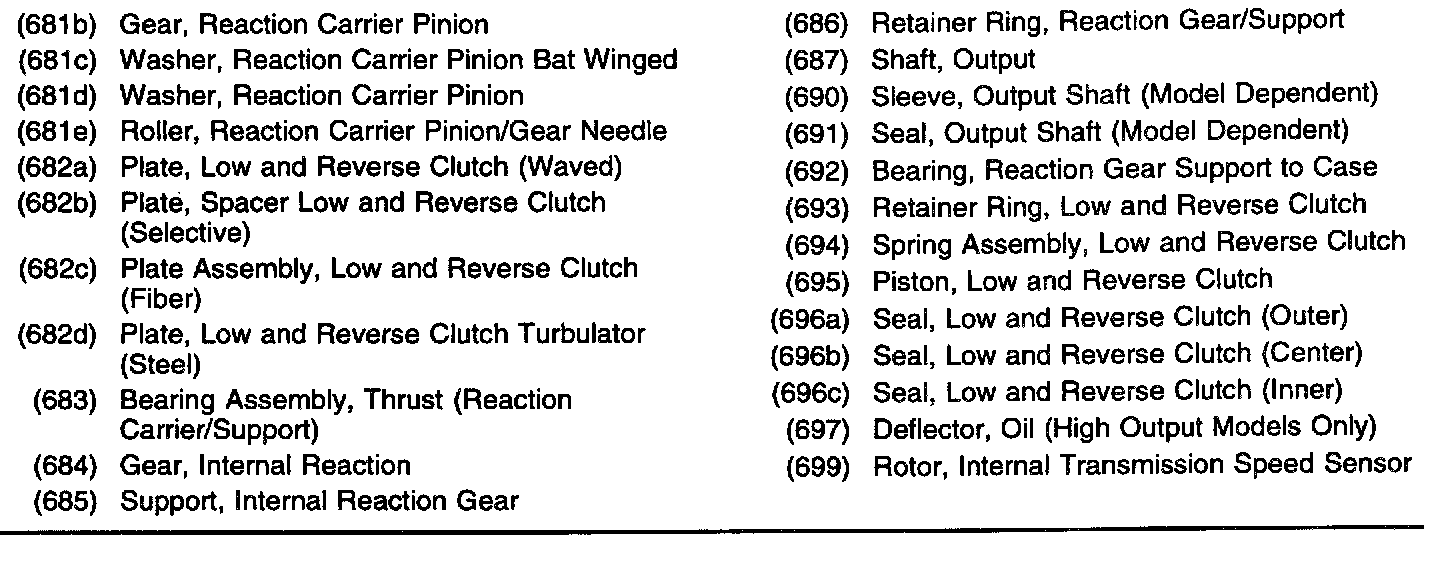

Internal Parts (2 of 2)

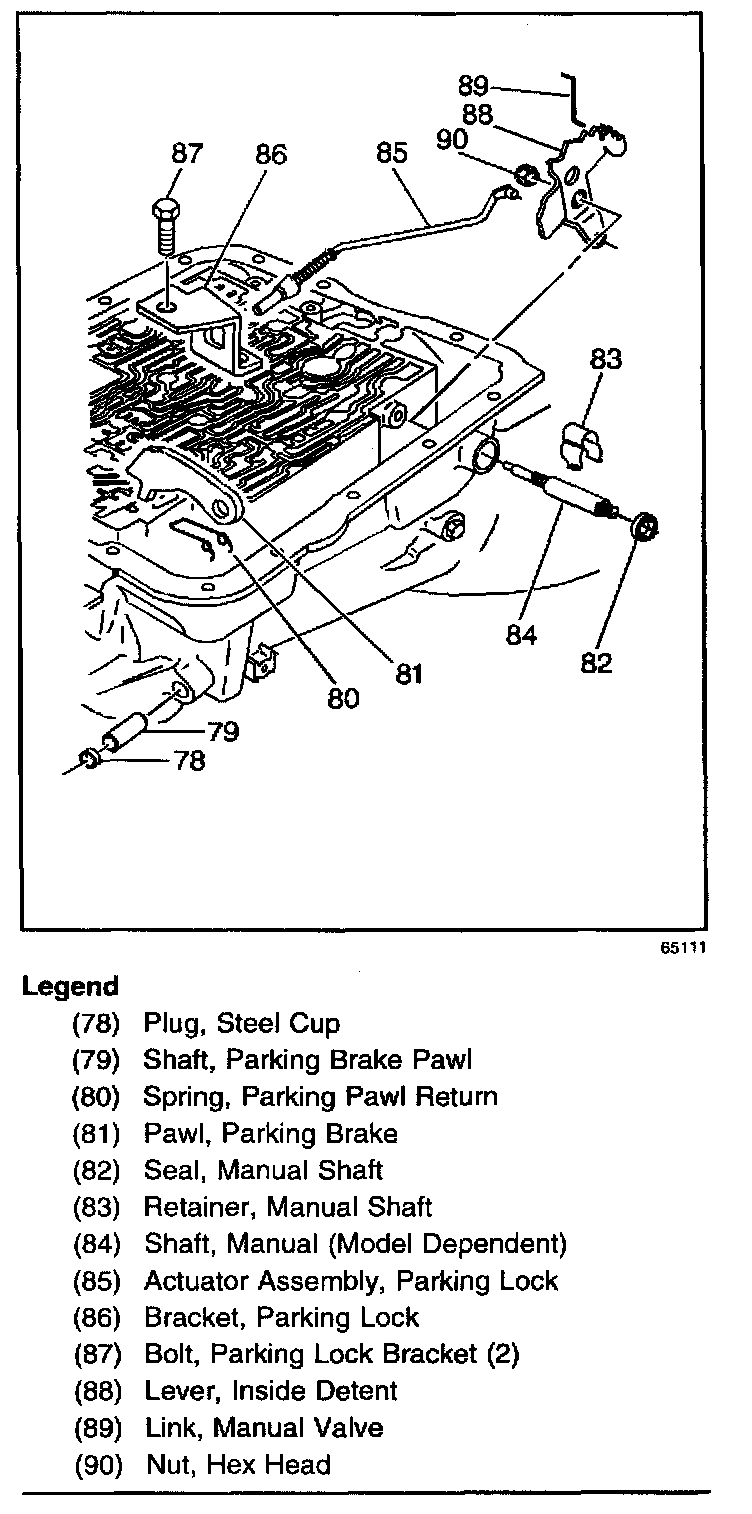

Parking Lock and Manual Shift Shaft Assembly

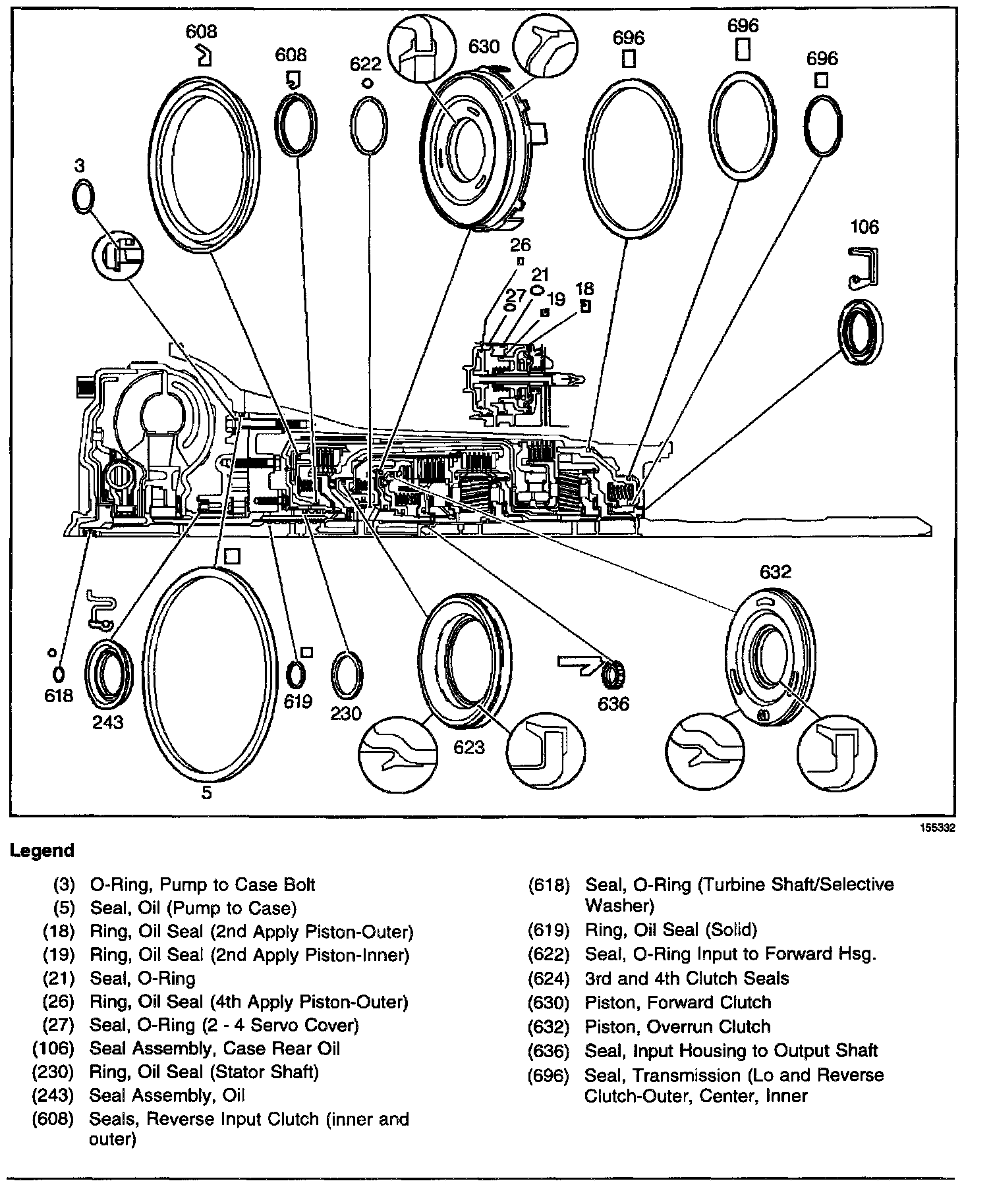

Seal Locations

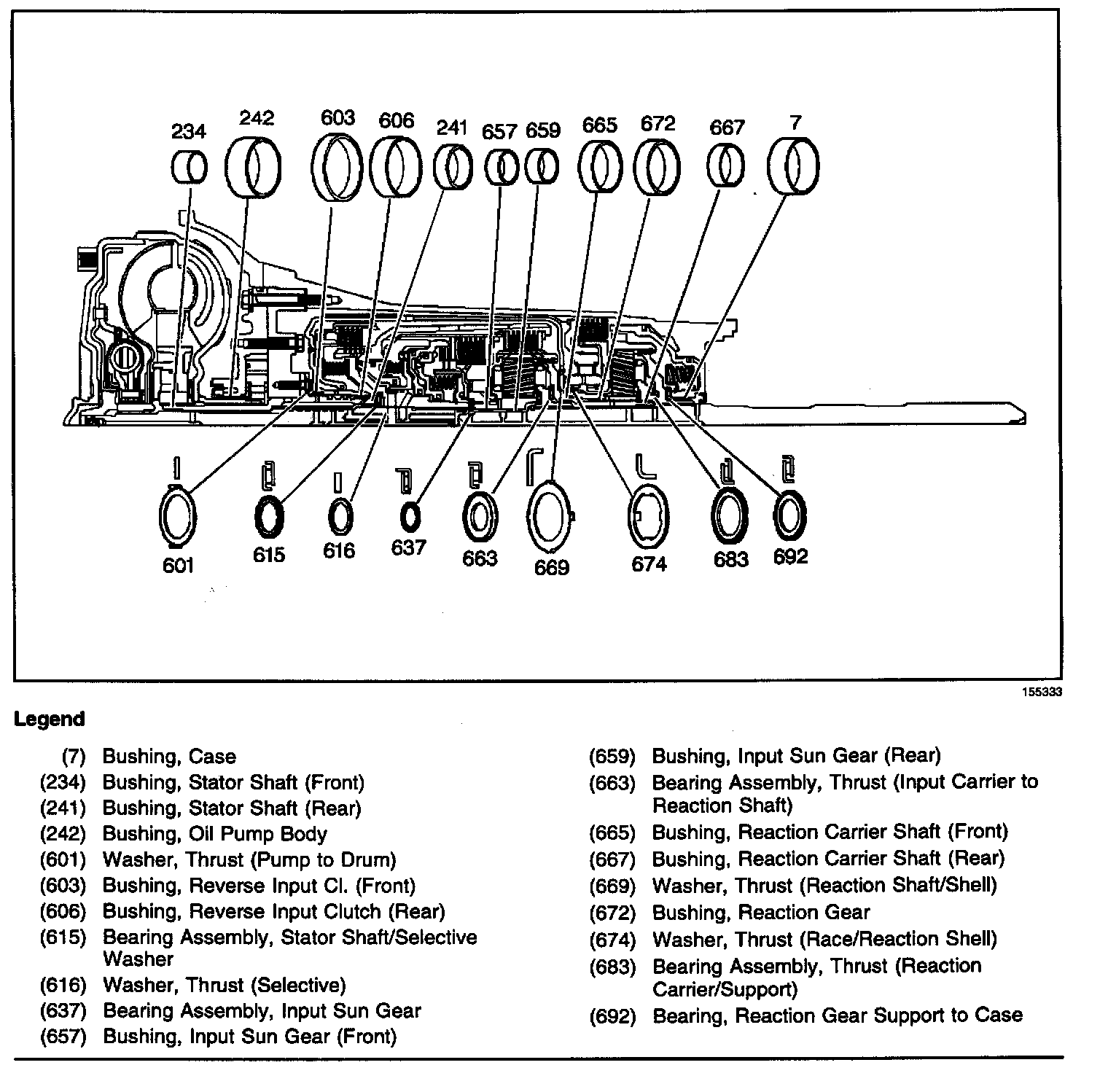

Bearings and Bushings

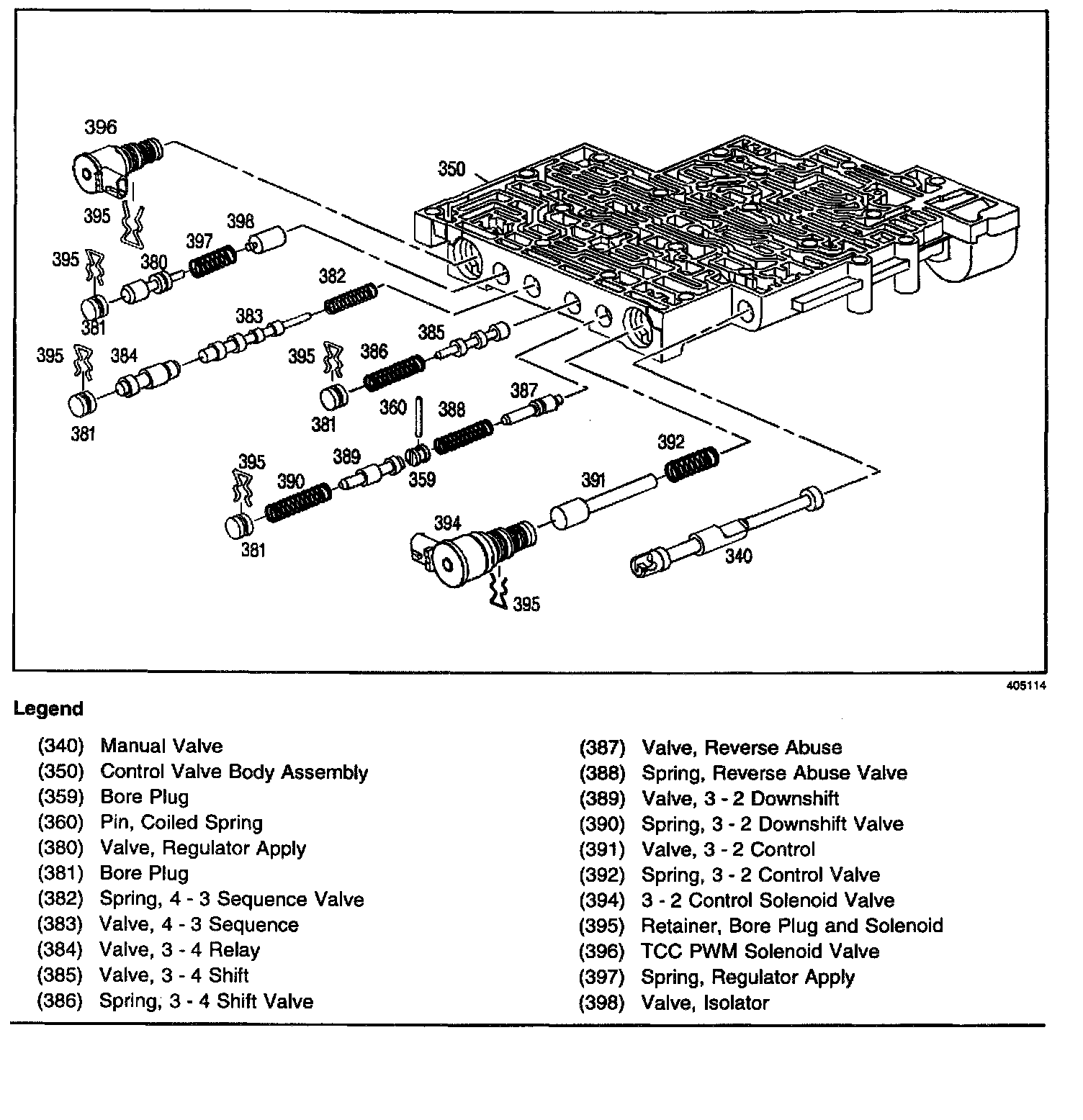

Valve Trains

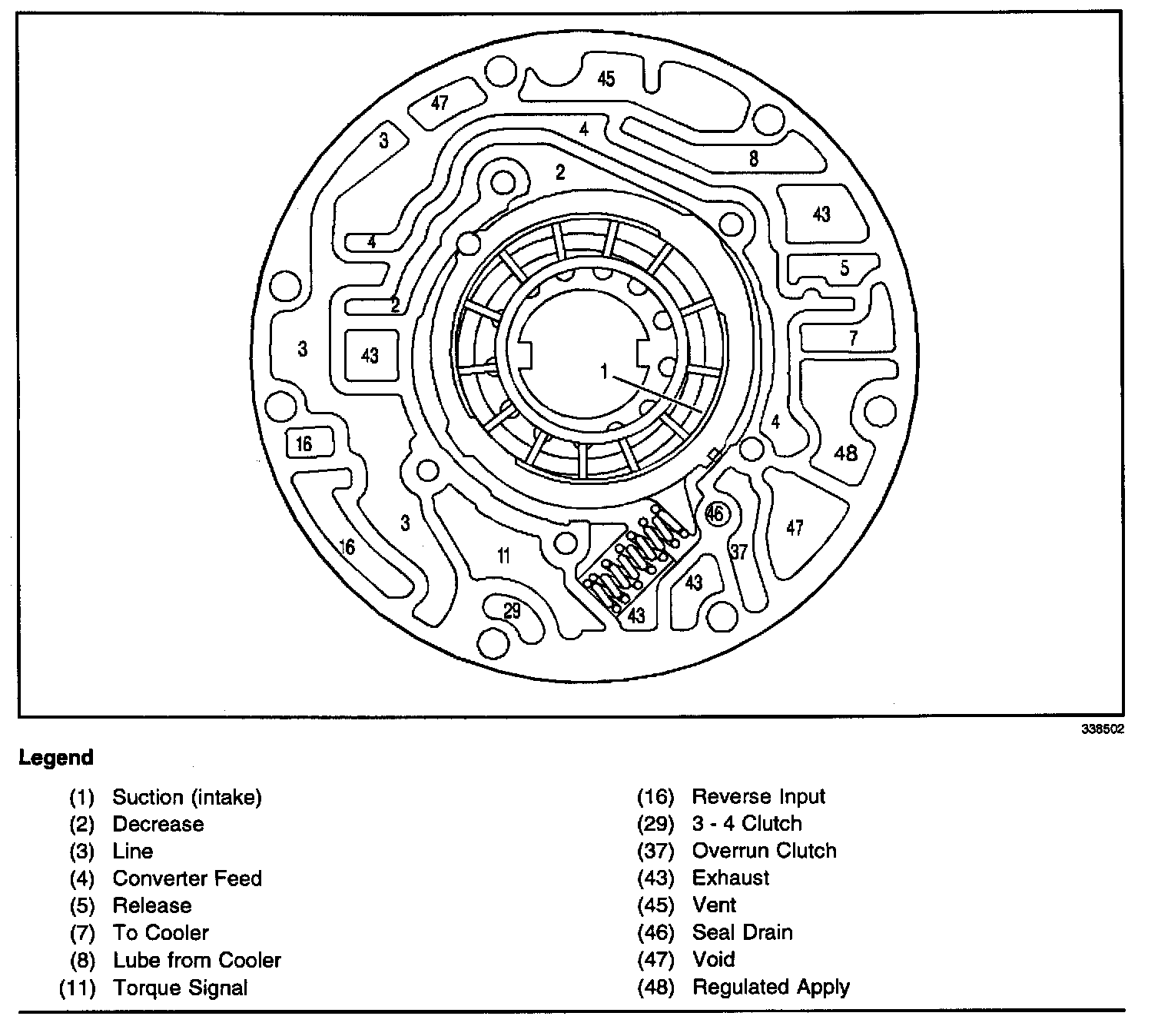

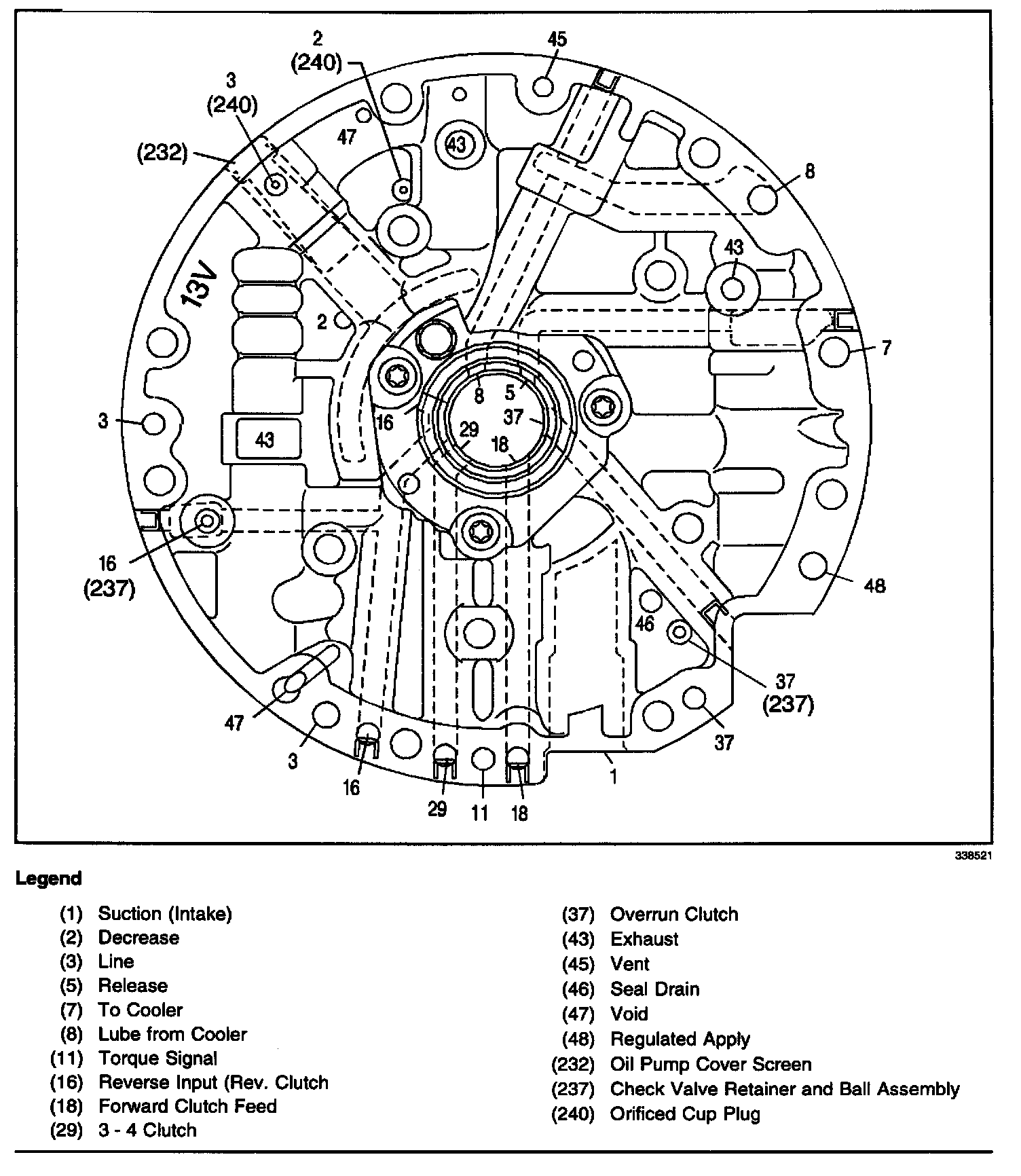

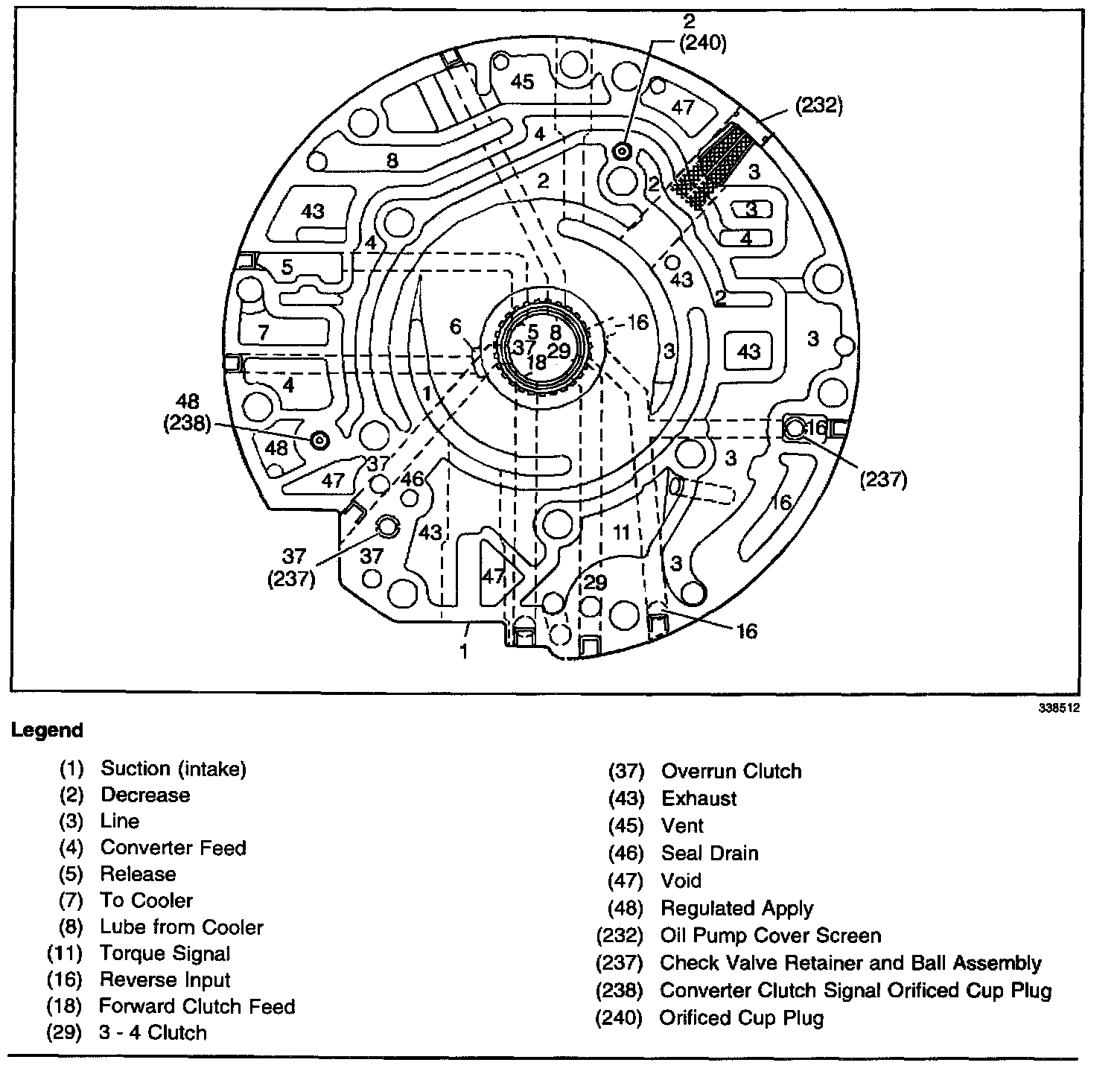

Pump Bode Fluid Passages (Pump Cover Side)
Pump Cover Fluid Passages (Pump Body Side)
Pump Cover Fluid Passages (Case Side)

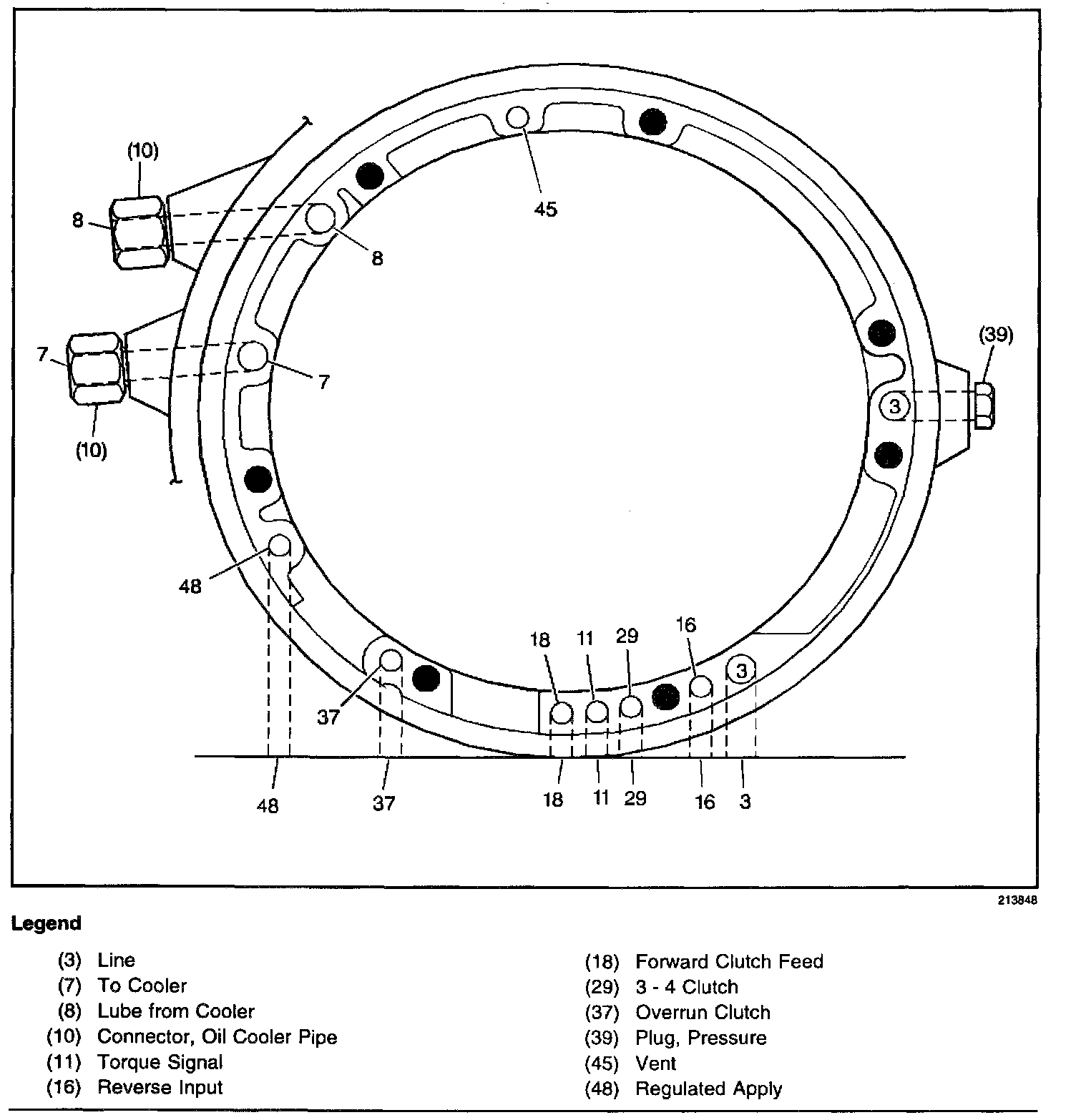

Case Fluid Passages (Pump Cover Side)

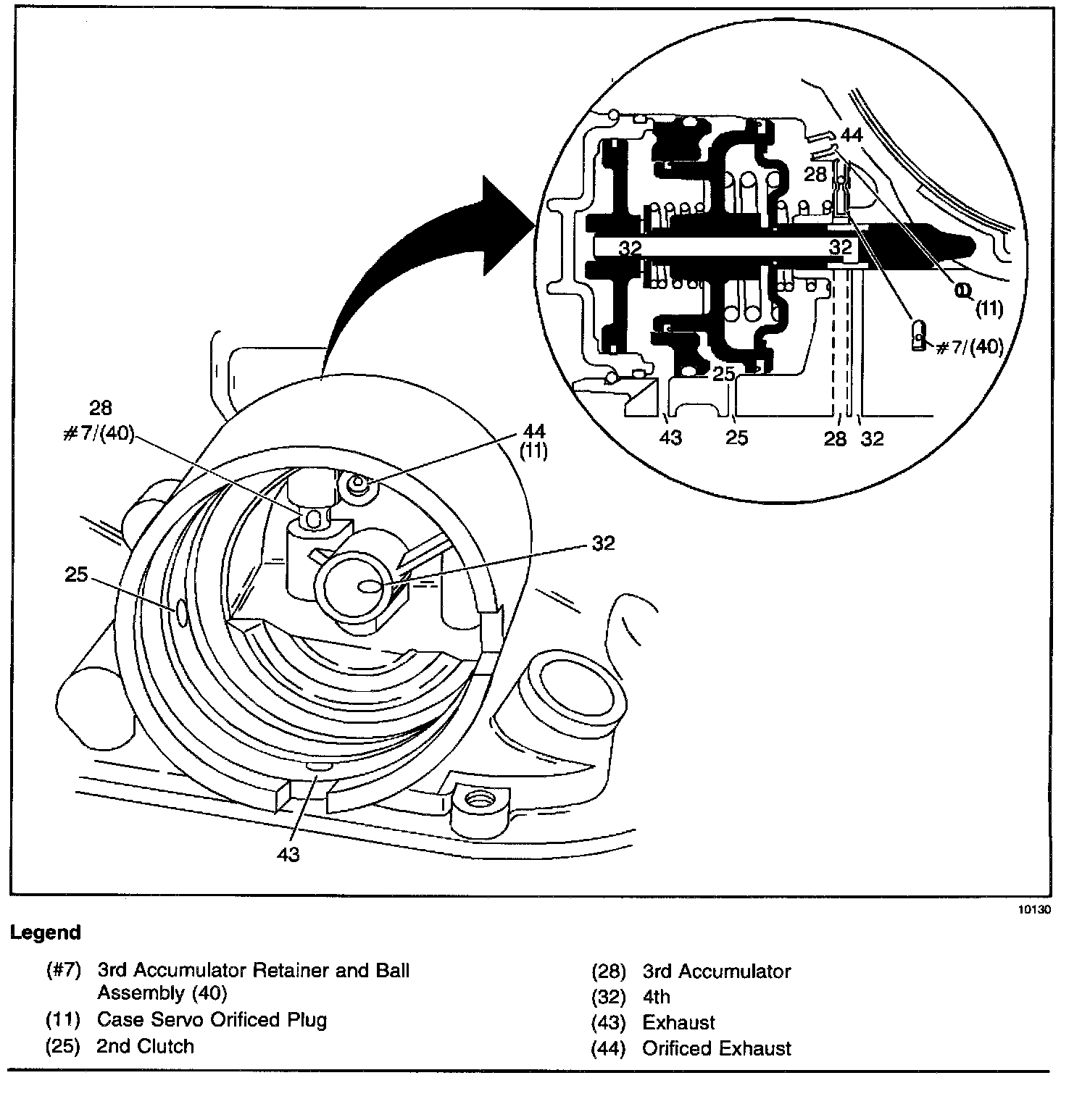

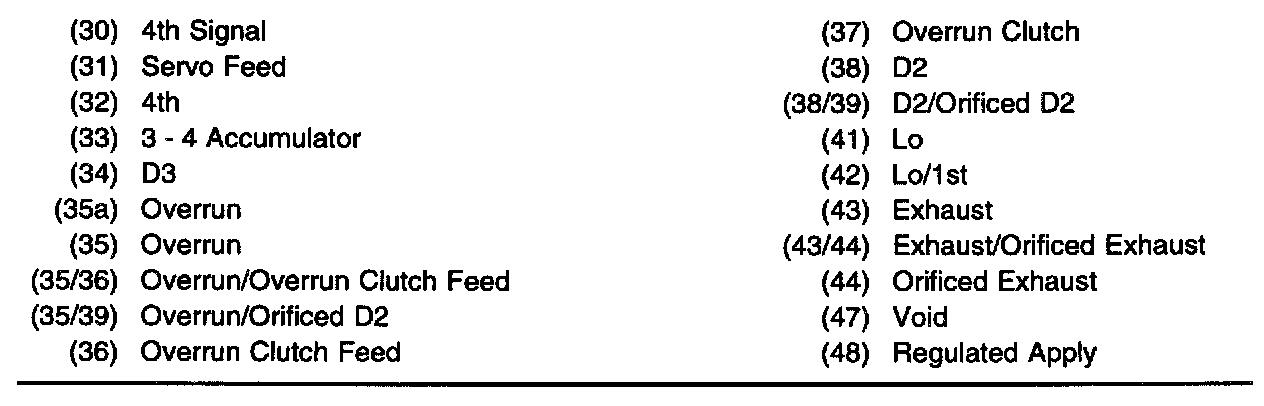

Case Fluid Passages (Control Valve Body Side)

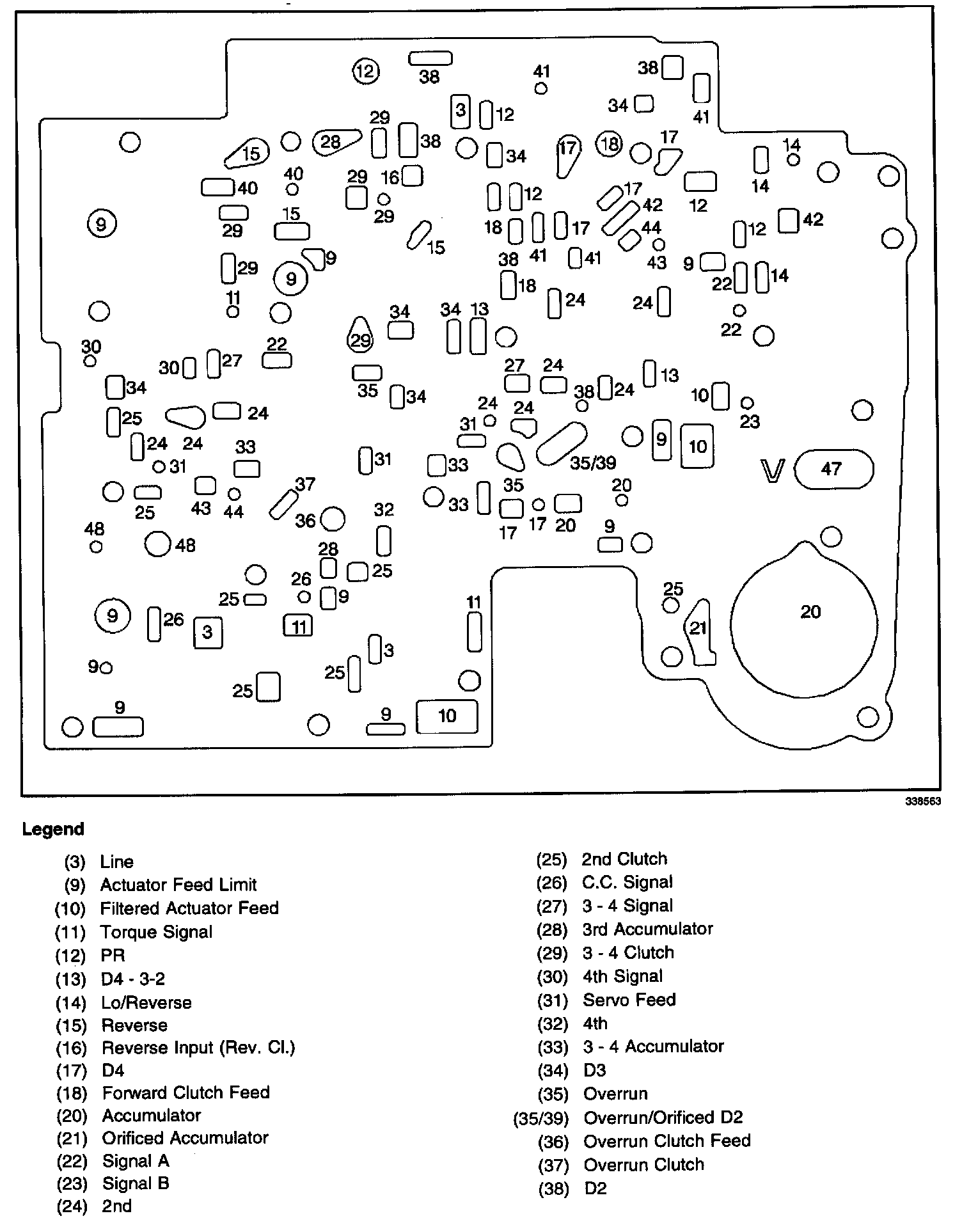

Spacer Plate to Case Gasket

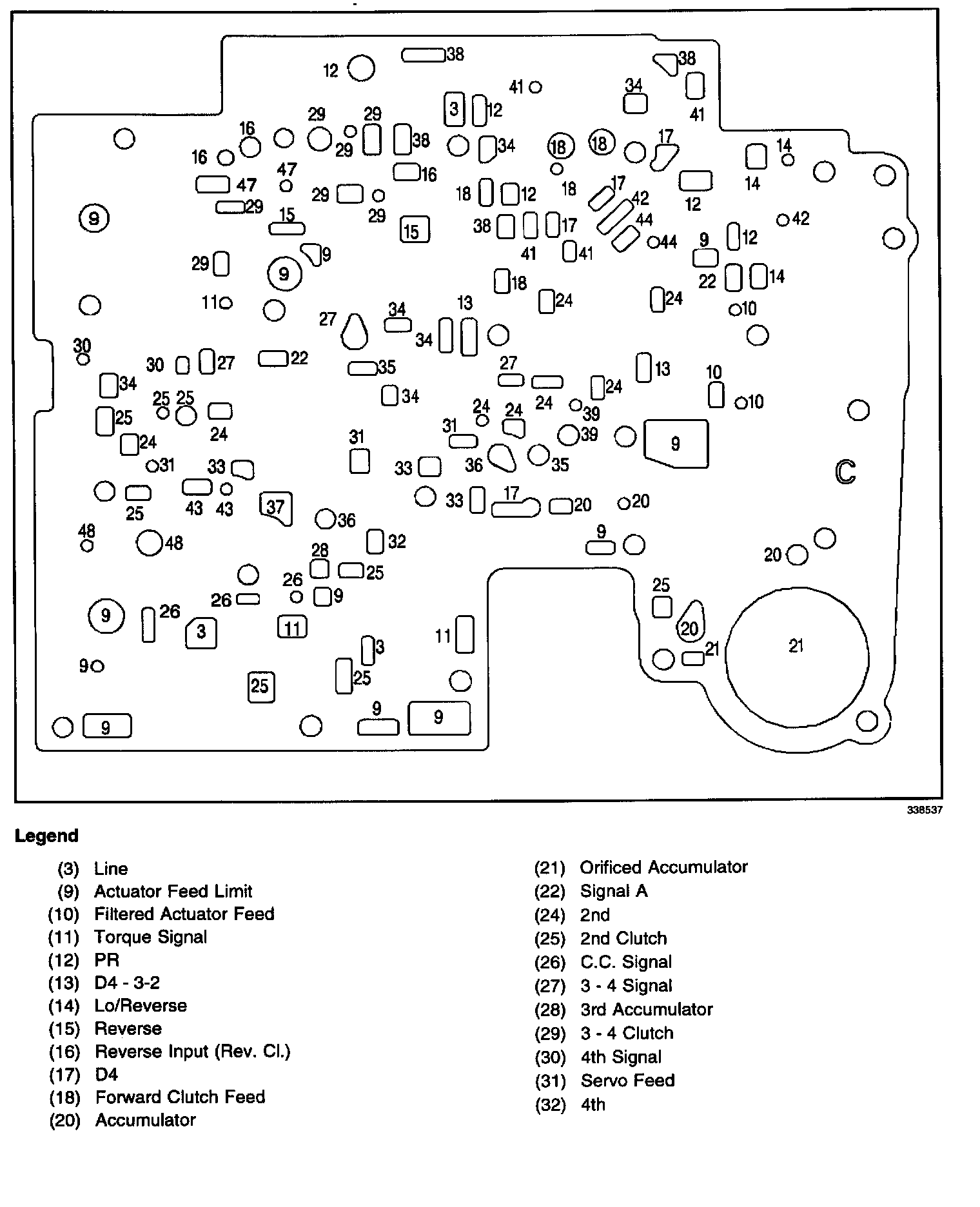

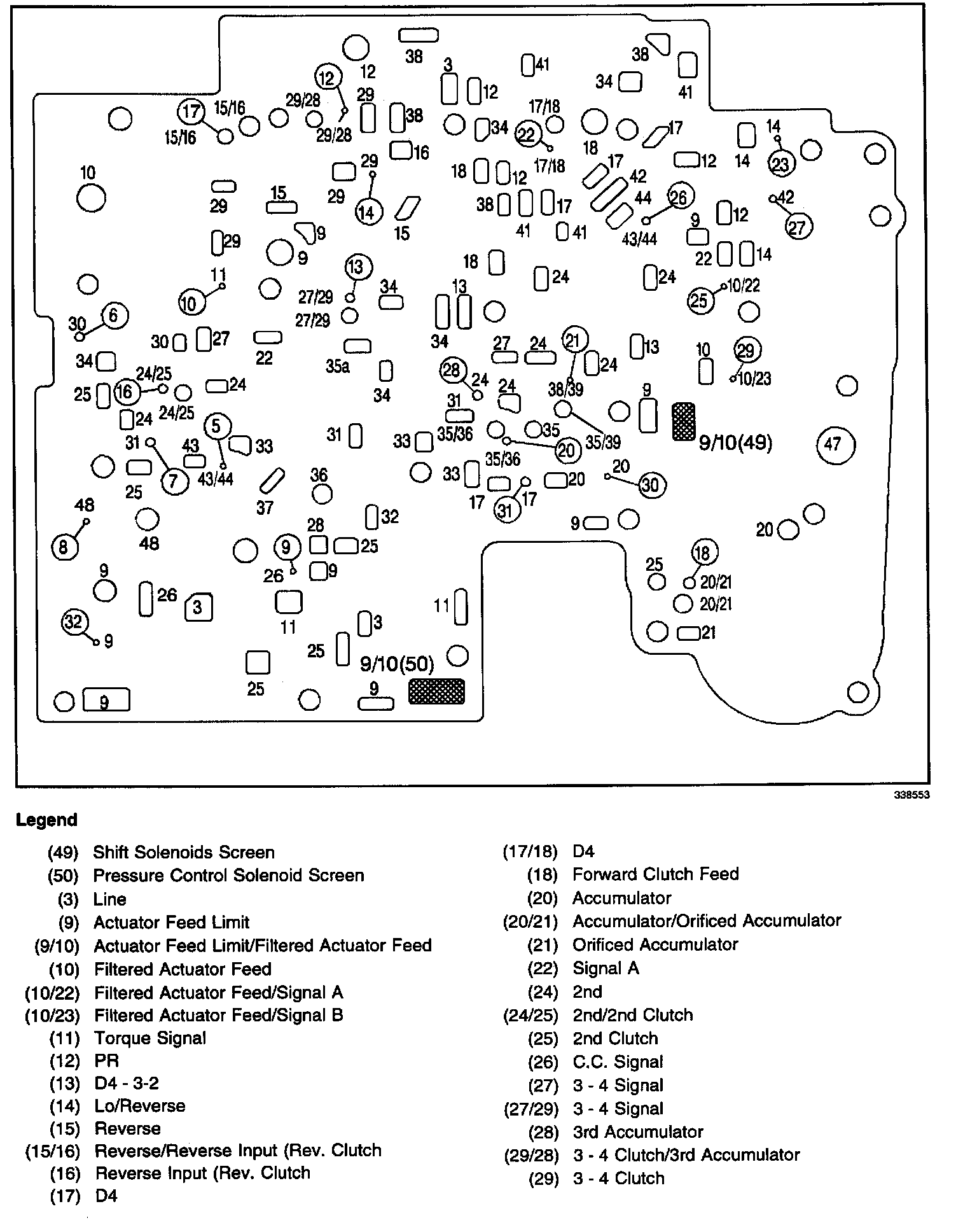

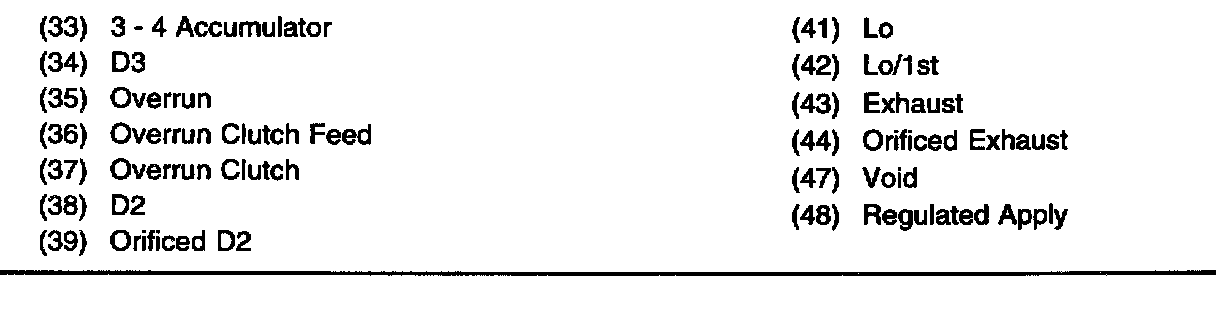

Spacer Plate Fluid Passages
Spacer Plate to Control Valve Body Gasket

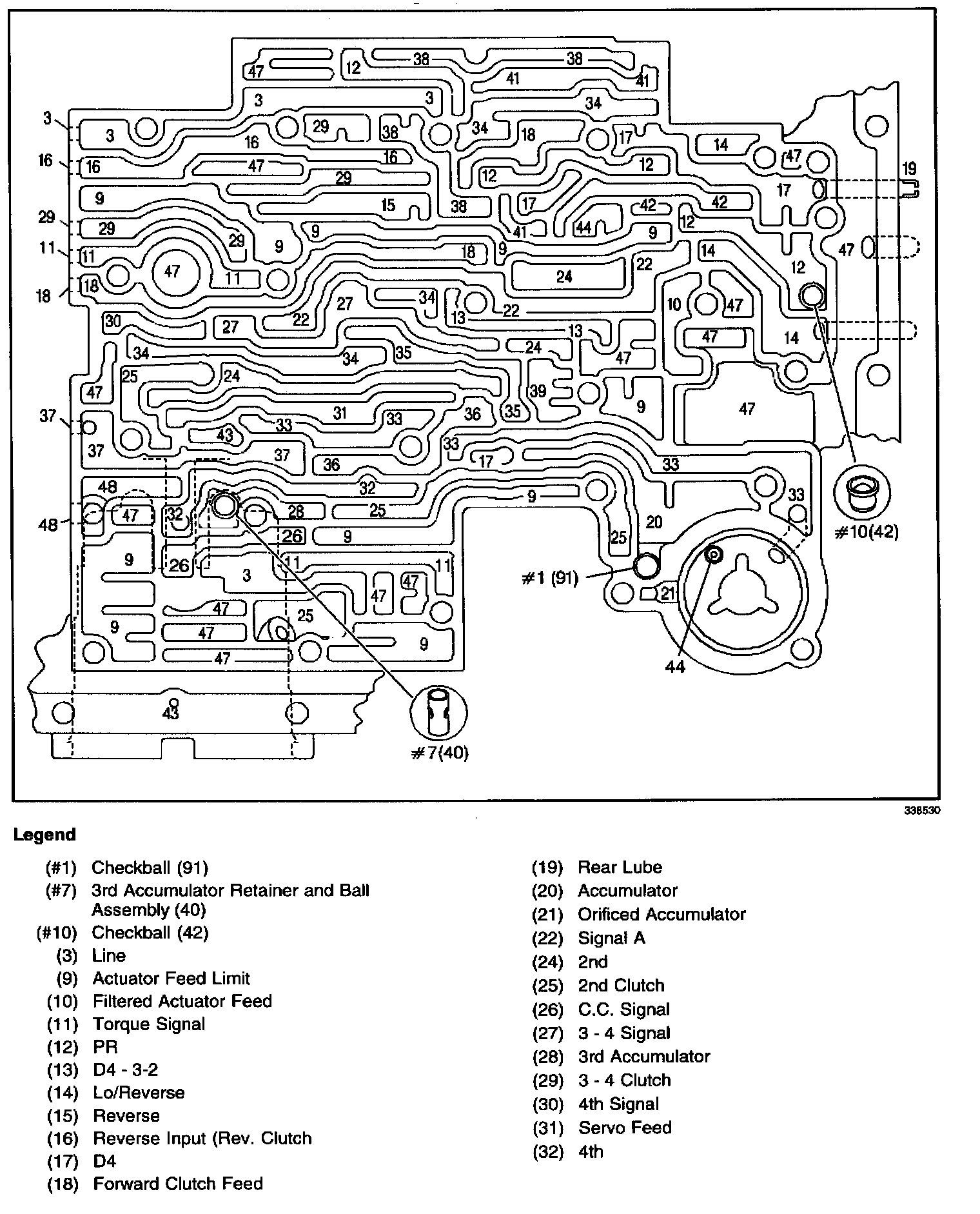

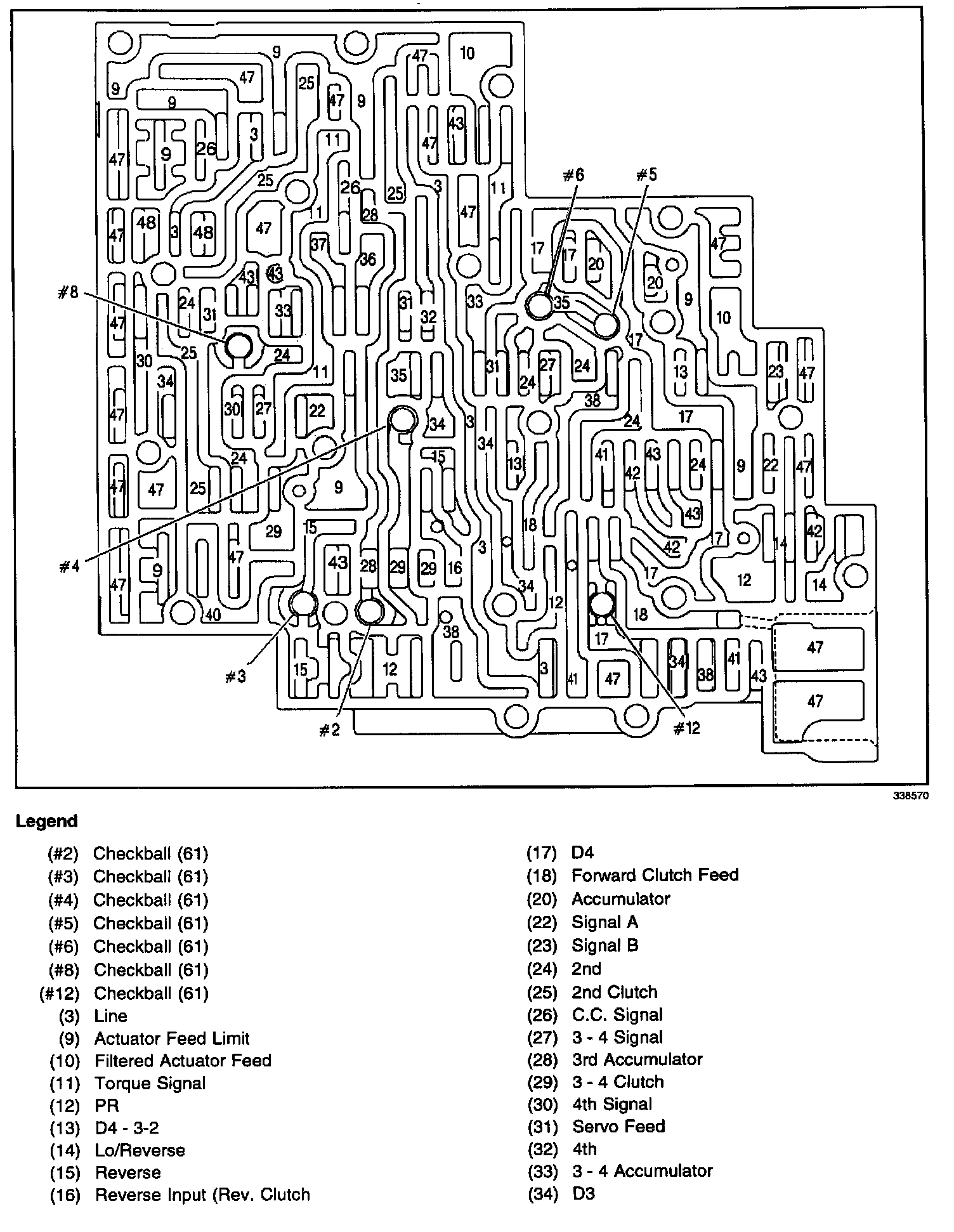

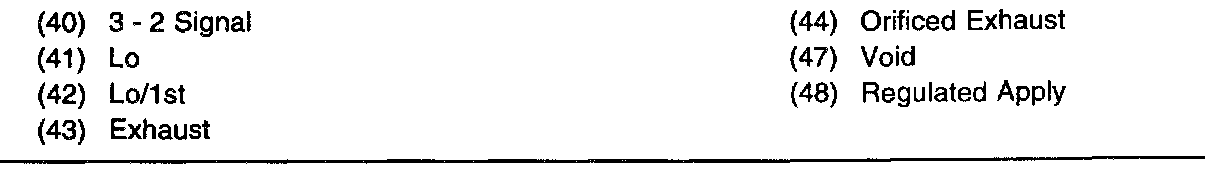

Control Valve Body Fluid Passages (Case Side)
2 - 4 Servo Fluid Passages

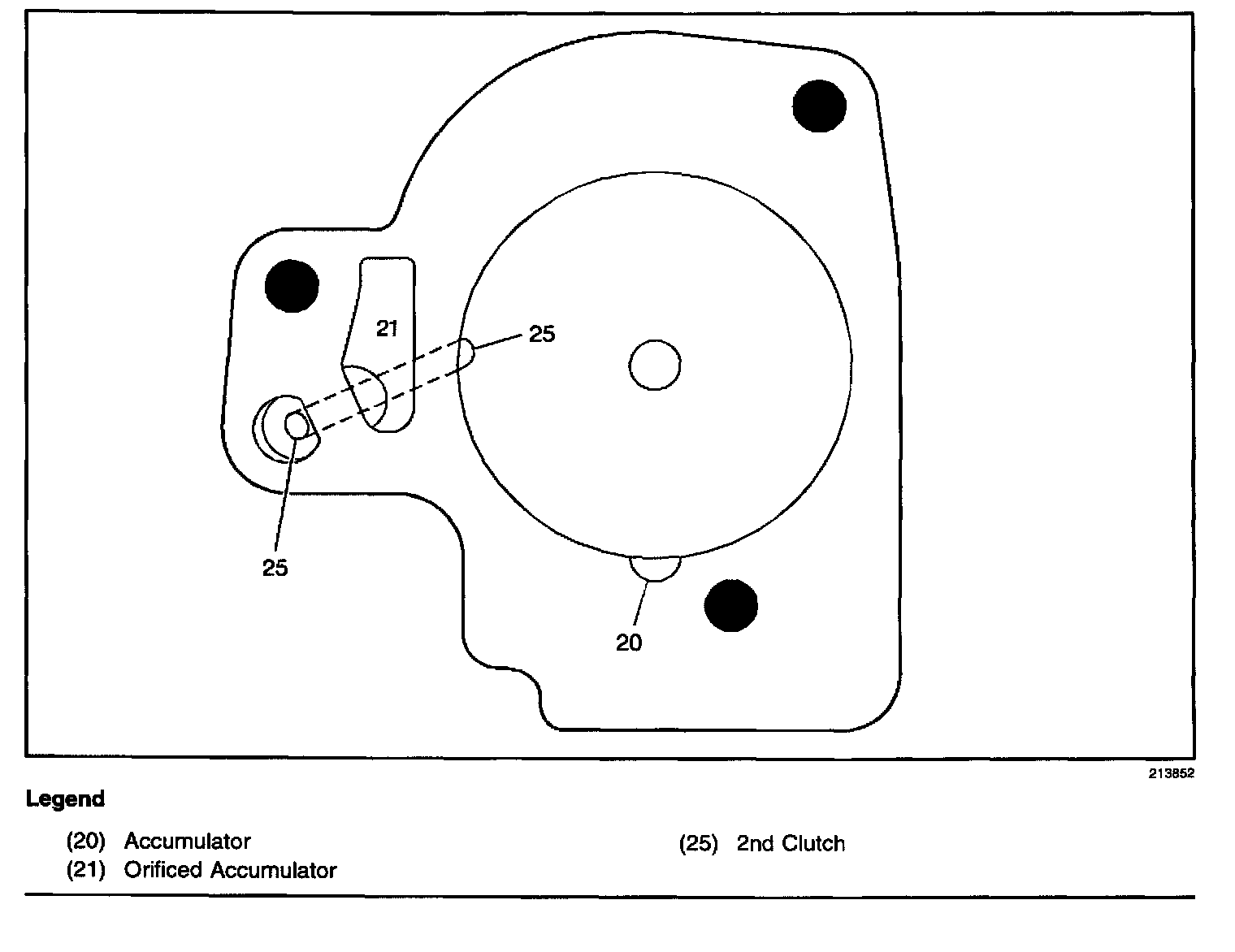

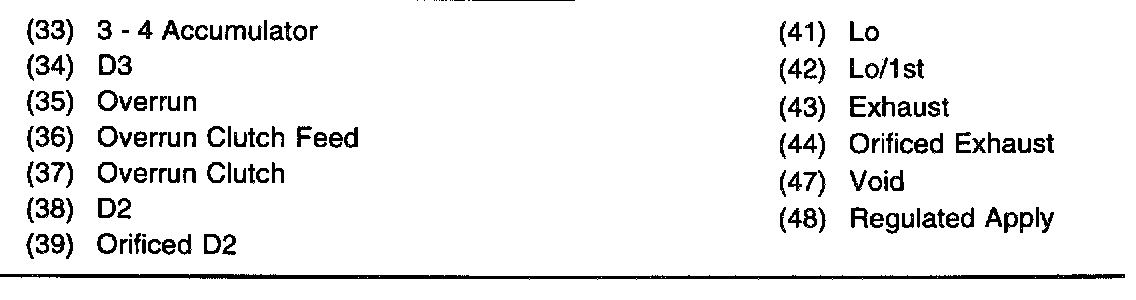

1 - 2 Accumulator Cover Fluid Passages
