Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Components (Text Description)

Components (Text Description)

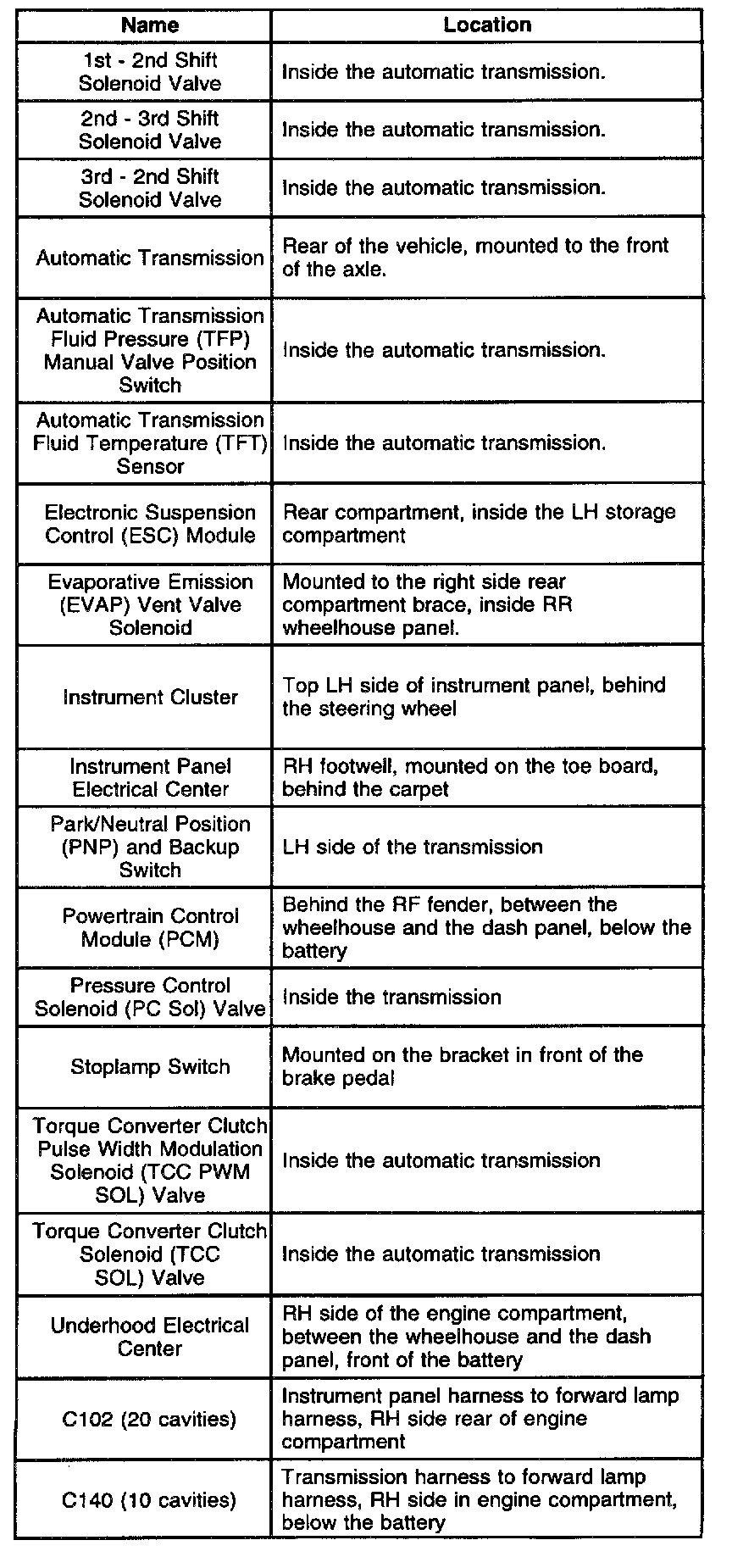

Part 1 Of 2:

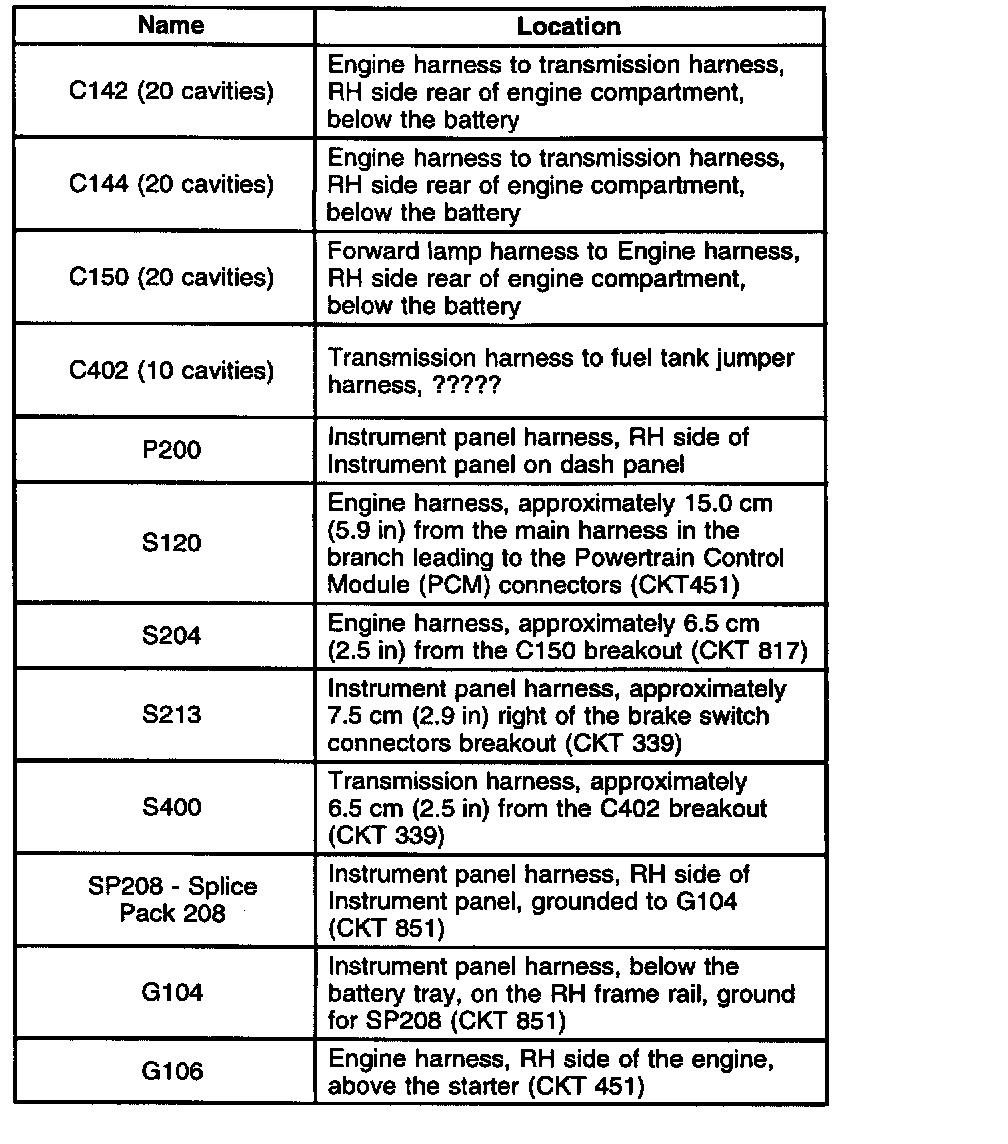

Part 2 Of 2:





Component Locations
