Engine

Part 1 Of 2:




Part 2 Of 2:

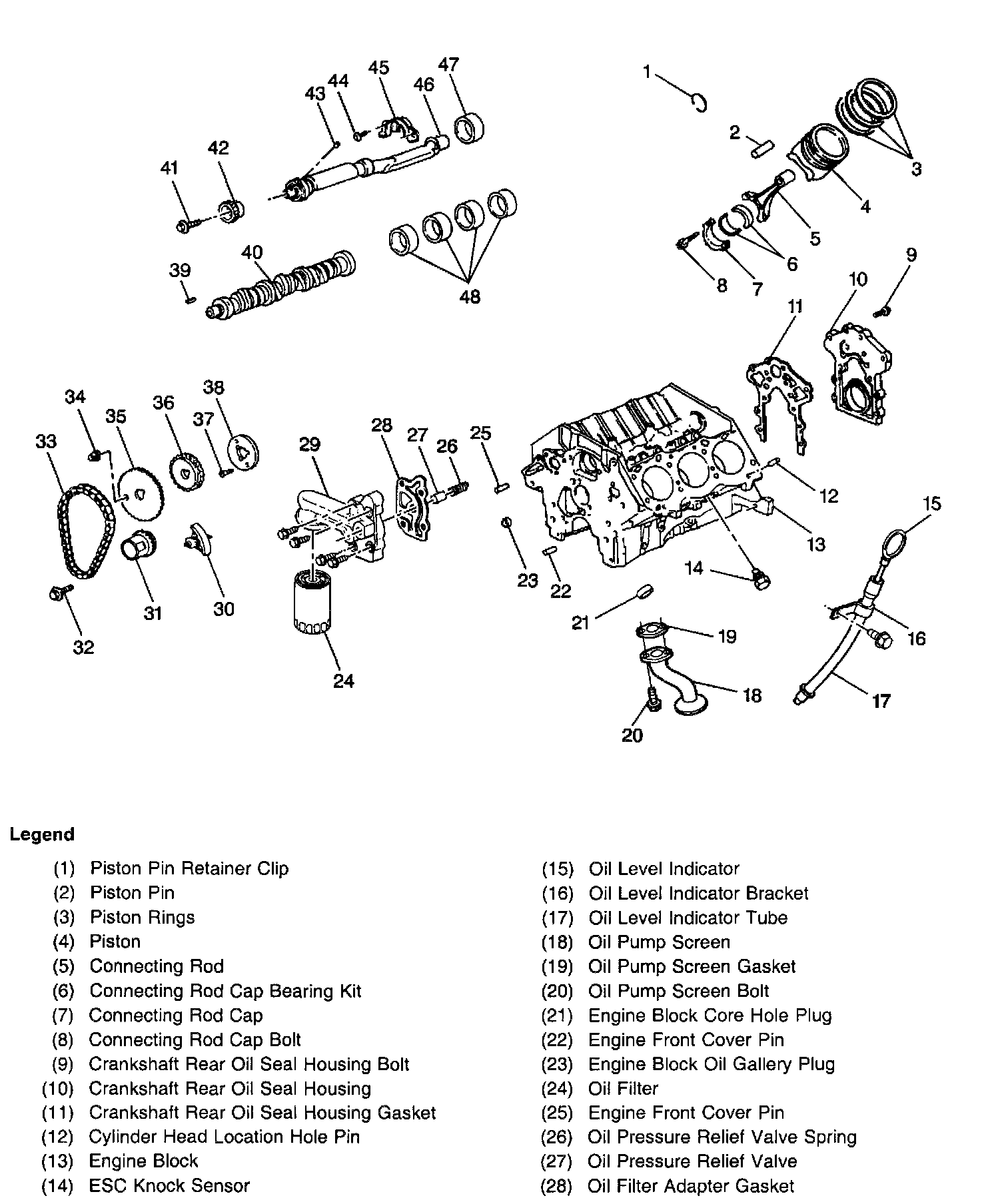

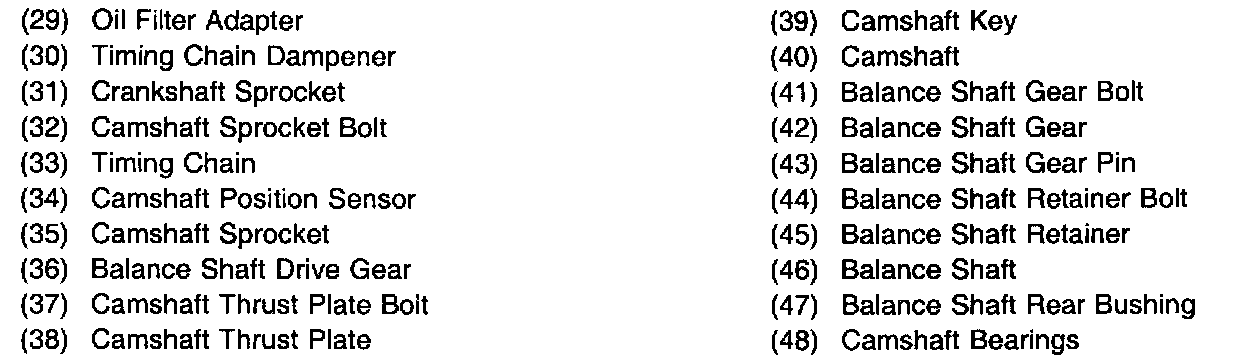

Engine Block and Components

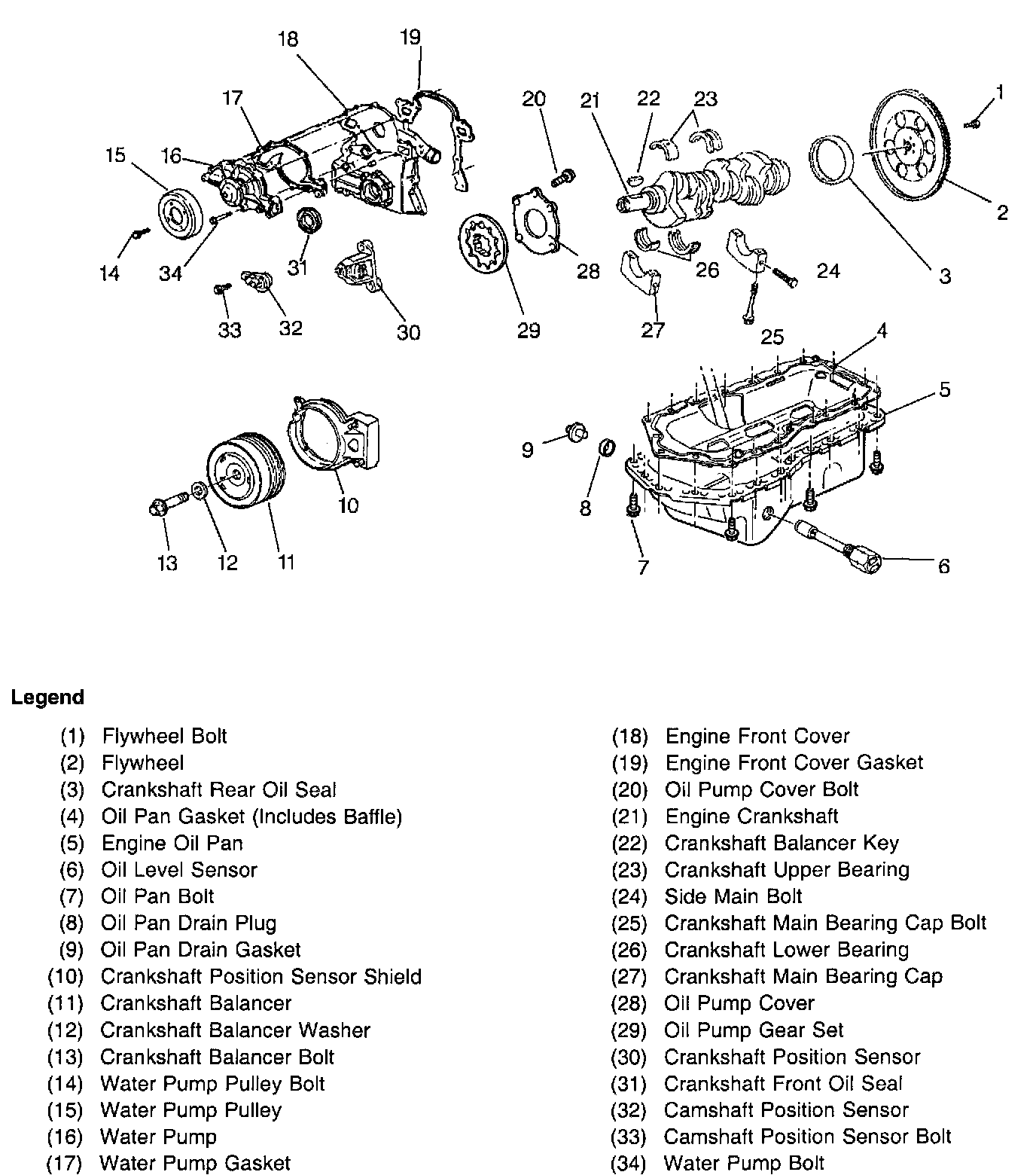

Crankshaft and Components

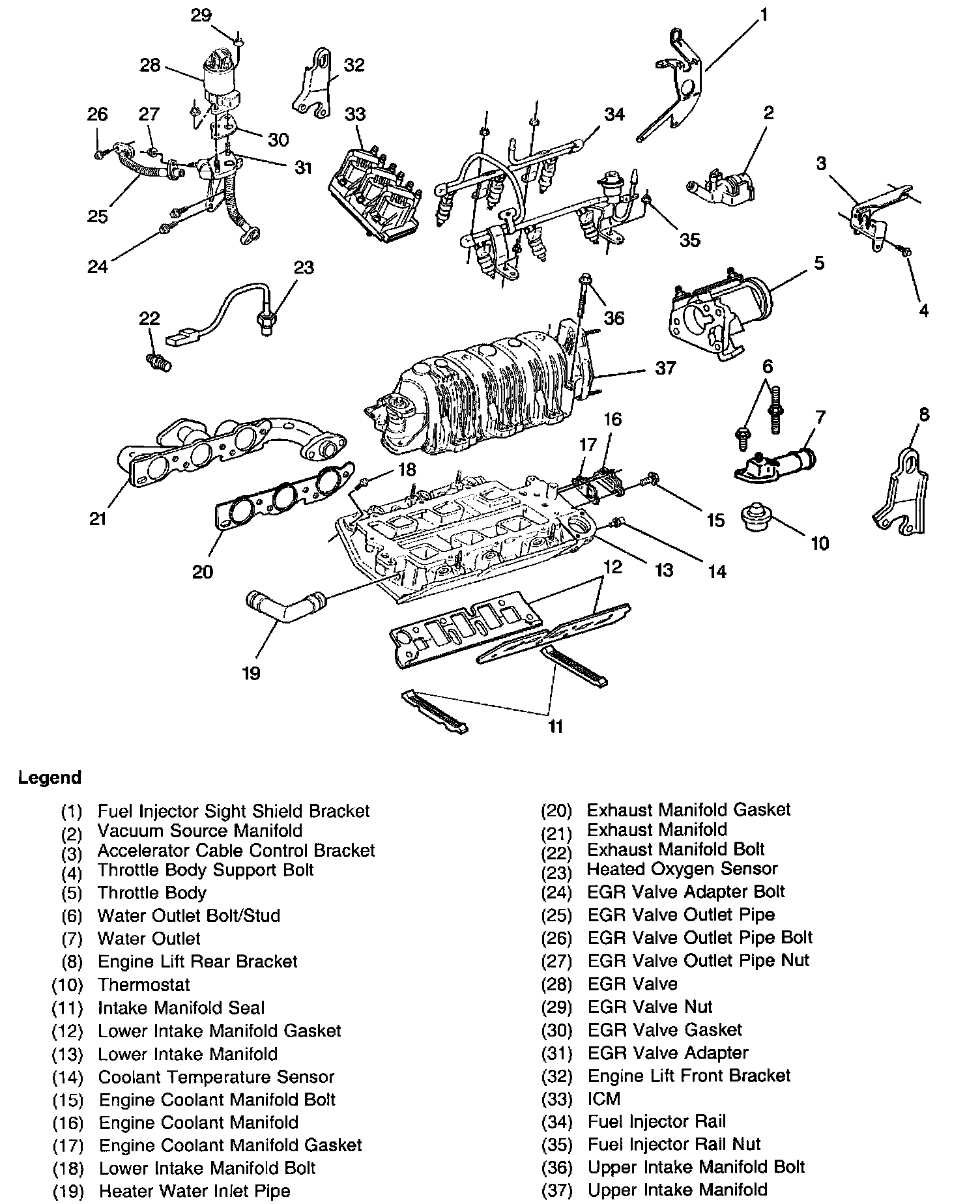

Intake Manifold and Components

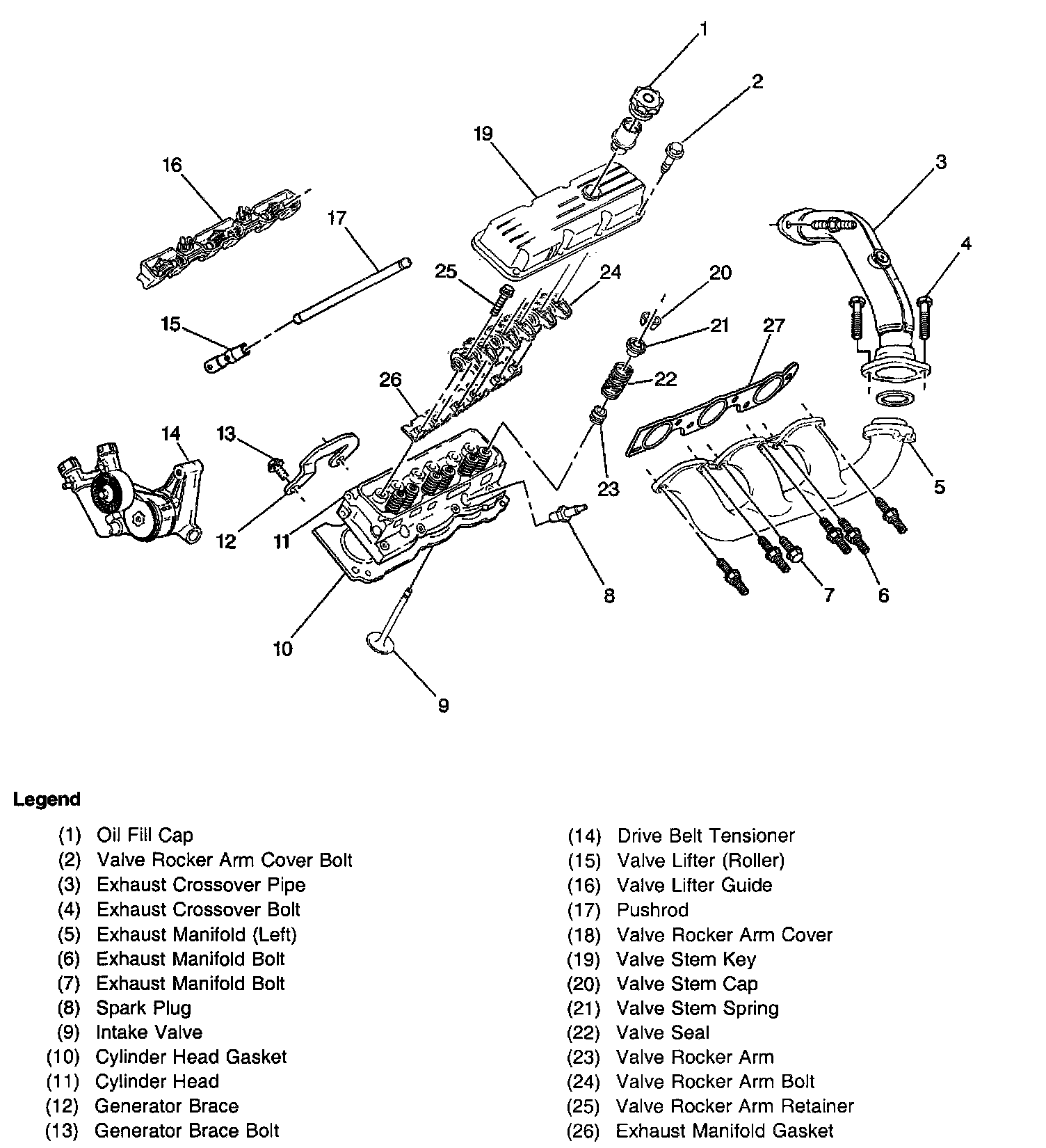

Cylinder Head and Components
