Powertrain Controls

Power, Ground, MIL and DLC

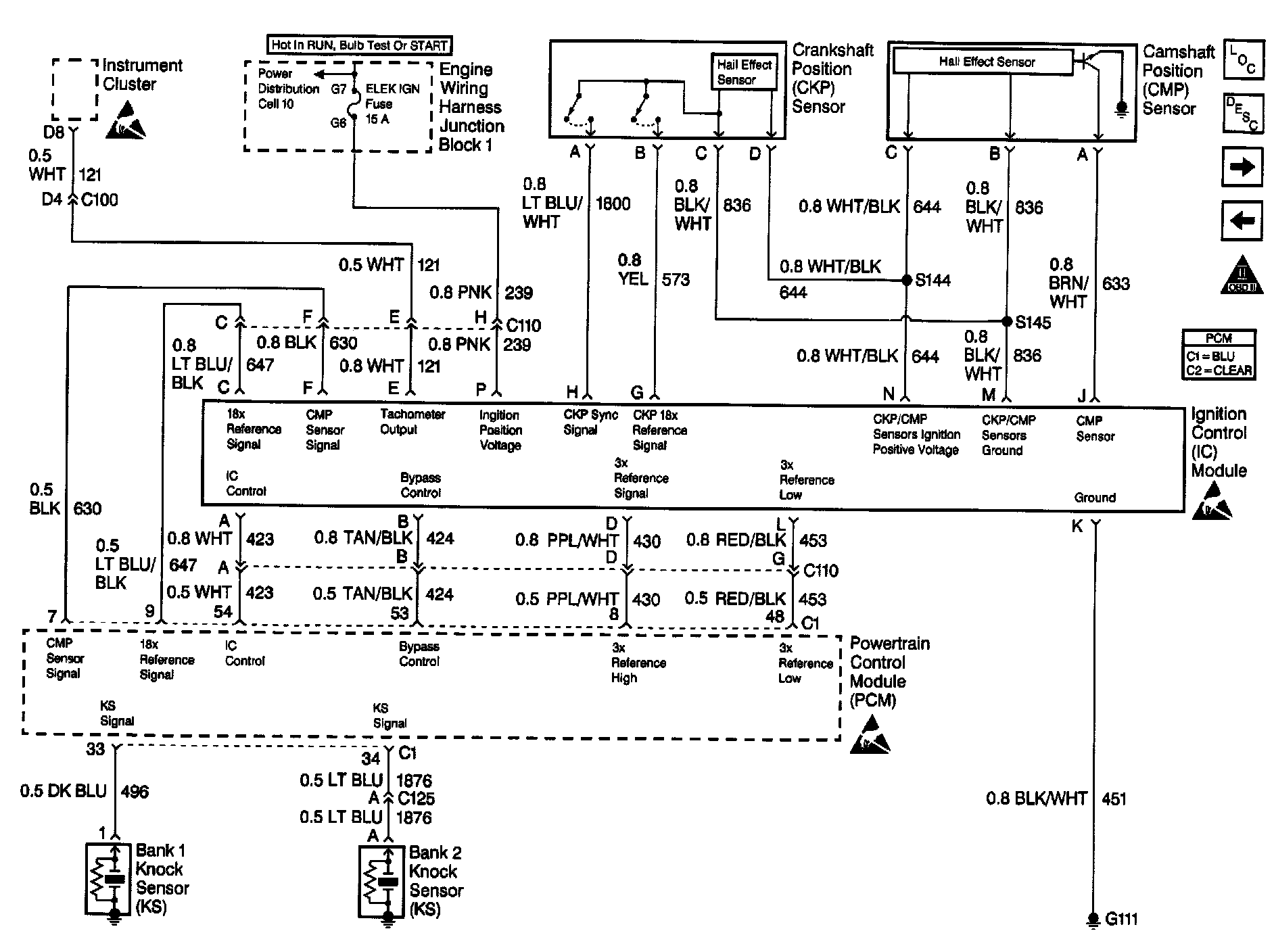

Ignition System, Knock Sensors

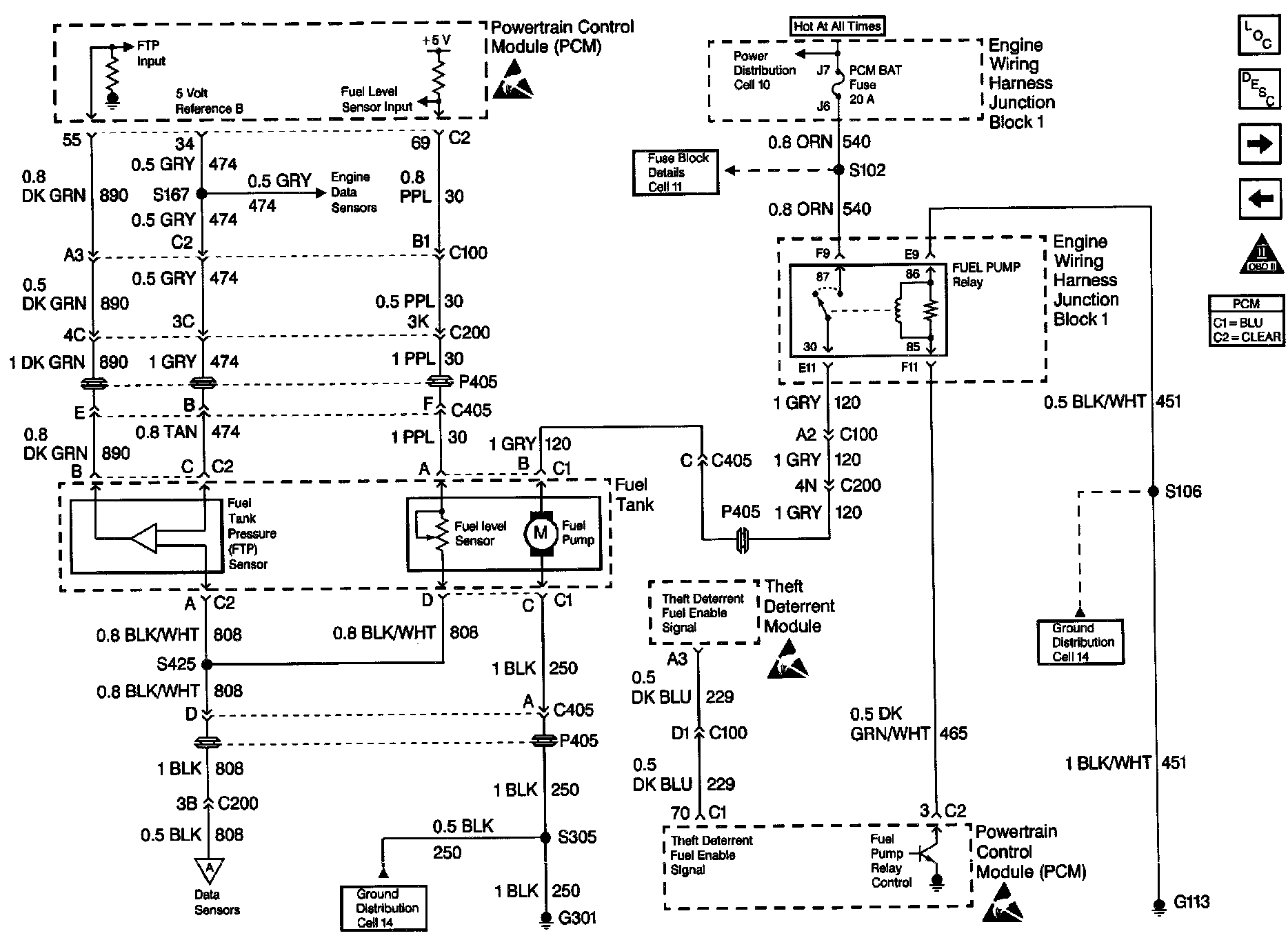

Fuel Controls

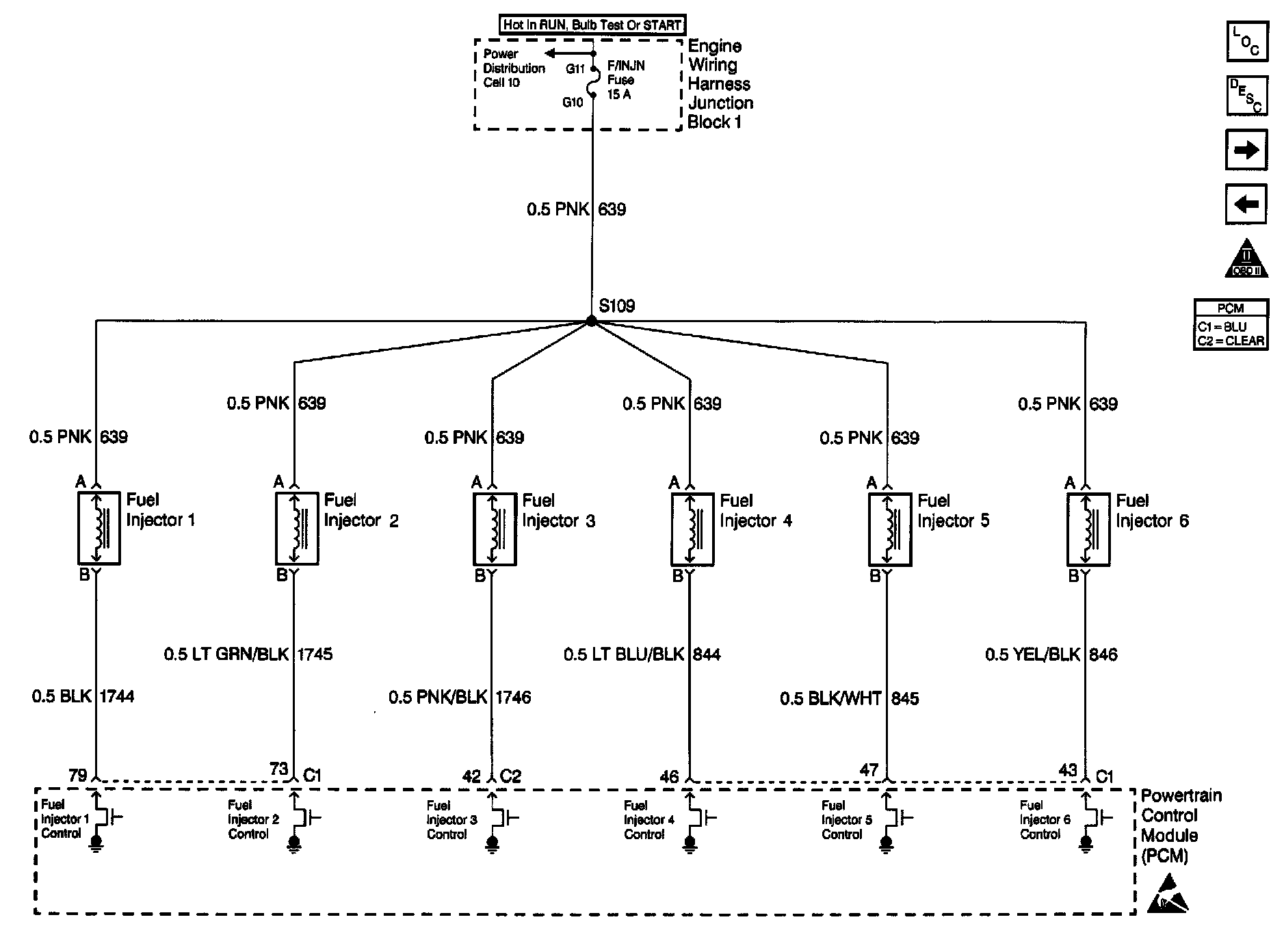

Fuel Injectors




Engine Data Sensors - A/C Refrigerant Pressure, TP, MAP, ECT and IAT




Engine Data Sensors - HO2S1, HO2S2




Engine Data Sensors - MAF, EVAP Vent, EVAP Purge, EGR

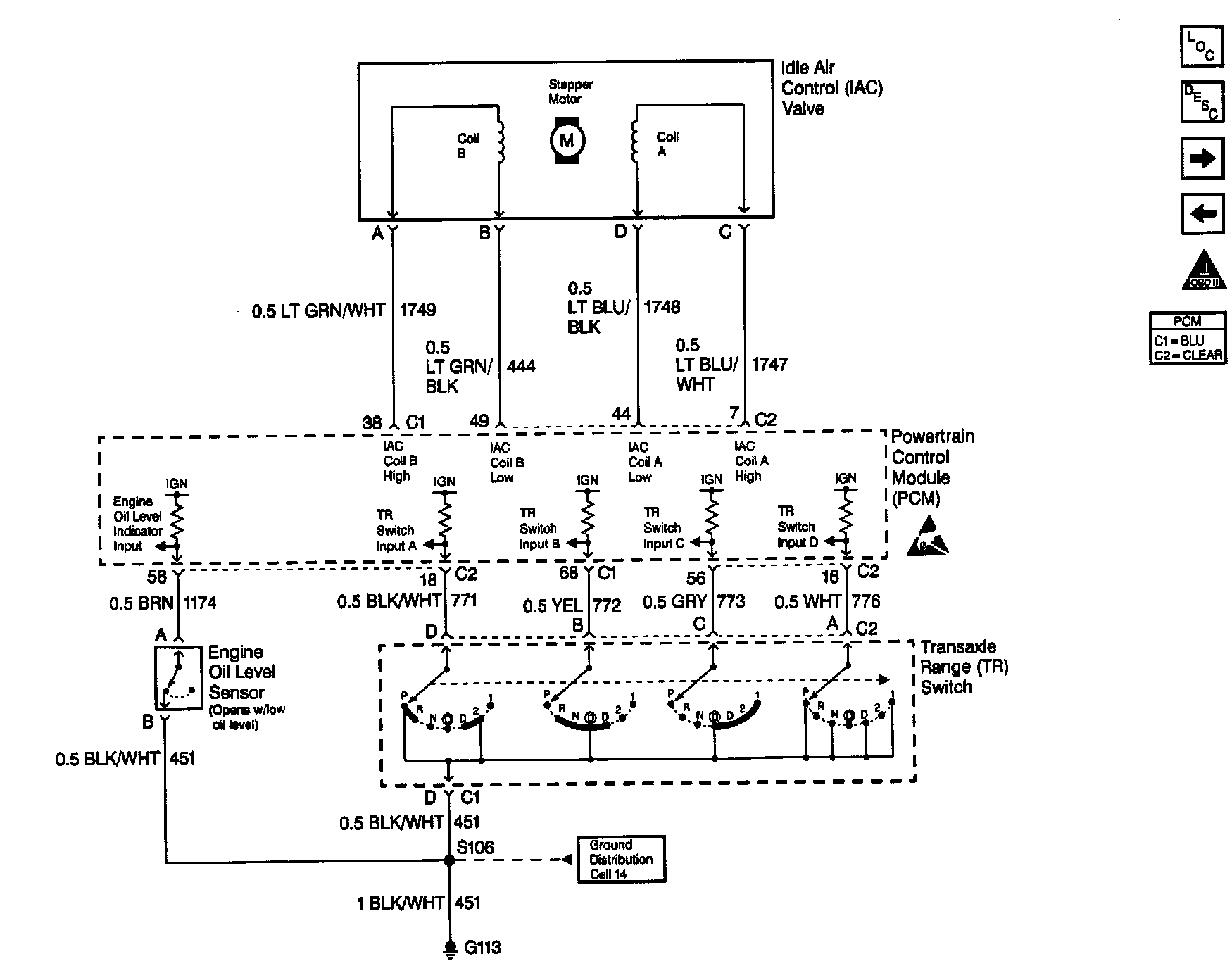

Engine Data Sensors - IAC, Engine Oil Level




Engine Data Sensors - Indicator lamps

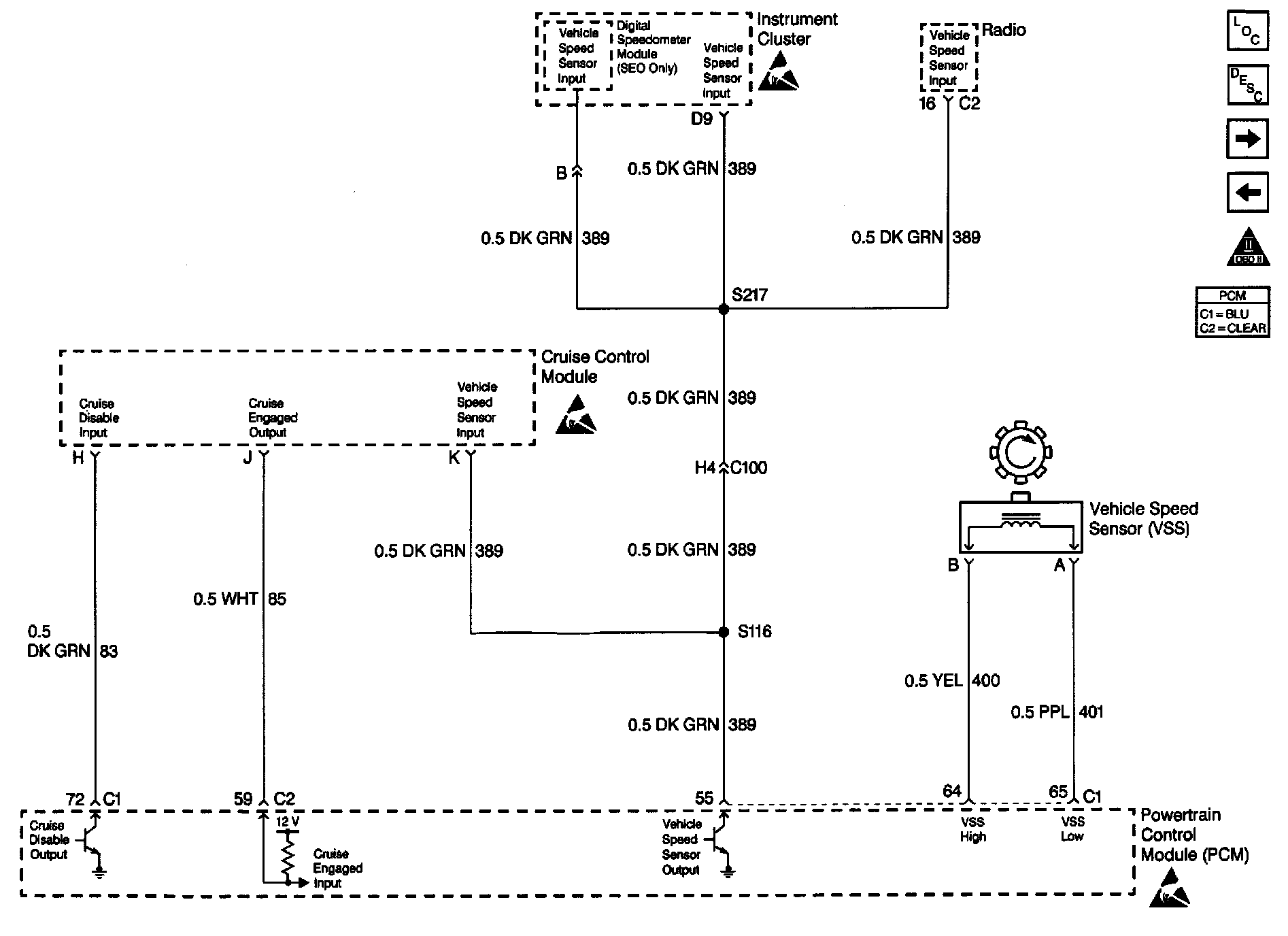

Engine Data Sensors - VSS, Cruise




Engine Data Sensors - Automatic Transaxle TCC Switch




Engine Data Sensors - Automatic Transaxle




Engine Data Sensors - A/C Compressor Controls

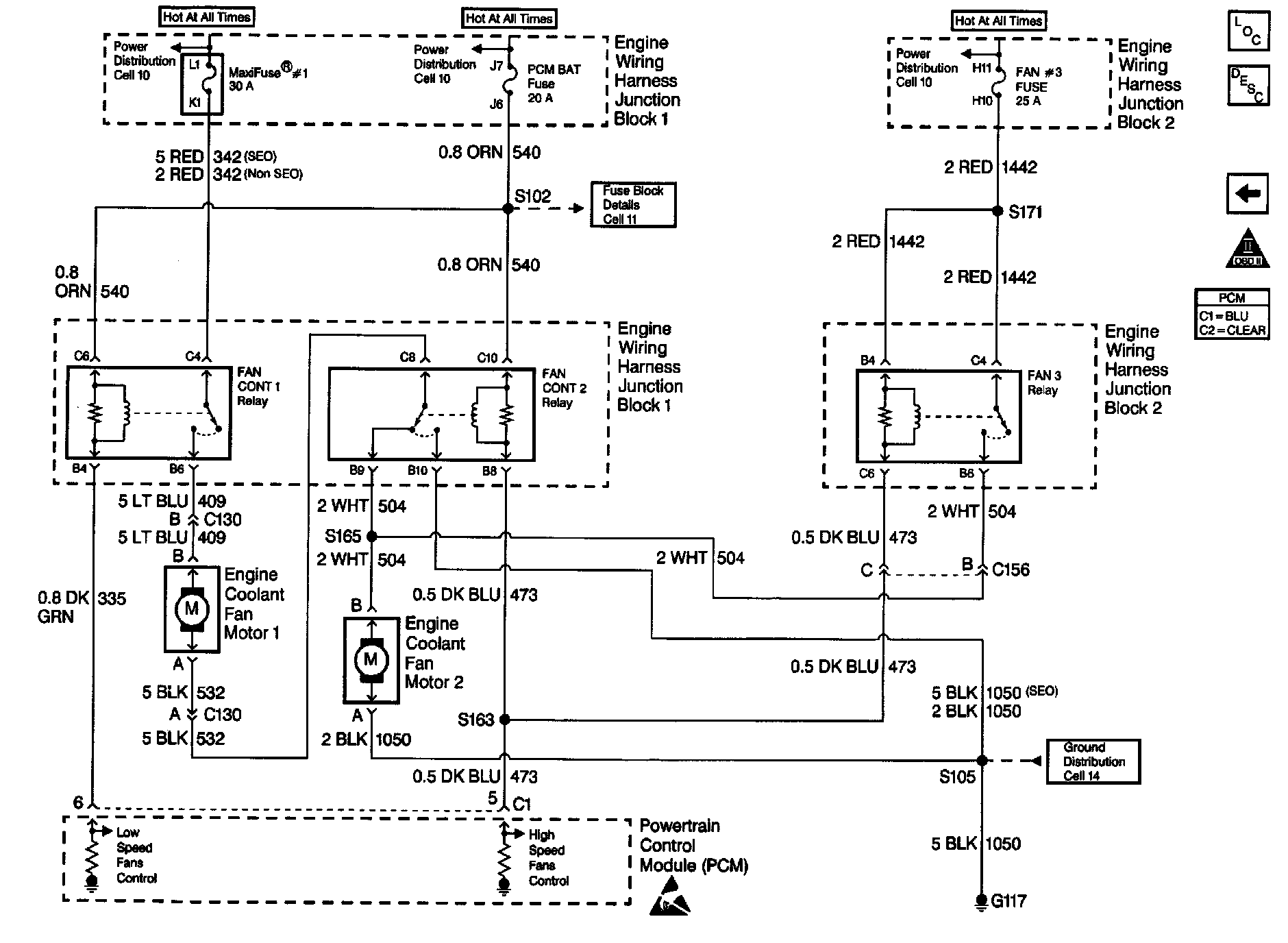

Engine Data Sensors - Cooling Fan Controls
