Control Assembly: Service and Repair

REMOVAL PROCEDURE




1. Remove the I/P cluster trim plate.
2. Remove the retaining bolt from the HVAC control assembly.
3. Release the retaining clips to remove the control assembly from the instrument panel.

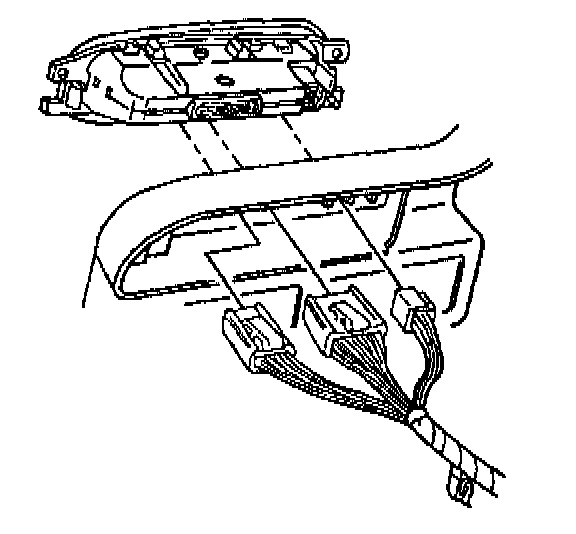

4. Disconnect the electrical connector(s) and if equipped the vacuum connector from the HVAC control assembly.
5. Remove the HVAC control assembly.

INSTALLATION PROCEDURE




1. Connect the electrical connector(s) and if equipped the vacuum connector to the HVAC control assembly.




2. Install the HVAC control assembly into the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the retaining bolt to secure the HVAC control assembly.

Tighten
Tighten the control assembly bolt to 2 N.m (18 lb in).

4. Install the I/P cluster trim plate.
