Windshield Washer Pump: Service and Repair

REMOVAL PROCEDURE

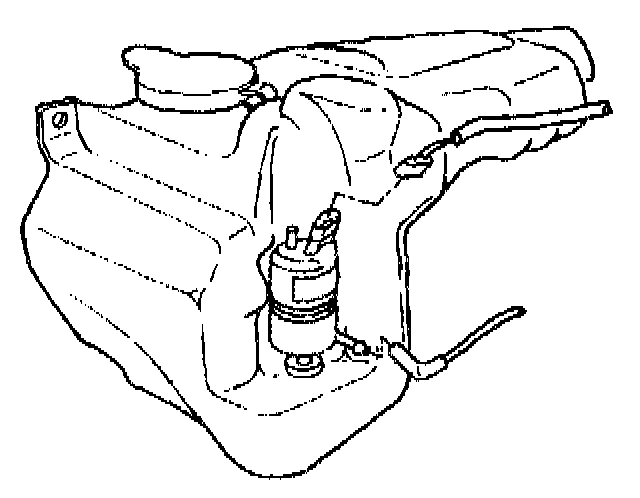

1. Disconnect the electrical connector from the washer pump.
2. Disconnect the washer hose from the washer pump.

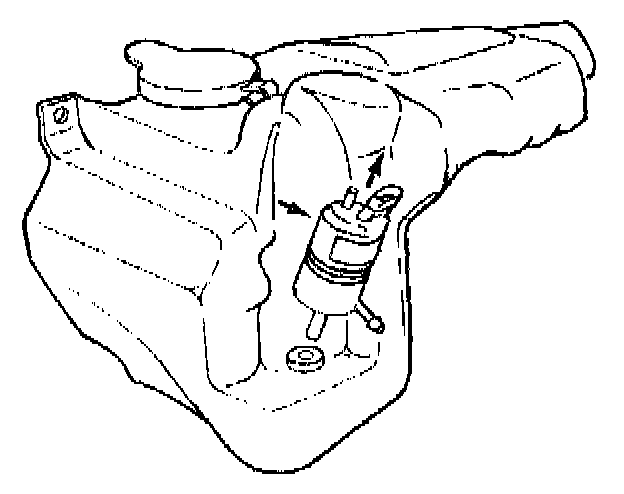

3. Pull the top of the washer pump out from the side of washer solvent container.
4. Remove the washer pump from the washer solvent container.
5. Remove the grommet from the washer solvent container.

INSTALLATION PROCEDURE




1. Install the washer pump grommet in the washer solvent container.
2. Install the washer pump in the washer solvent container.
3. Push the top of the washer pump into the side of the washer solvent container.




4. Connect the washer hose to the washer pump.
5. Connect the electrical connector to the washer pump.
