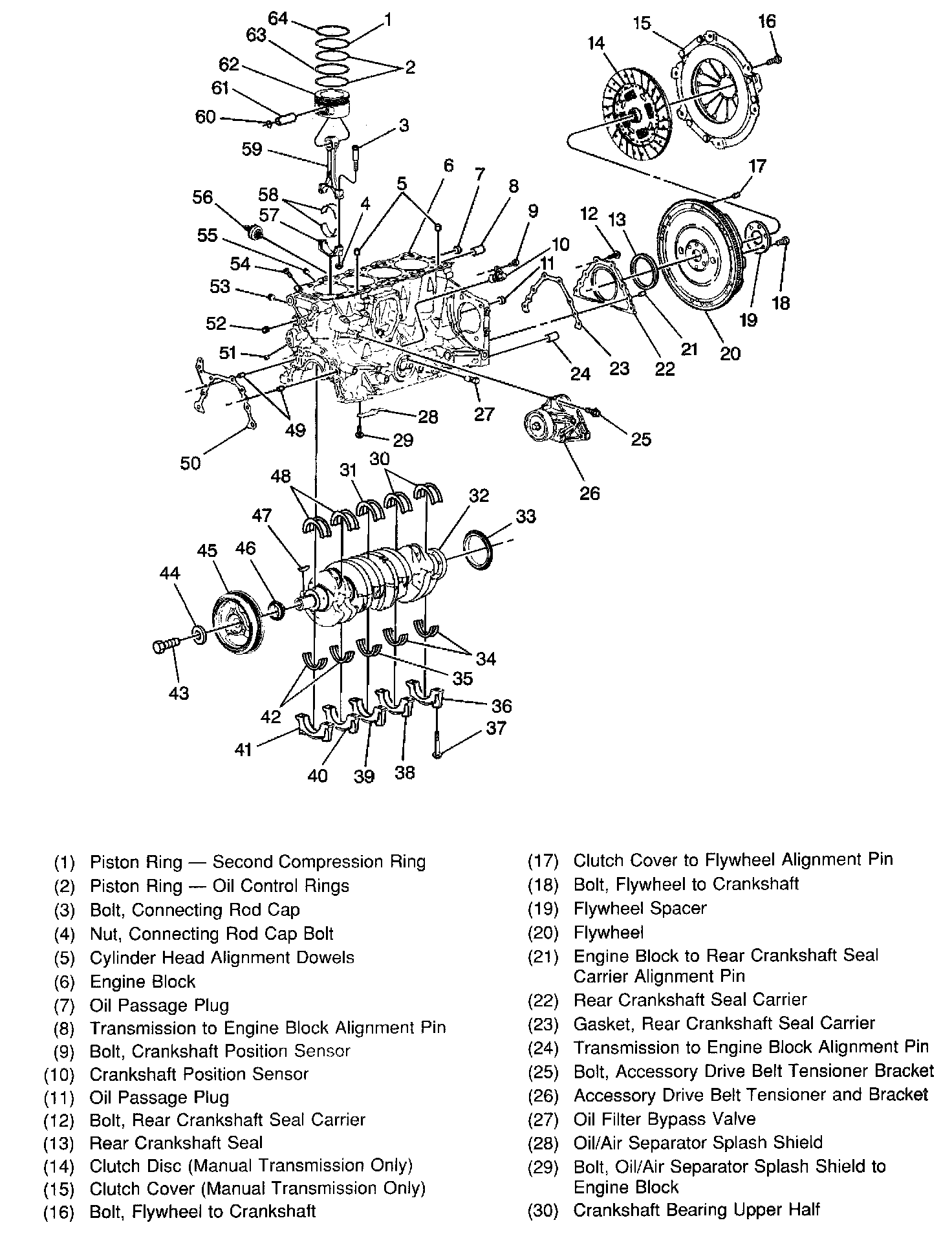

Cylinder Block and Components Disassembled View
Cylinder Block and Components Disassembled View
Part 1 Of 2:
Part 2 Of 2:
