Fusible Links
Fusible Links

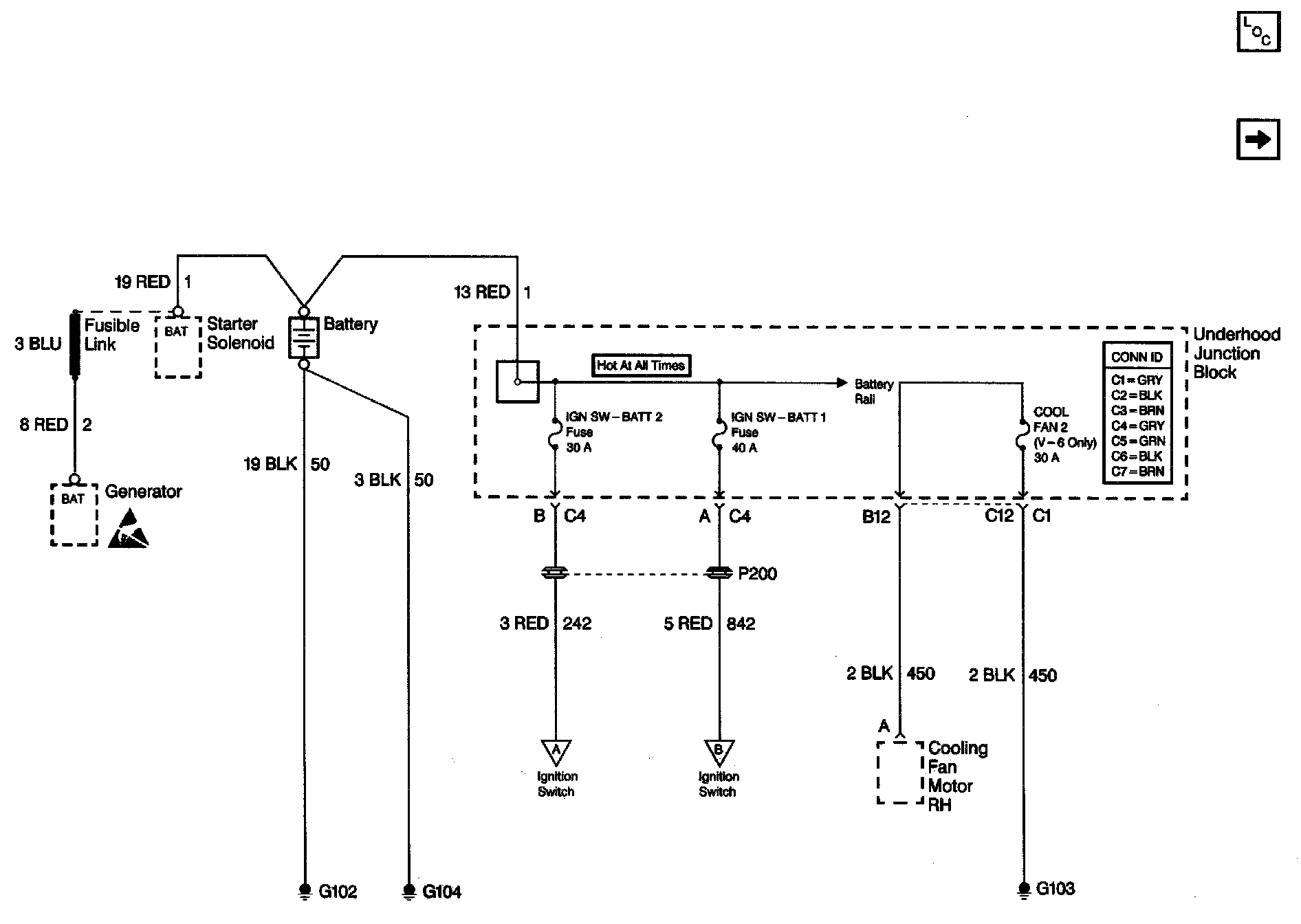

Power Distribution Schematics: IGN SW - BATT 1 And IGN SW - BATT 2 Fuses:
