Electrical Diagrams

BODY CONTROL SYSTEM SCHEMATICS

SDM, Washer Solvent Lever Sensor, Seat Belt Switch and Park Brake Switch







Ignition Switch and Left Front Door Ajar Switch

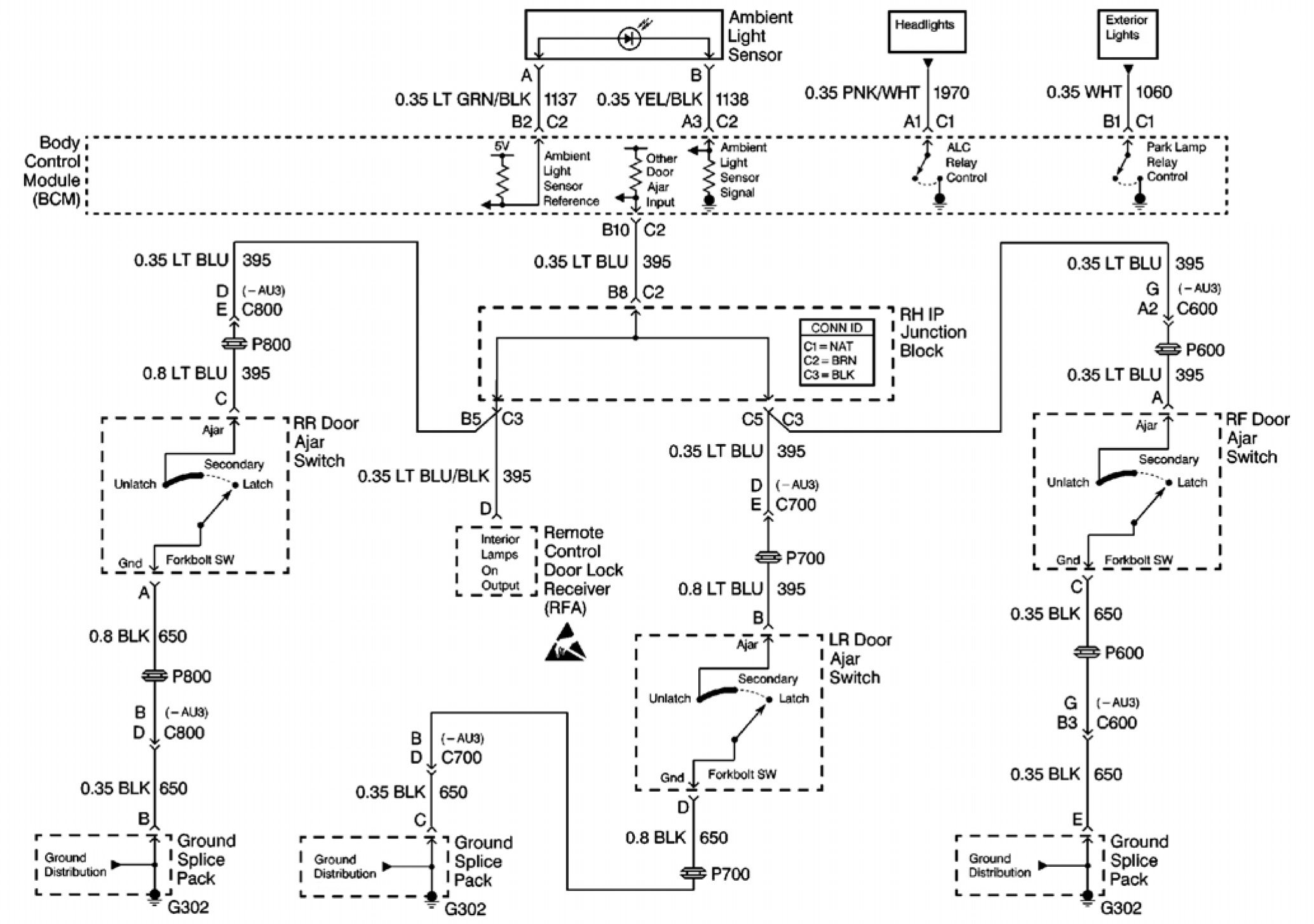

Remote Control Door Lock Receiver and Right Rear, Left Rear, Right Front Door Ajar Switches

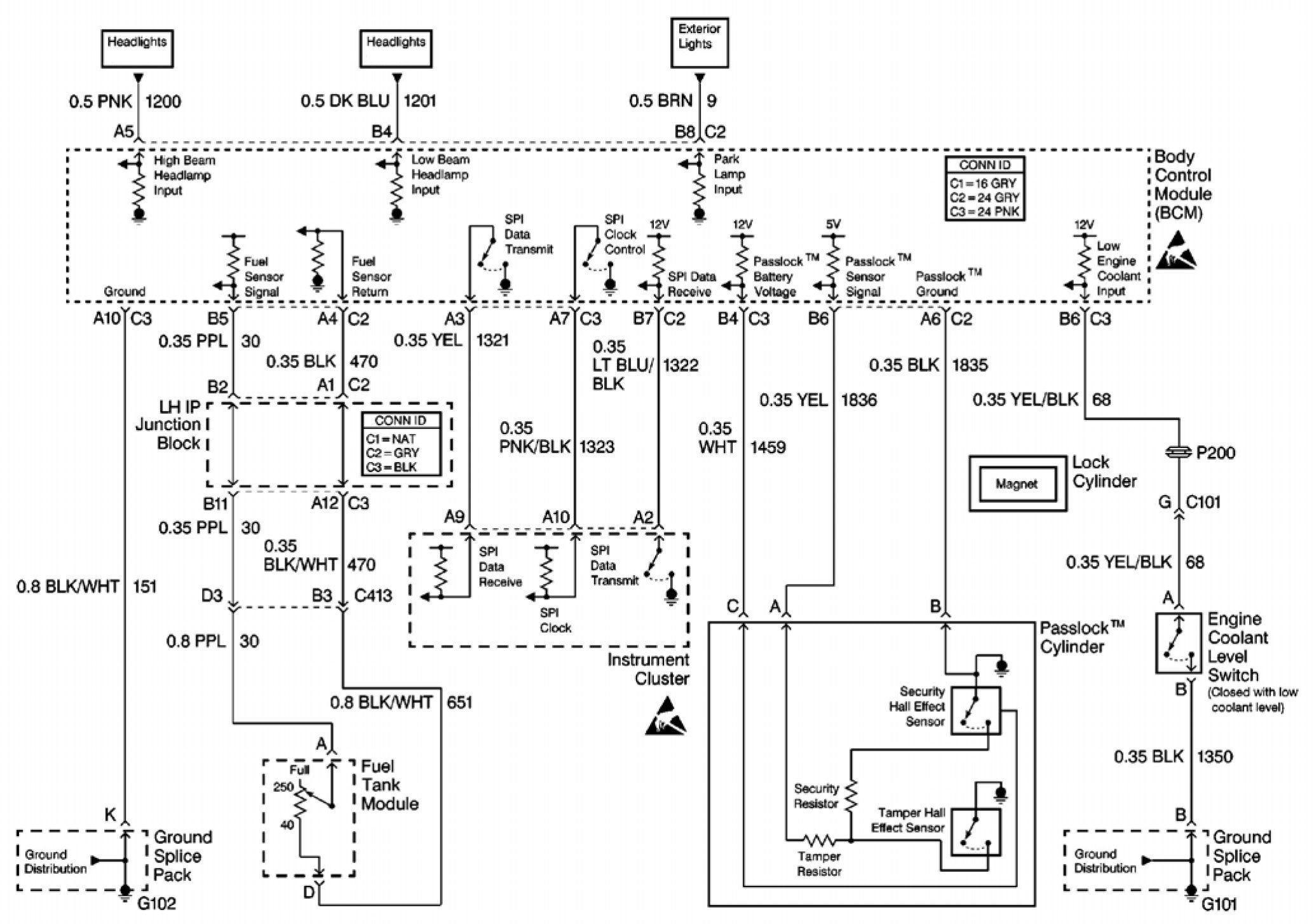

Fuel Tank Module, Instrument Cluster and Passlock ™ Cylinder







Power Distribution Diagrams Power Distribution Diagrams

Ground Distribution Diagrams Ground Distribution Diagrams

Data Link Connector Diagrams Electrical Diagrams

Headlights Diagrams Headlights

HVAC Compressor Controls Diagrams HVAC Compressor Control Schematics

Exterior Lights Diagrams Exterior Lights

Interior Lights Diagrams Electrical Diagrams
