Oxygen Sensor
>>

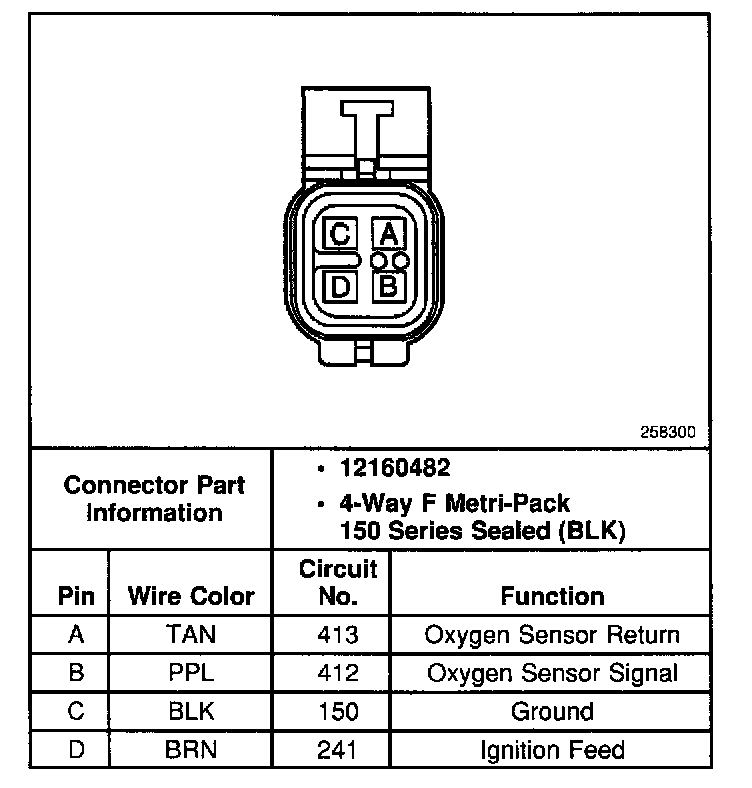

Pre-Converter Heated Oxygen Sensor (HO2S 1)
Pre-Converter Heated Oxygen Sensor (HO2S 1)
Connector View:
