Radio, Stereo, and Compact Disc
>>
Front Speakers, W/O Remote Playback
Front Speakers, W/O Remote Playback

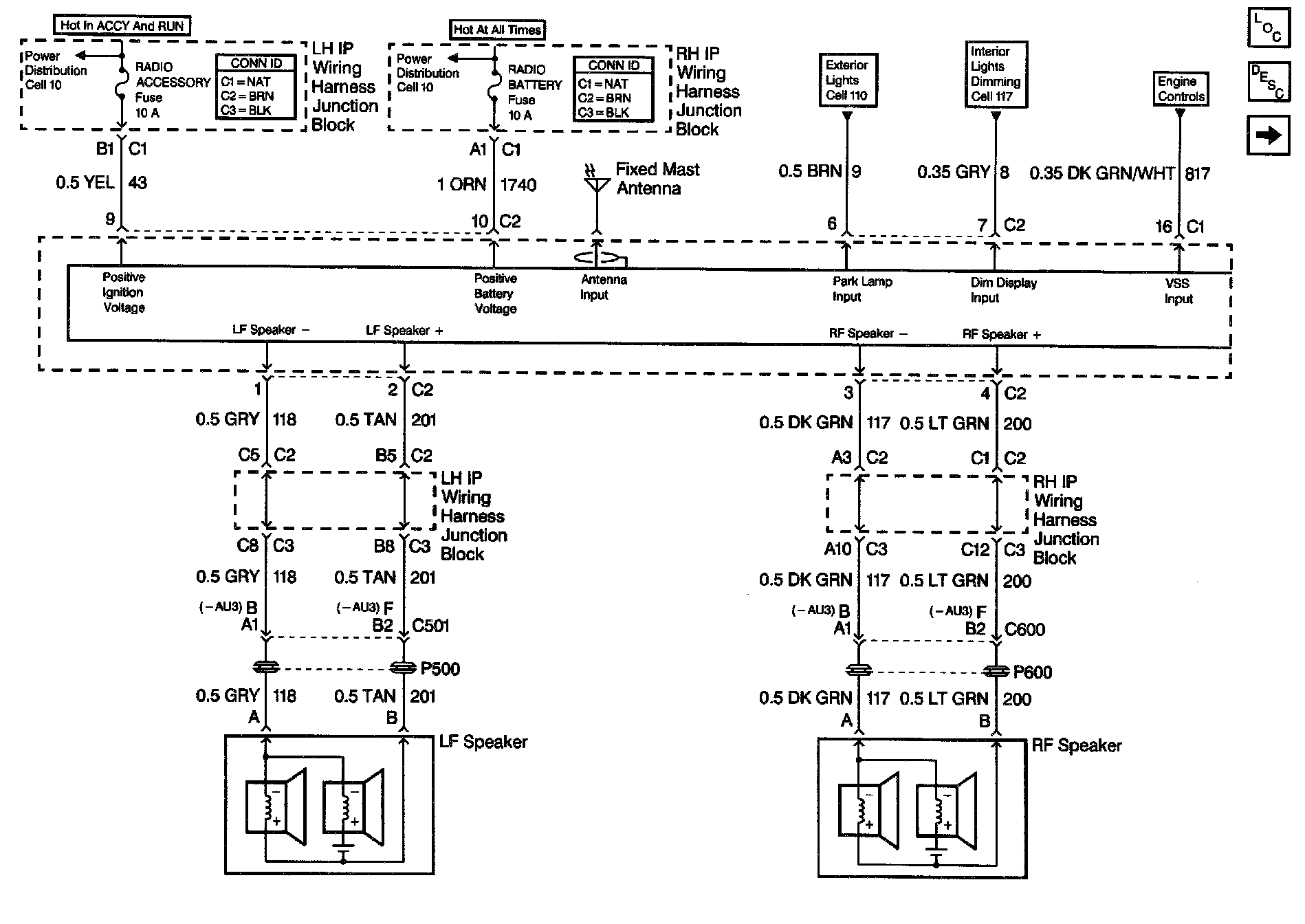

Radio/Audio System Schematics: Front Speakers, W/O Remote Playback:
