Air Duct: Service and Repair

Air Outlet Replacement - Floor

REMOVAL PROCEDURE

1. Remove the instrument panel sound insulator.

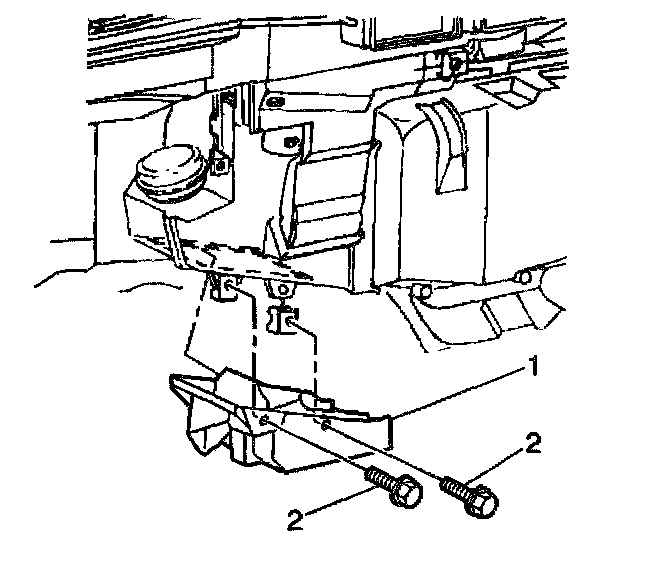

2. Remove the floor air outlet screws.(2)
3. Remove the floor air outlet.

INSTALLATION PROCEDURE

1. Install the floor air outlet.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the floor air outlet screws.

Tighten
Tighten the screws to 3.1 N.m (27 lb in).

3. Install the instrument panel sound insulator.
