DRL Relay, ALC Relay, DRL Resistor

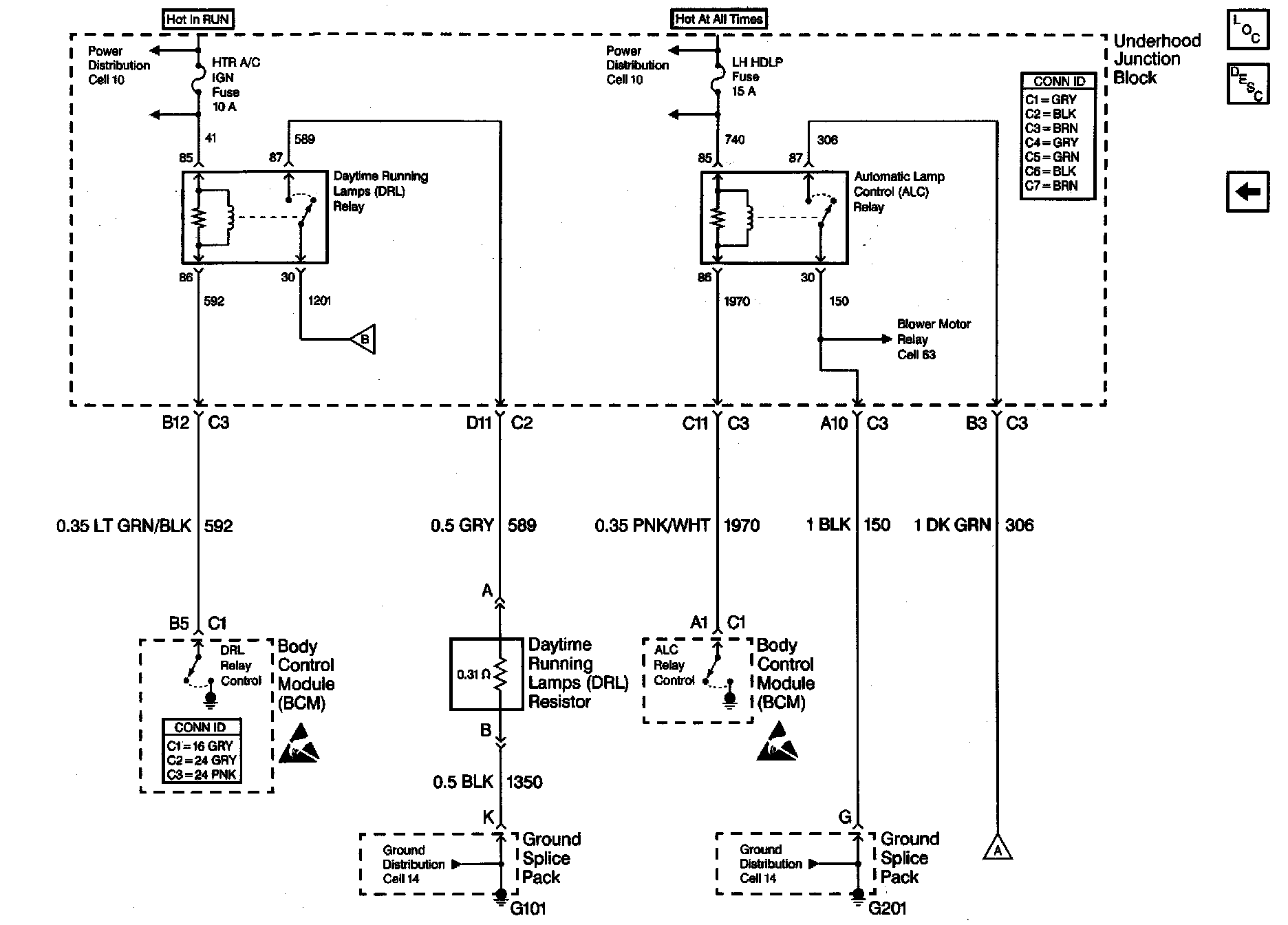

Headlights/Daytime Running Lights (DRL) Schematics: DRL Relay, ALC Relay, DRL Resistor:
