Vacuum and Vapor Hose Diagrams

EVAP Control System Overview:

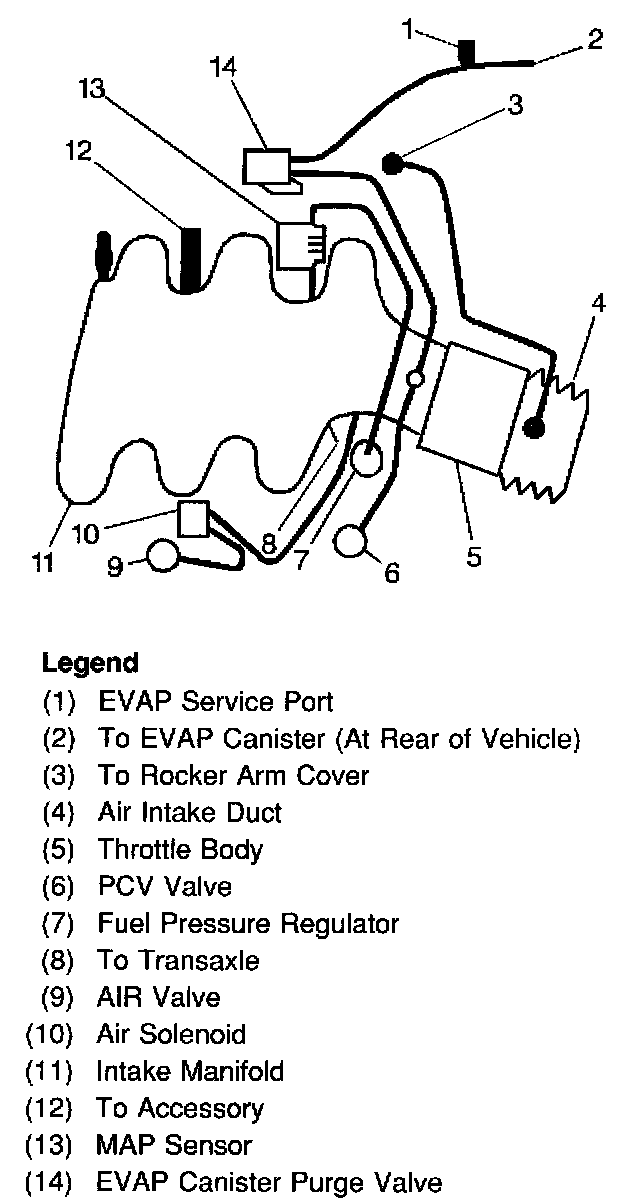

Emission Hose Routing Diagram : 3100 LG8:
