Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Dome Harness
Dome Harness

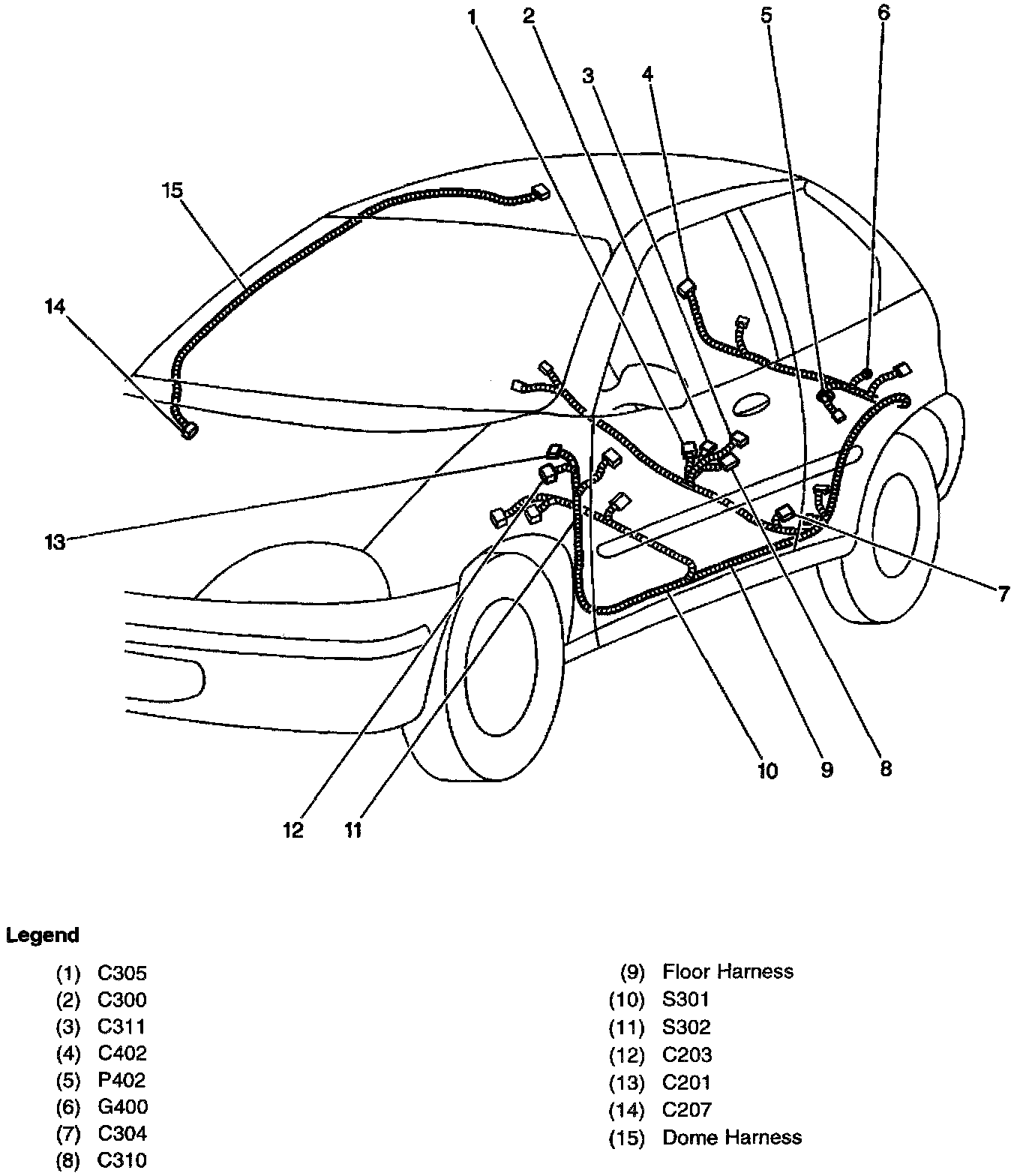

Floor/Dome Harness Routing (2-Door):

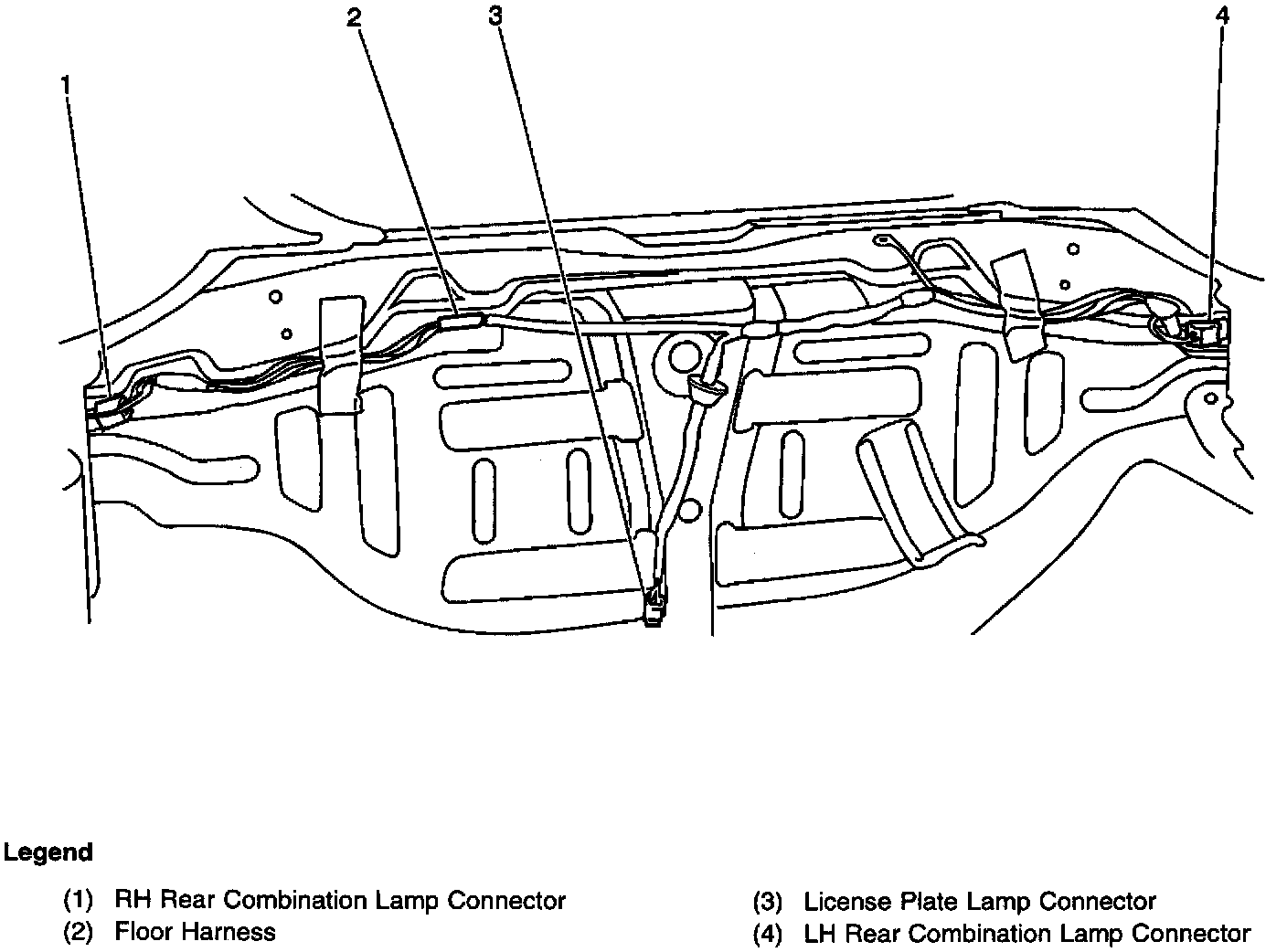

Rear Luggage Compartment (2-Door):
