Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Light Switch
>>
Manual Transaxle
Manual Transaxle

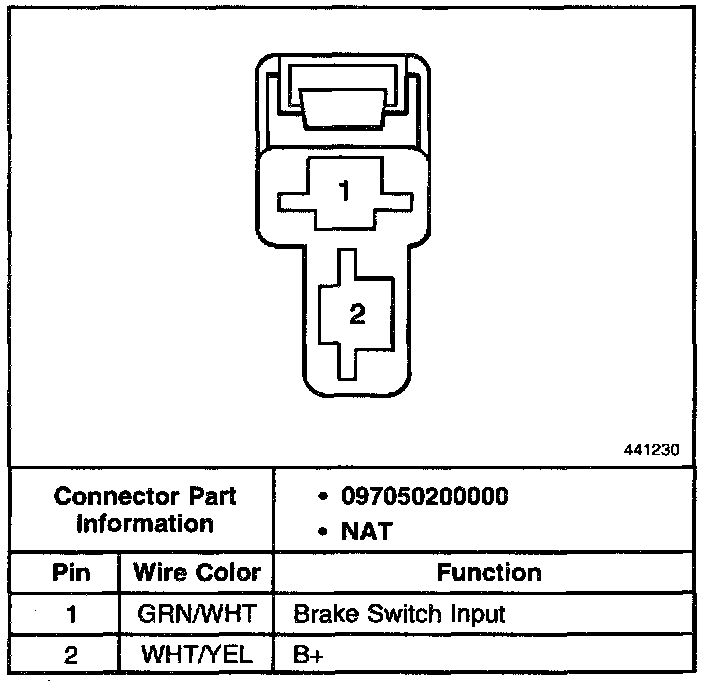

Stoplamp Switch (Manual Transaxle):
