Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 1999 >> Metro L4-079 1.3L VIN 2 MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Wheel Speed Sensors and Motor Pack

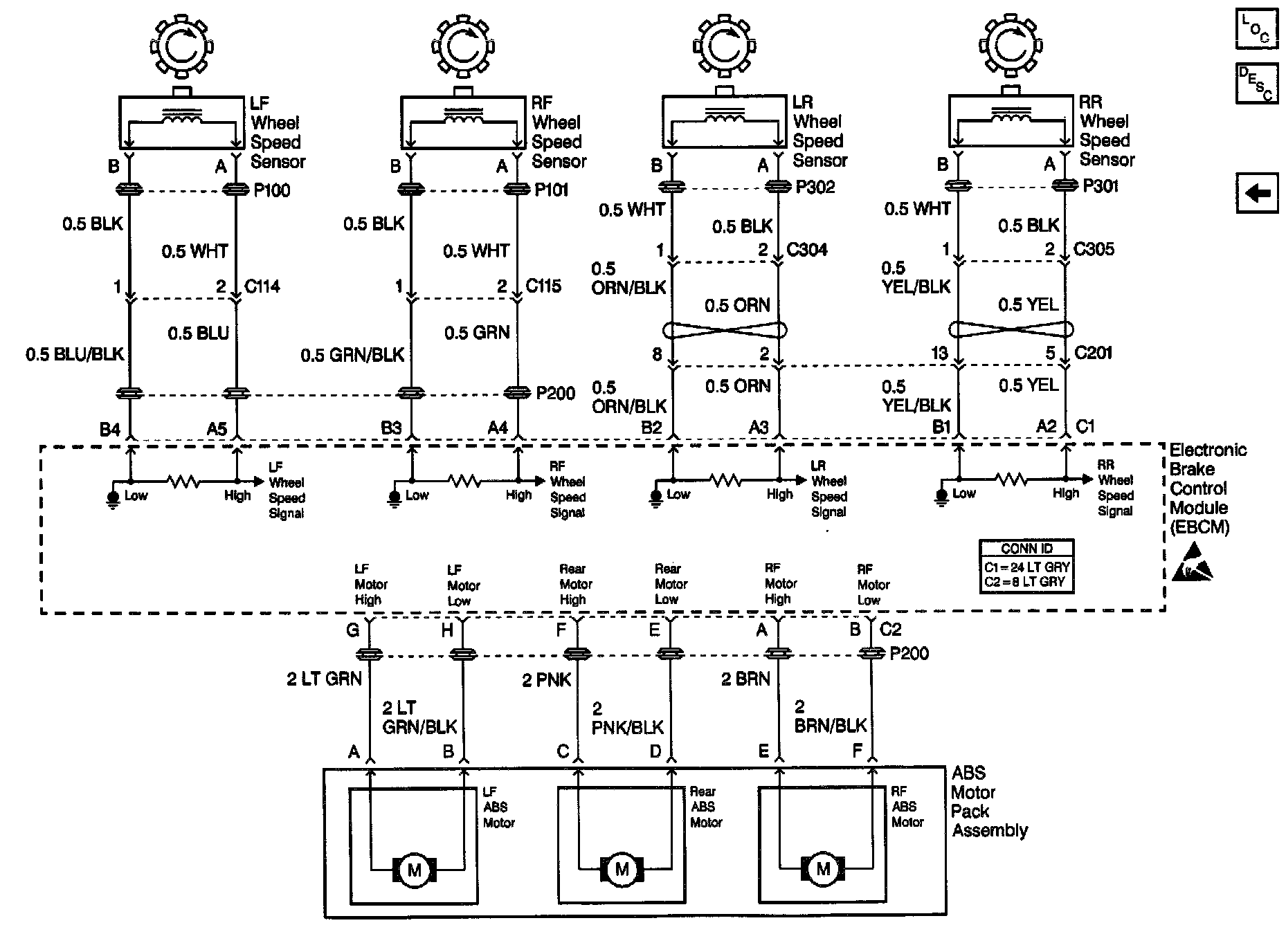

Wheel Speed Sensors and Motor Pack
