Oil Pressure Sensor
Oil Pressure Sensor

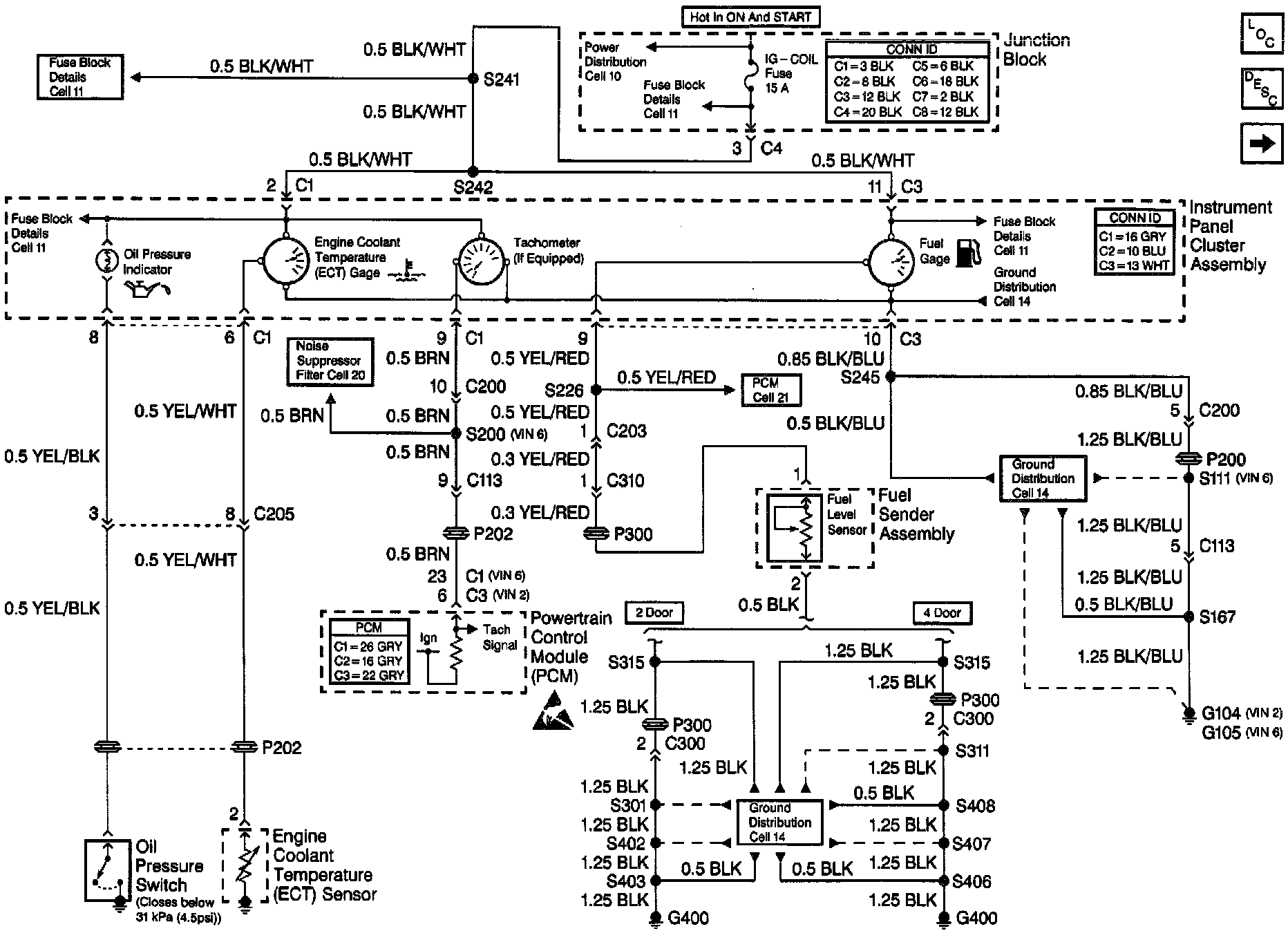

Instrument Cluster: Analog Schematics: Oil Pressure Indicator:
