M60 3-Speed Automatic Transmission

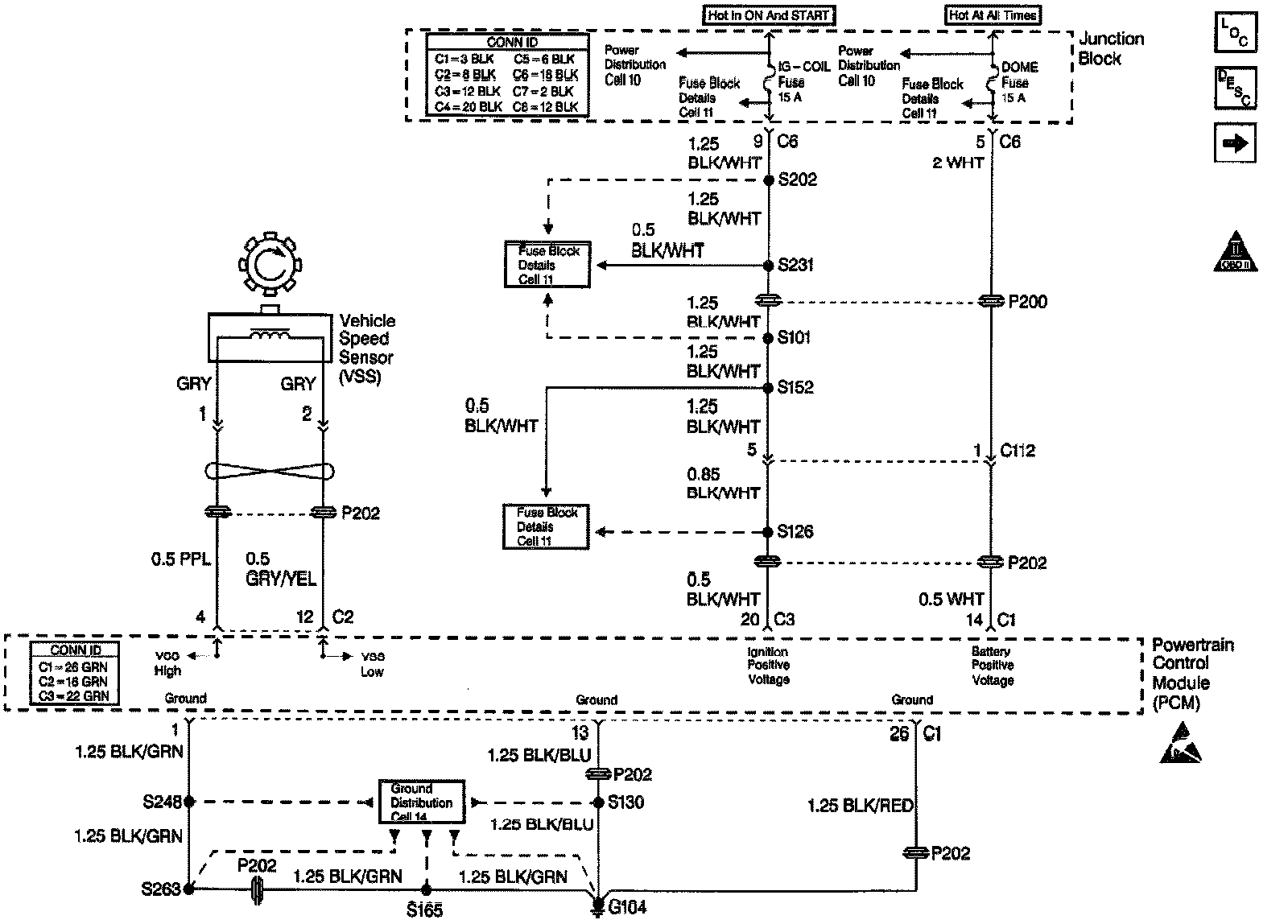

Automatic Transmission Controls Schematics (Cell 39: Power, Ground and VSS)





Automatic Transmission Controls Schematics (Cell 39: TR Switch and Solenoids)
