Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Backup Lights
Backup Lights

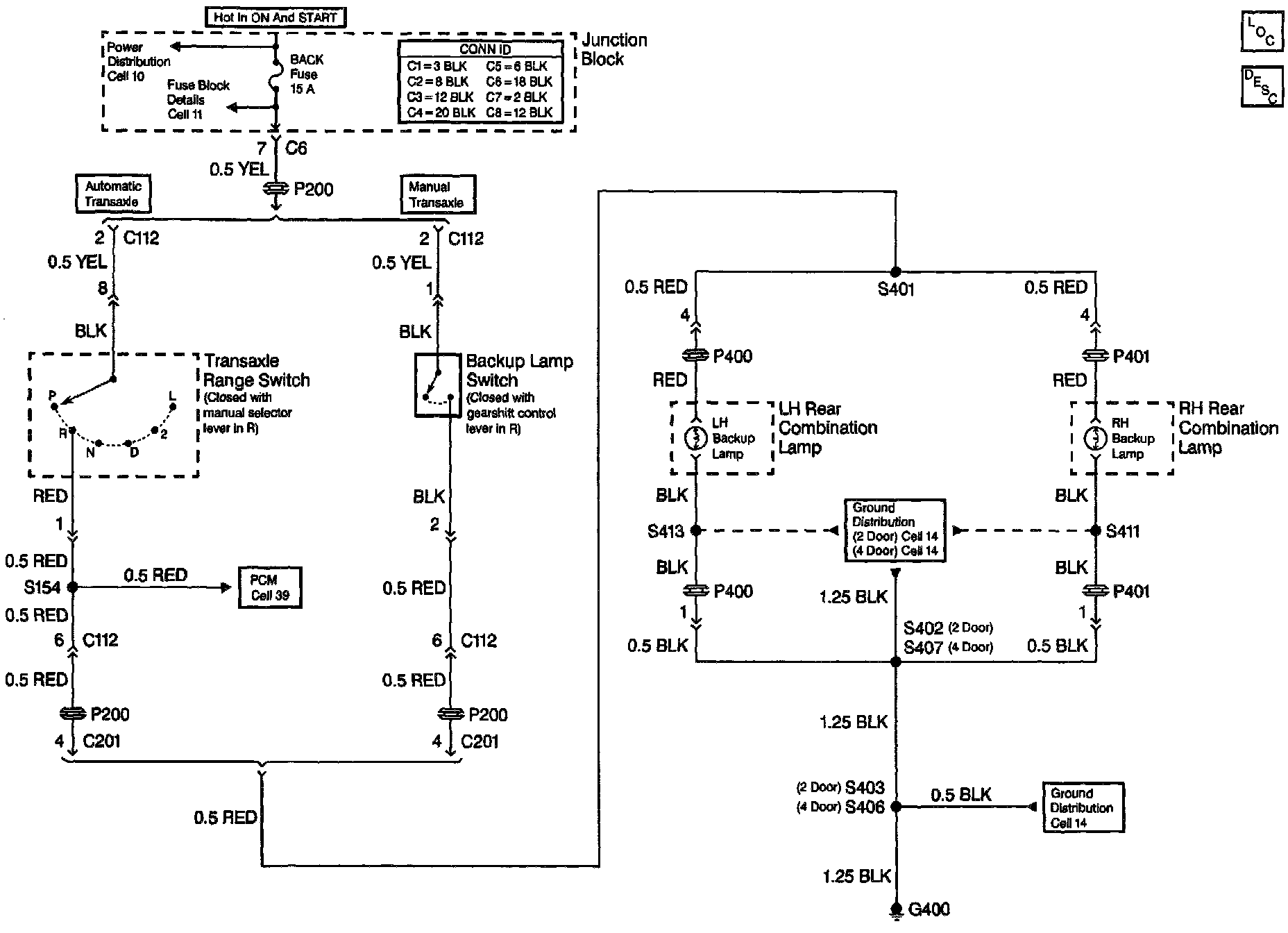

Backup Light Schematics: Backup Lamp Switch:
