Powertrain Controls

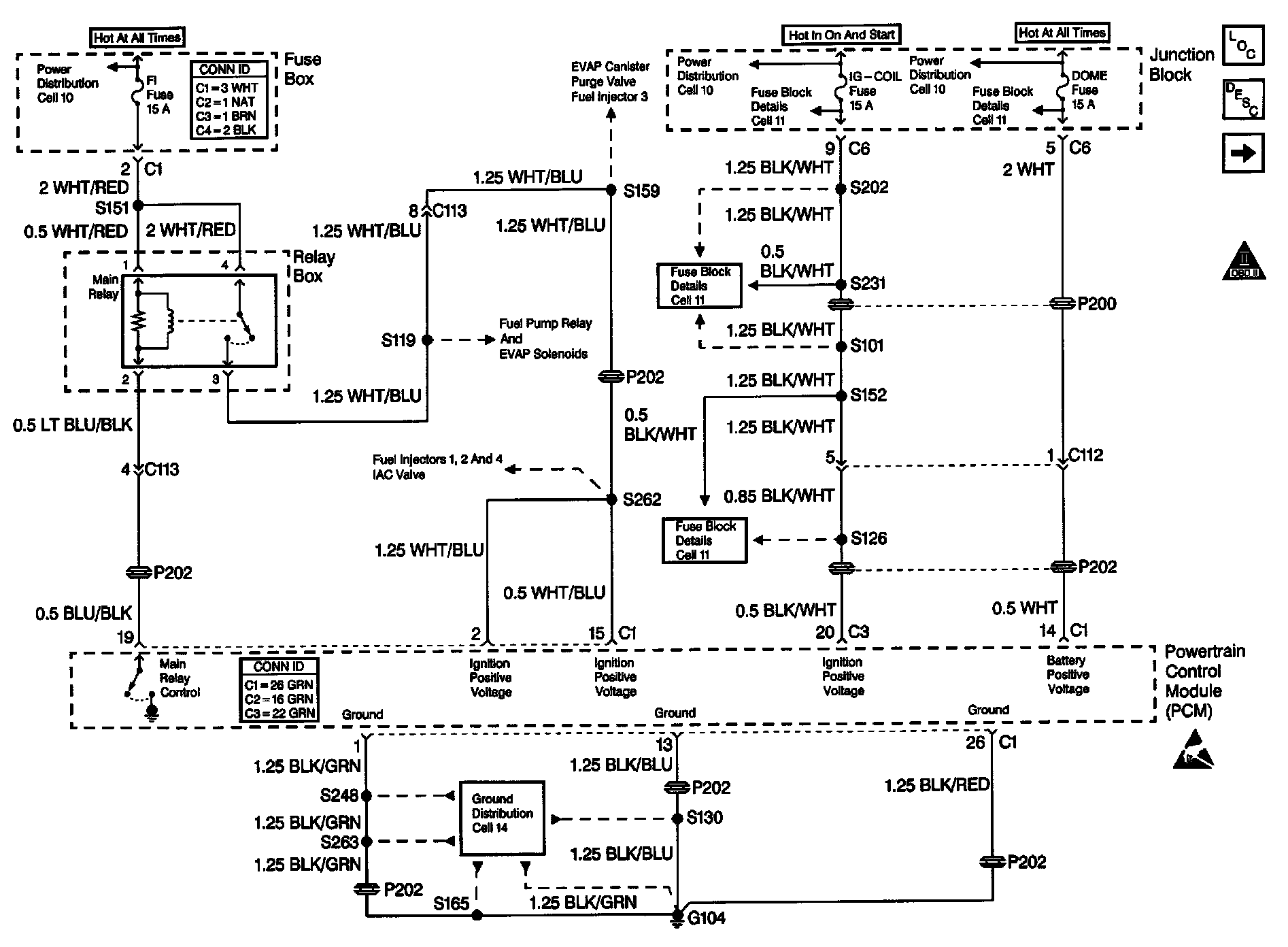

Power and Ground




MIL and DLC

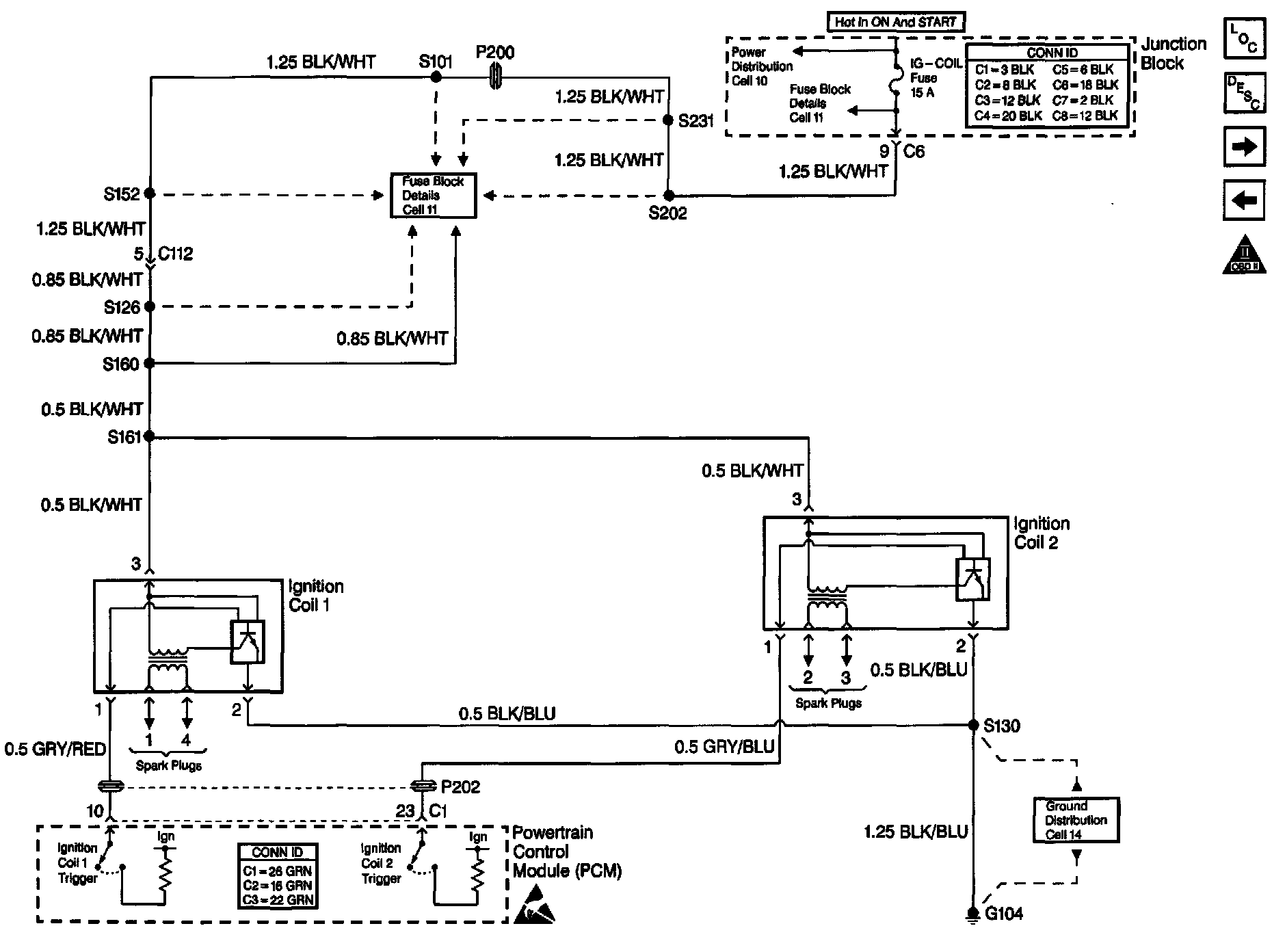

Ignition System

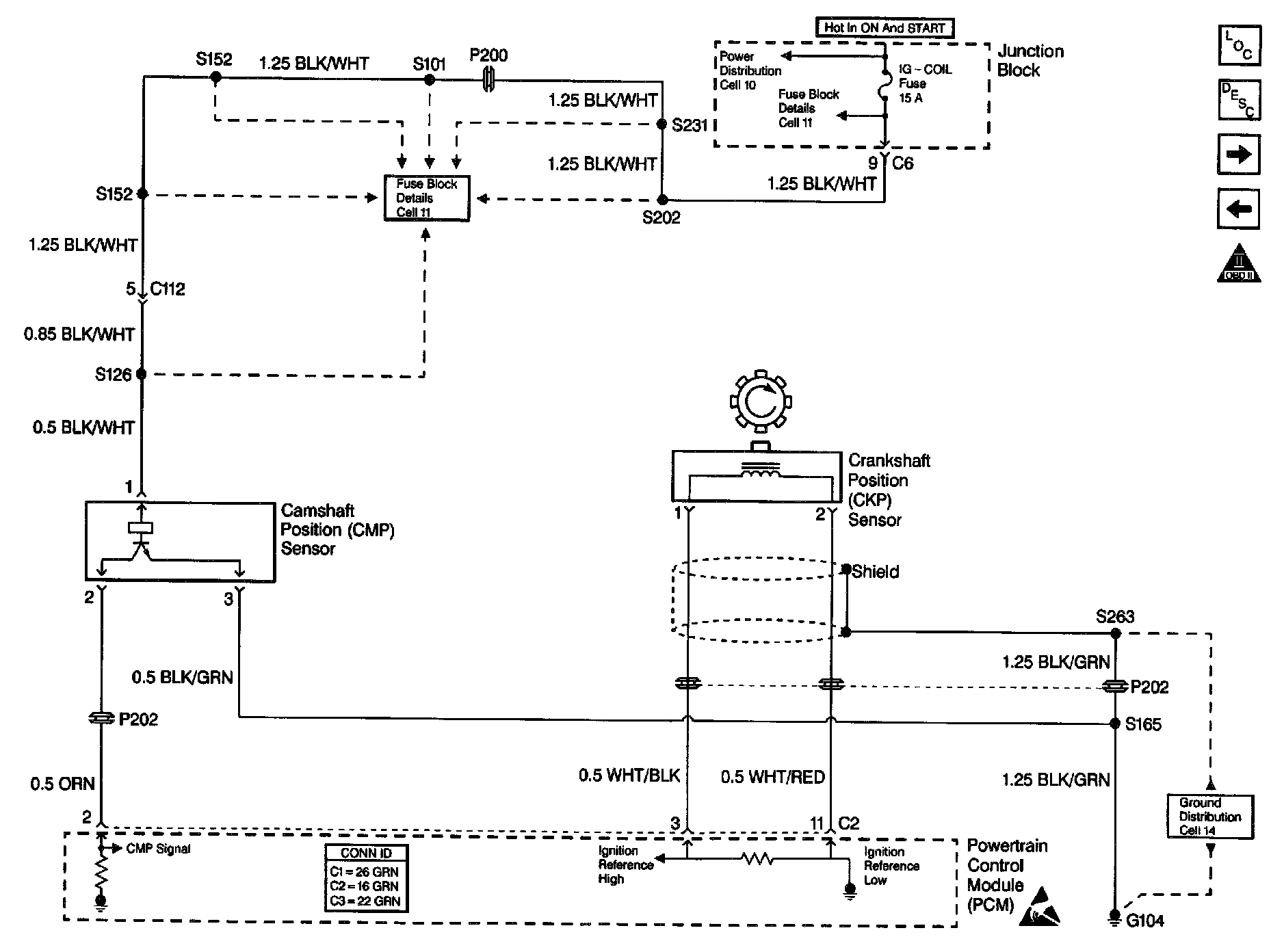

CMP and CKP Sensors




Fuel Supply System

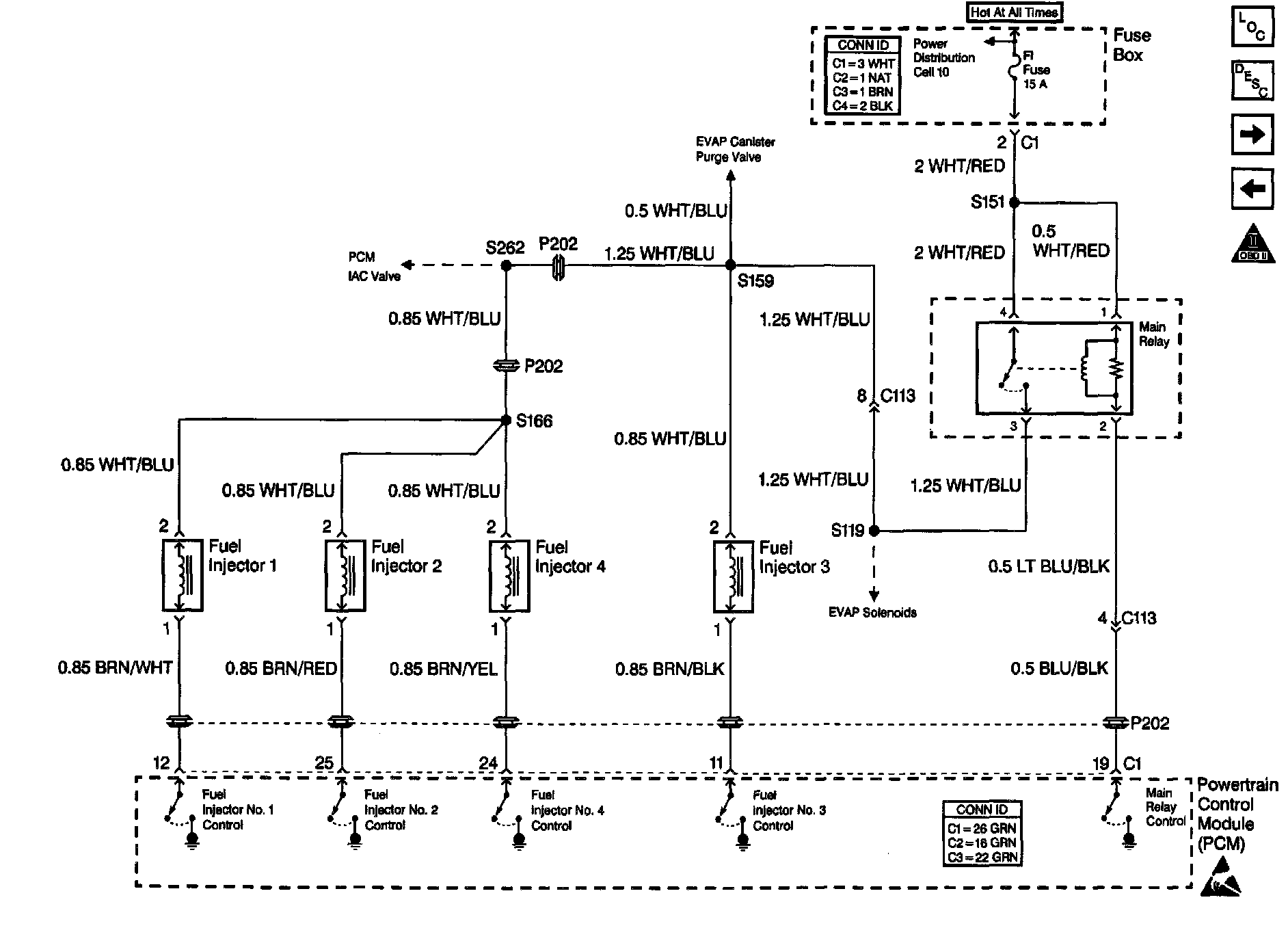

Fuel Injectors

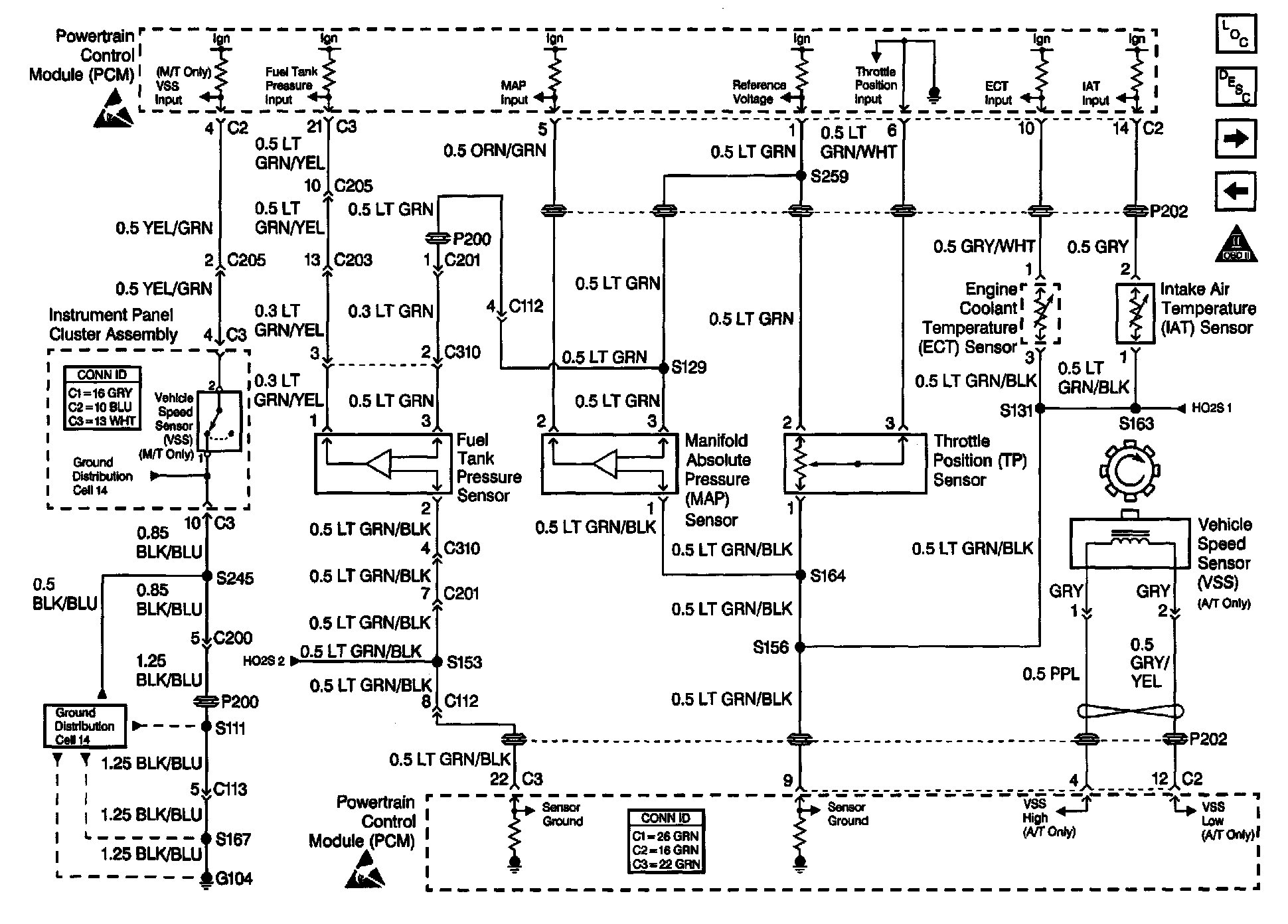

Engine Data Sensors

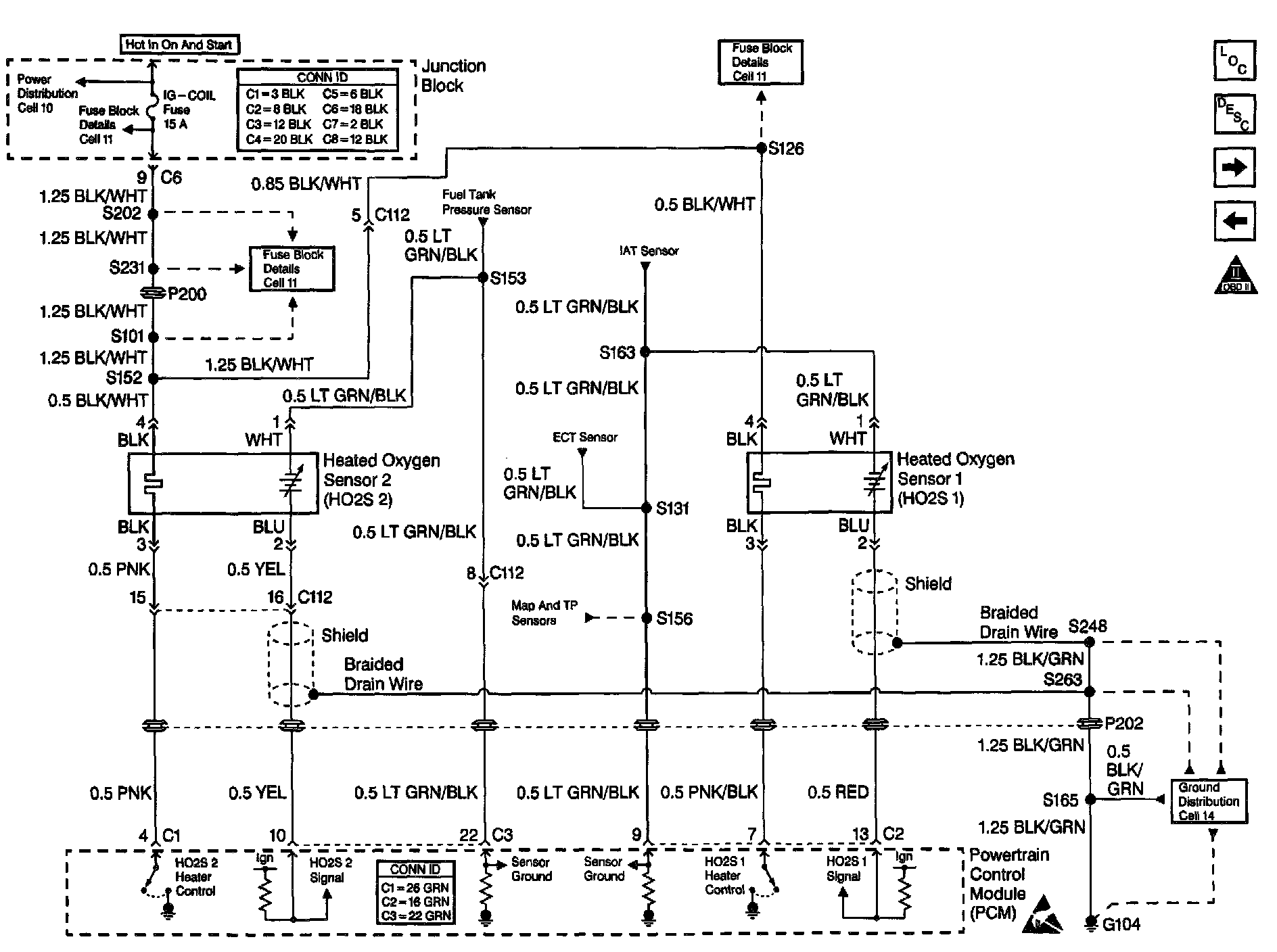

HO2 Sensors

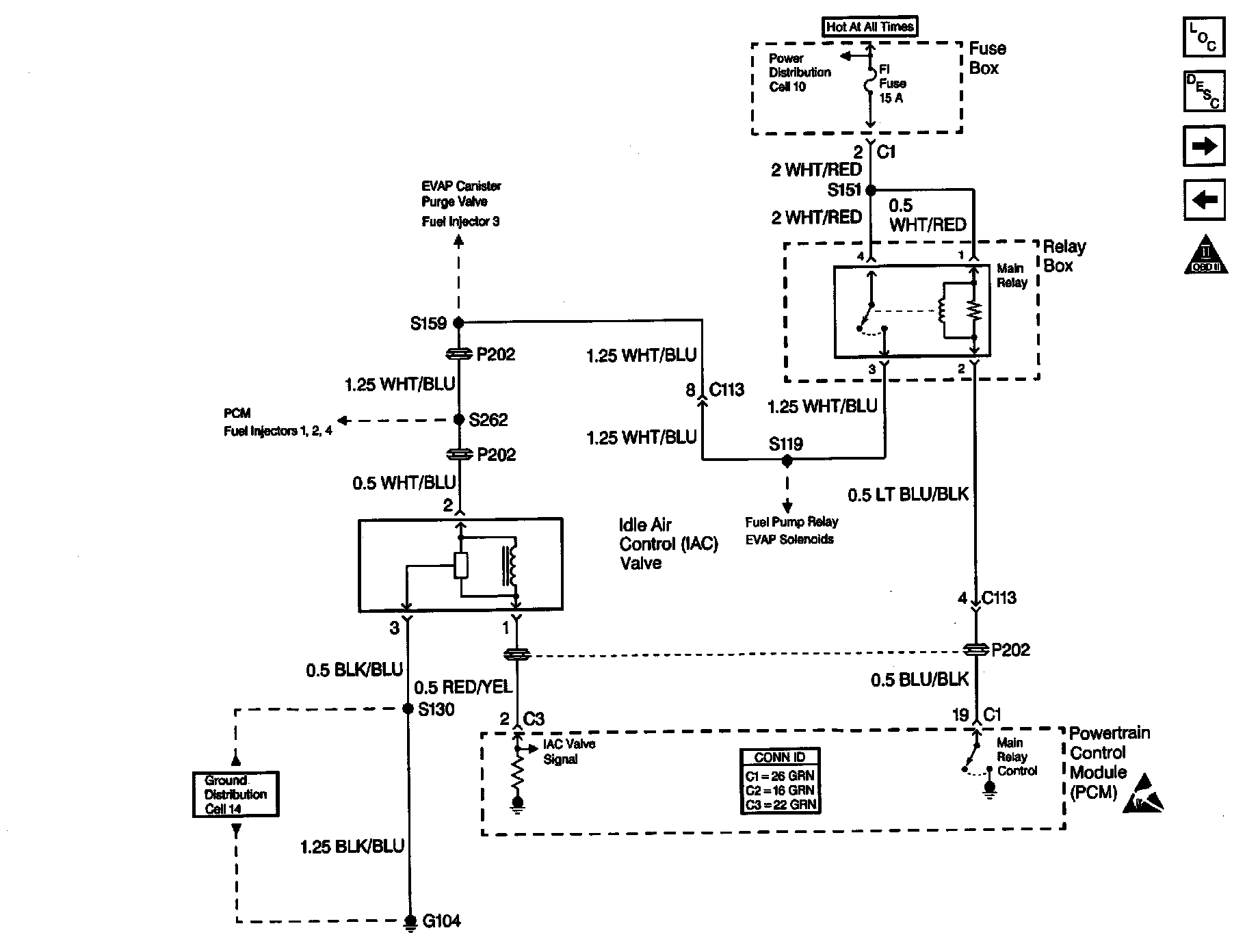

Idle Air Control

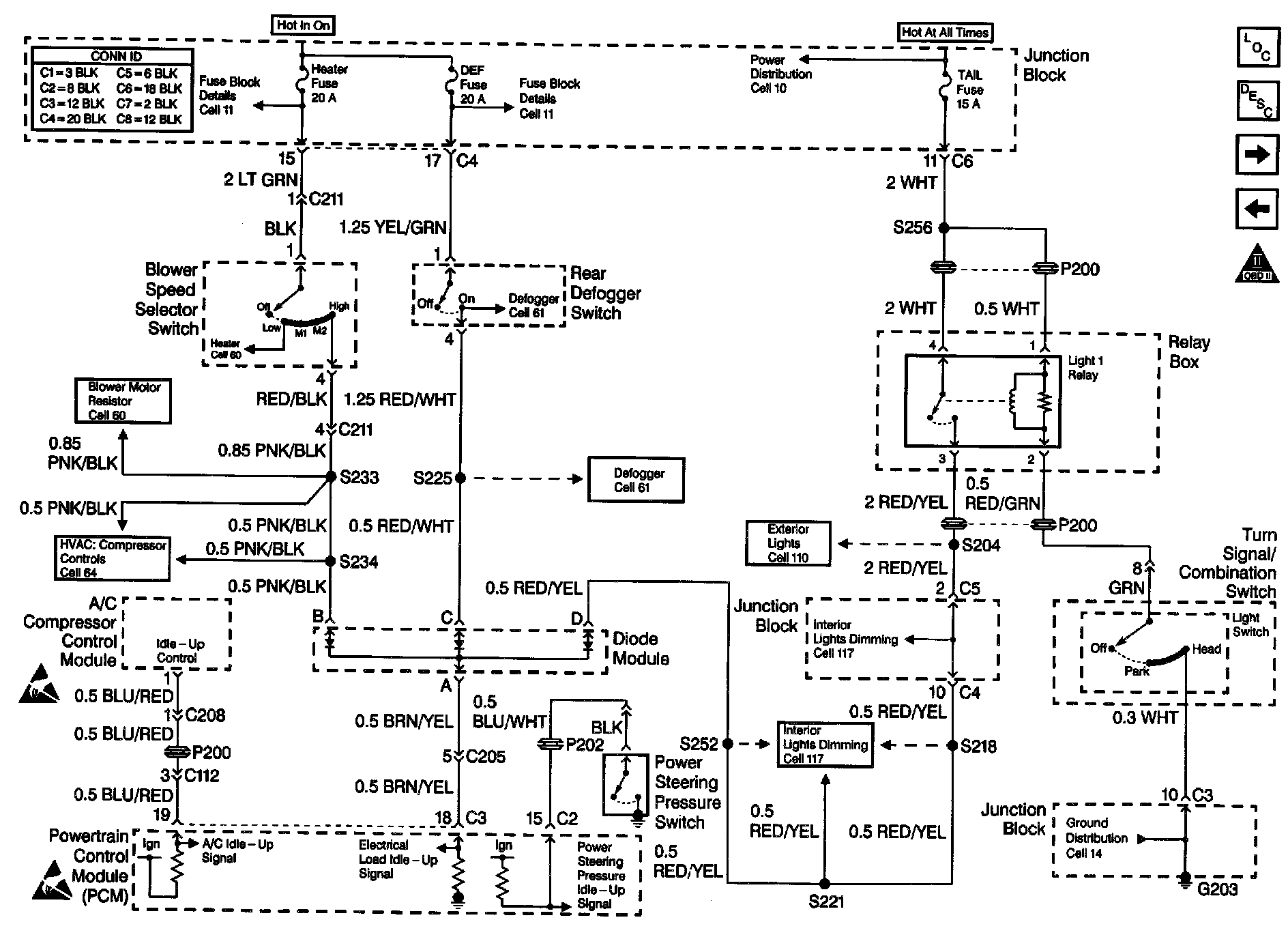

Idle-Up Signals




[1][2]EVAP Controls




A/T Controls

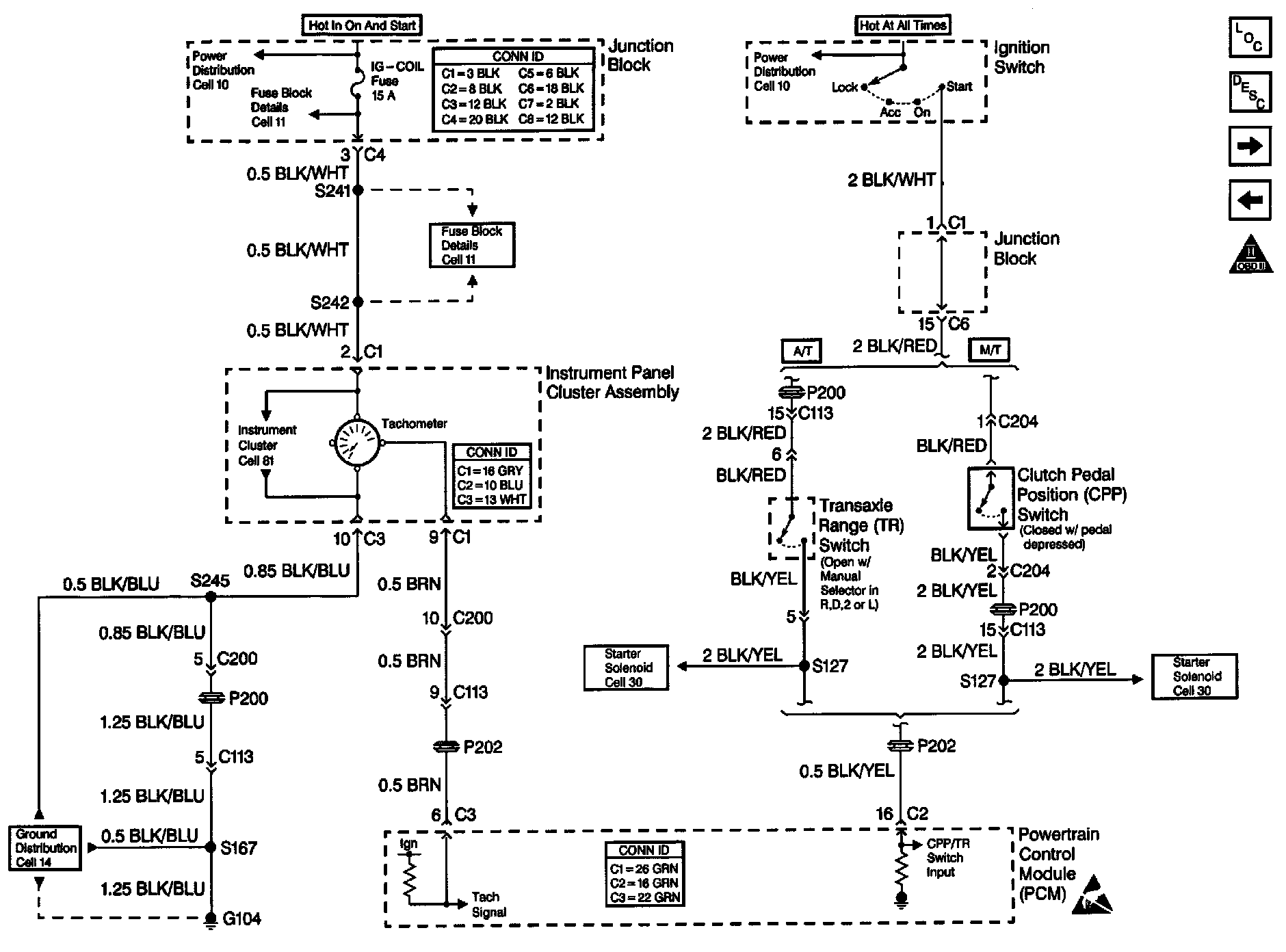

CPP Switch / TR Switch




Cooling Fan and A/C Controls
