Radio Replacement

REMOVAL PROCEDURE




1. Remove the instrument panel cluster trim plate.

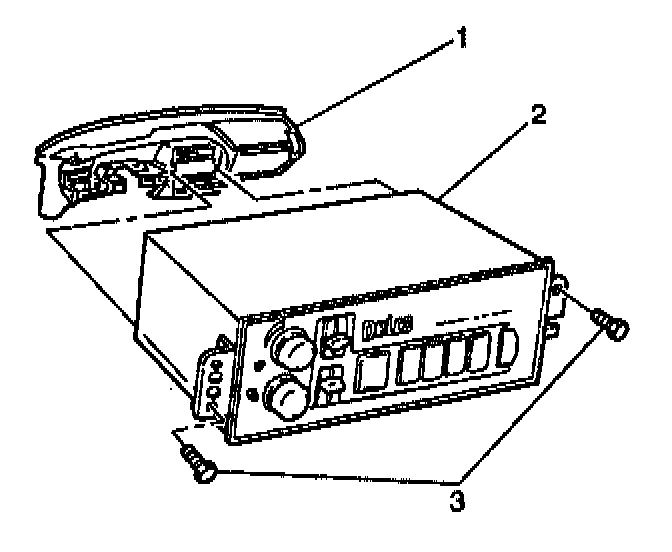

2. Remove the bolts/screws (3) from the radio (2).
3. Remove the radio (2) from the instrument panel (1).

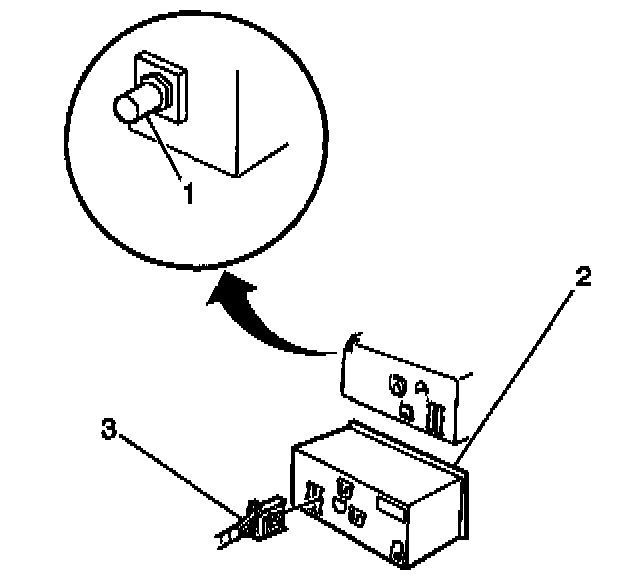

4. Disconnect the electrical connector (3).

INSTALLATION PROCEDURE




1. Connect the electrical connector (3).




2. Align the radio (2) to the instrument panel (1).
3. Push the radio (2) into place.

NOTE: Refer to Fastener Notice in Cautions and Notices.

4. Install the bolts/screws to the radio (3).

Tighten
Tighten the radio bolts/screws to 2 N.m (18 lb in).

5. Install the instrument panel cluster trim plate.
