Shift Solenoid, A/T

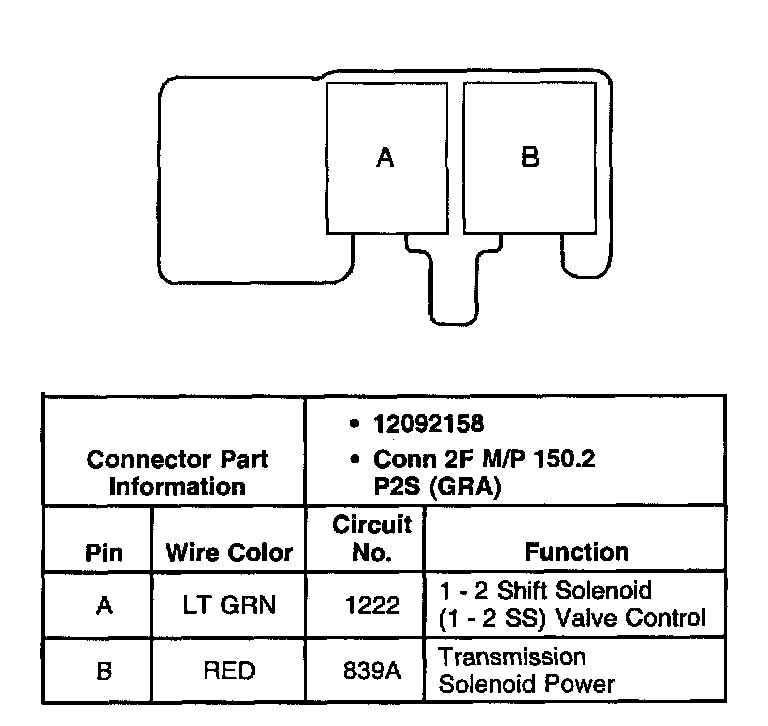

1 - 2 Shift Solenoid Valve Connector, Wiring Harness Side

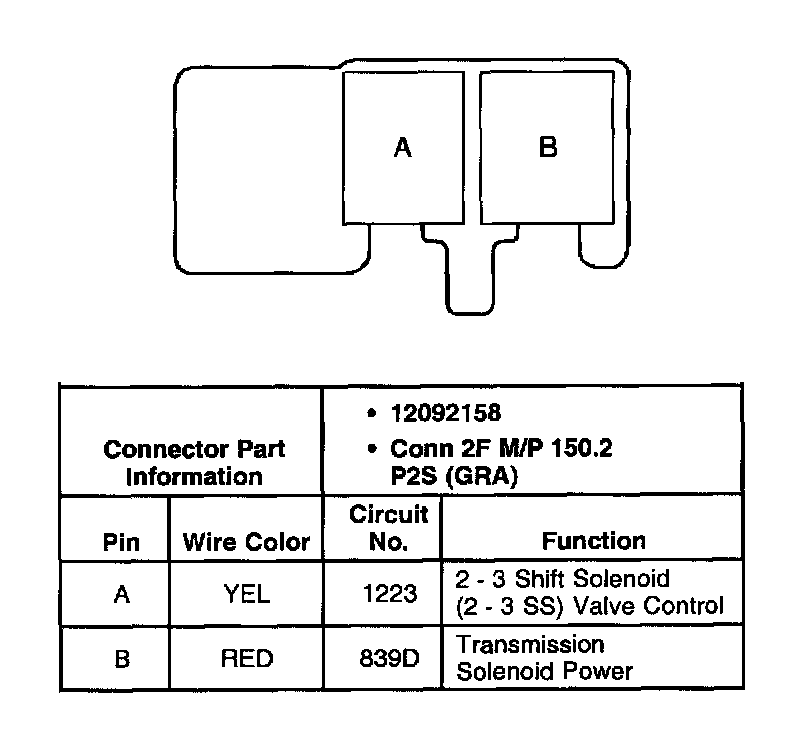

2 - 3 Shift Solenoid Valve Connector, Wiring Harness Side
