Monte Carlo V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C200 (Row 3-6)
C200 (Row 3-6)

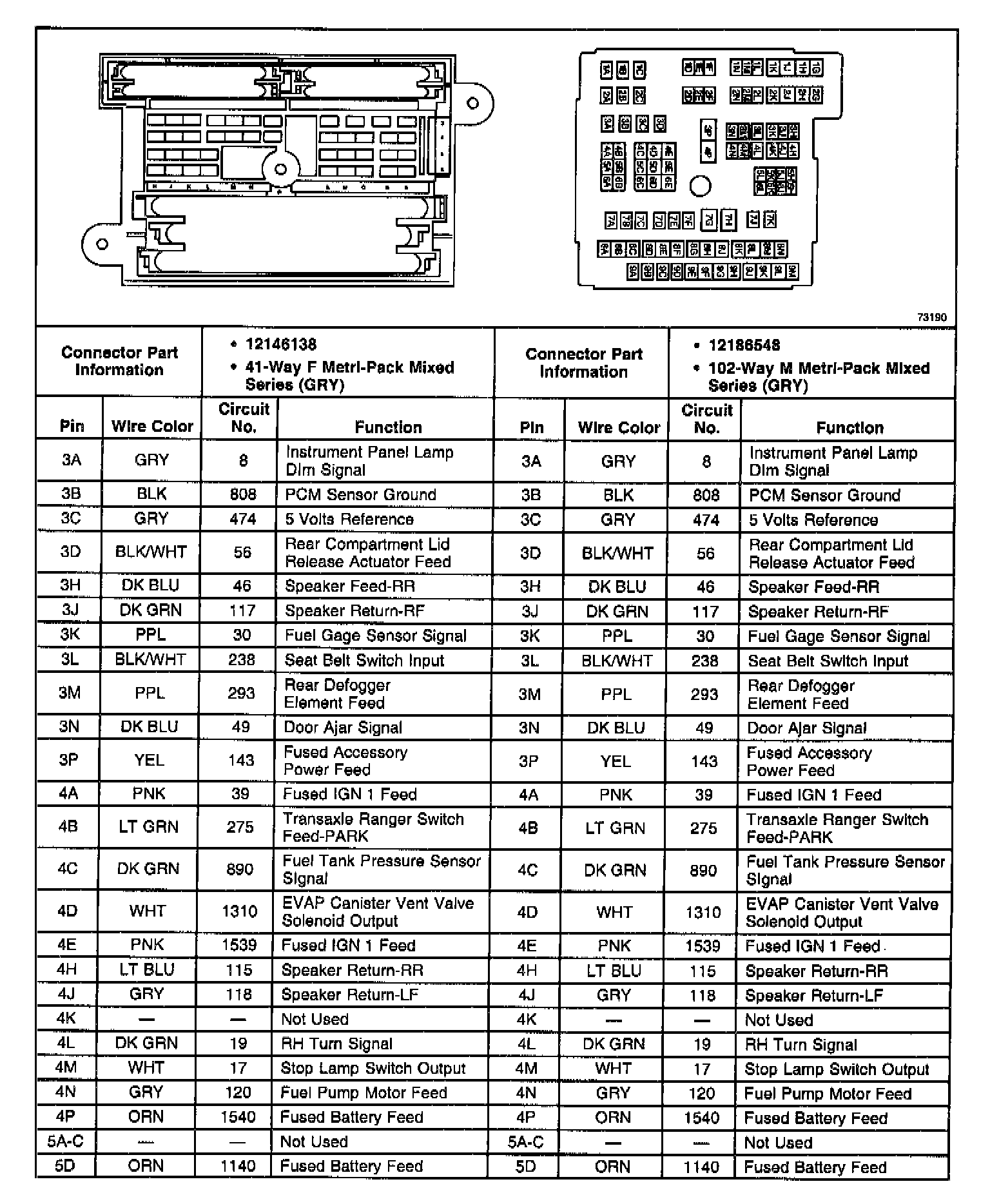

C200 (Row 3-6) (Part 1 Of 3):

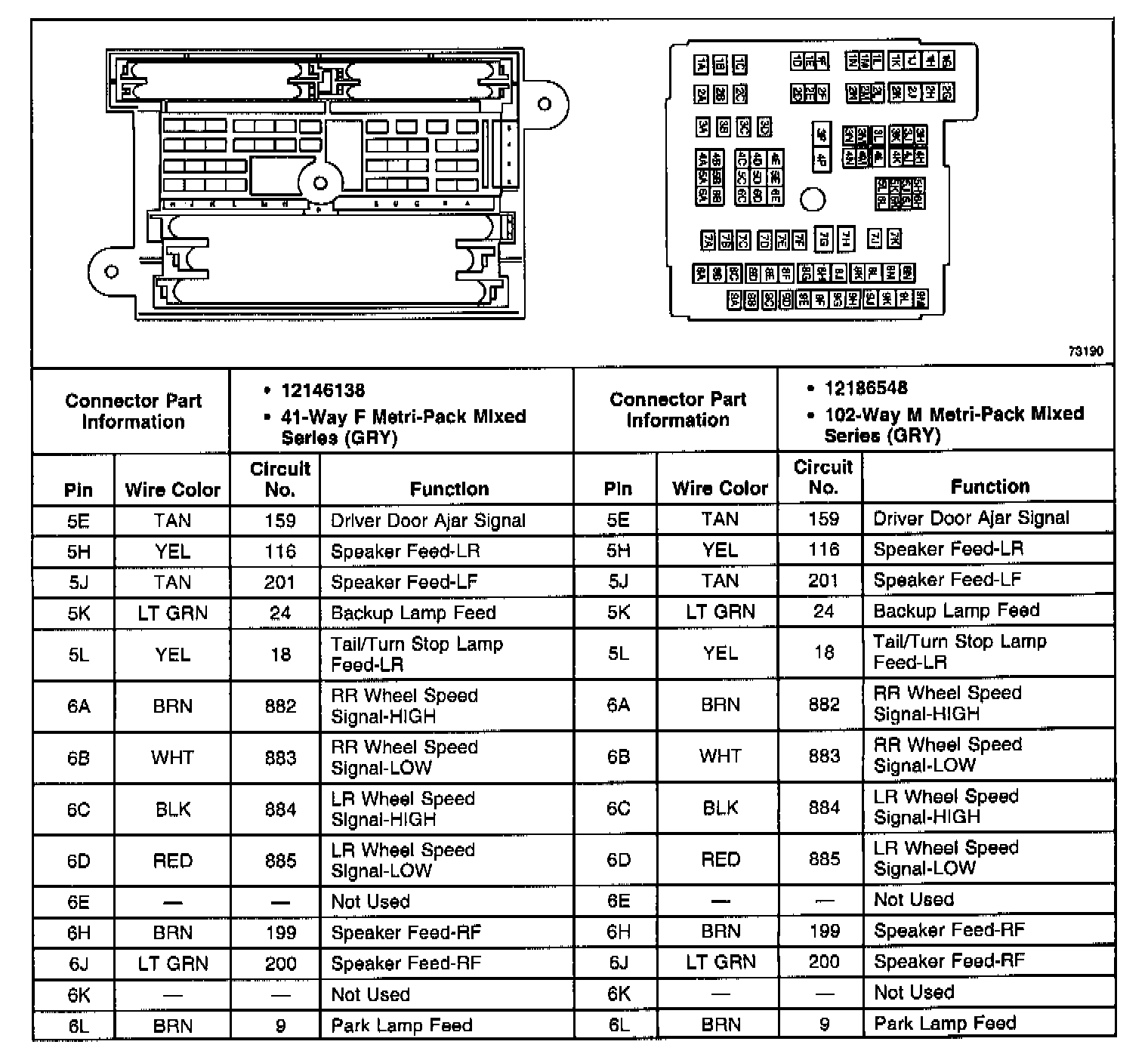

C200 (Row 3-6) (Part 2 Of 3):

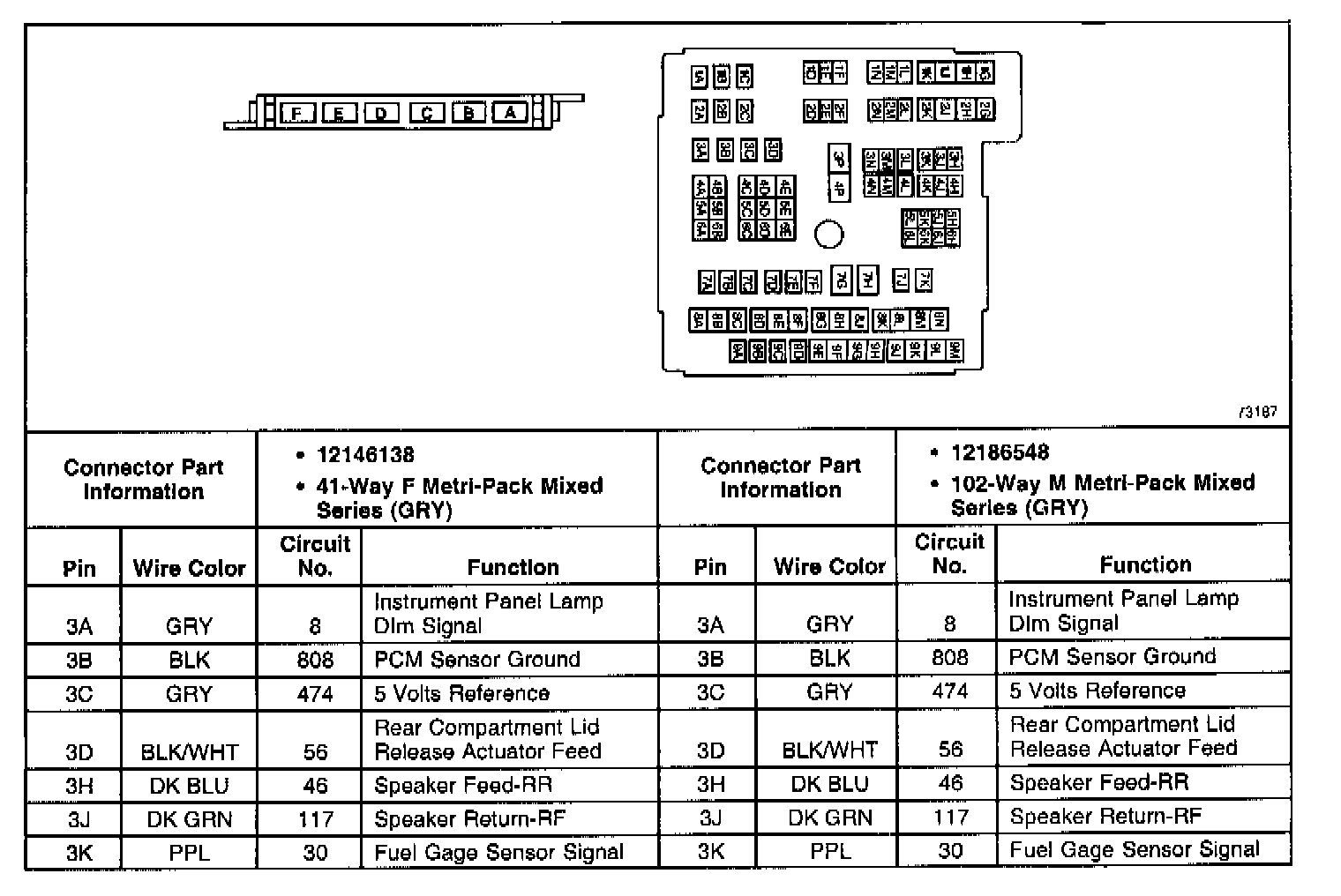

C200 (Row 3-6) (Part 3 Of 3):
