Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 1999 >> Monte Carlo V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C210

C210

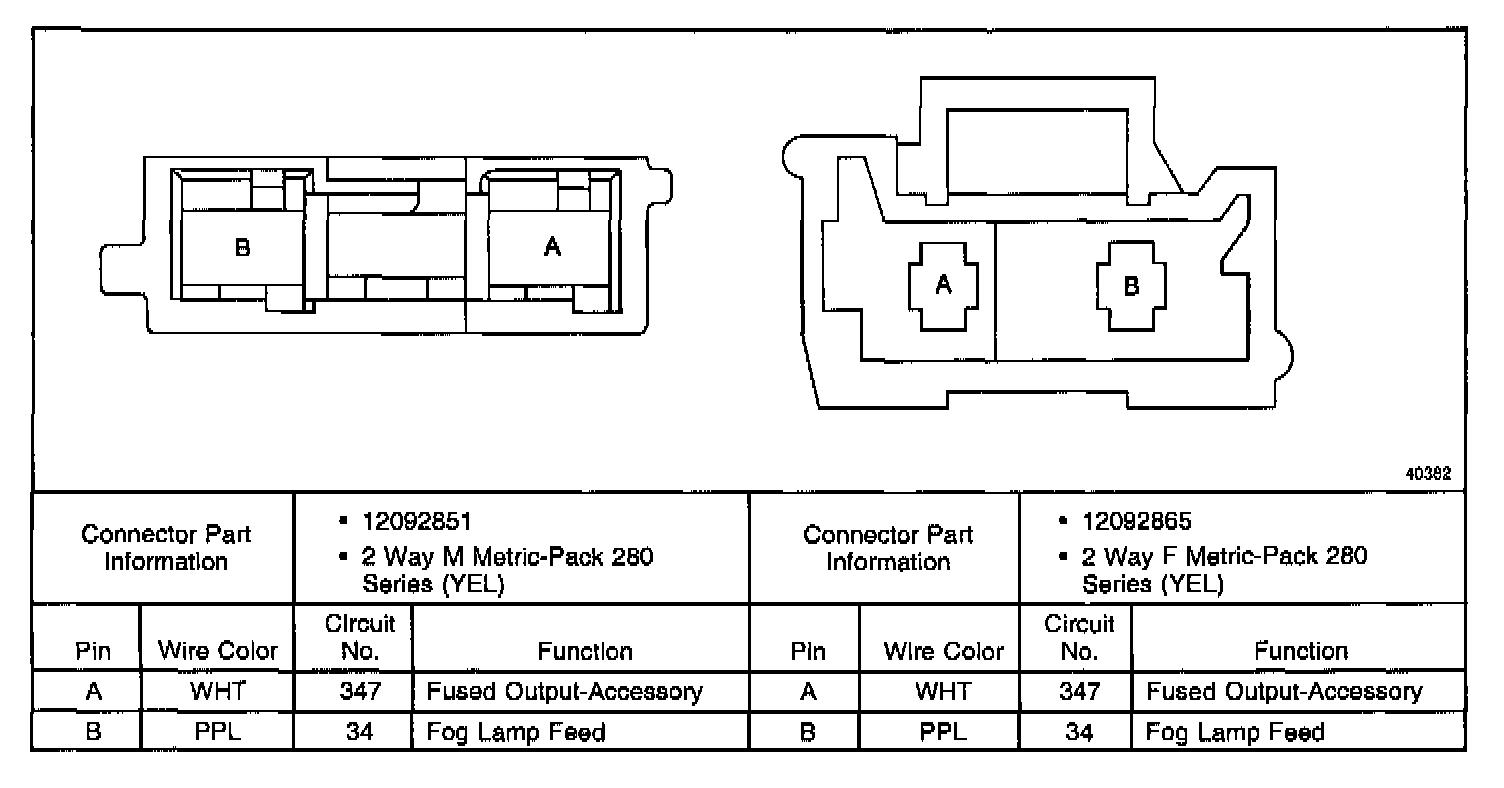

C210 (Part 1 Of 2):



C210 (Part 2 Of 2):
