Monte Carlo V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C219 (J41)
C219 (J41)

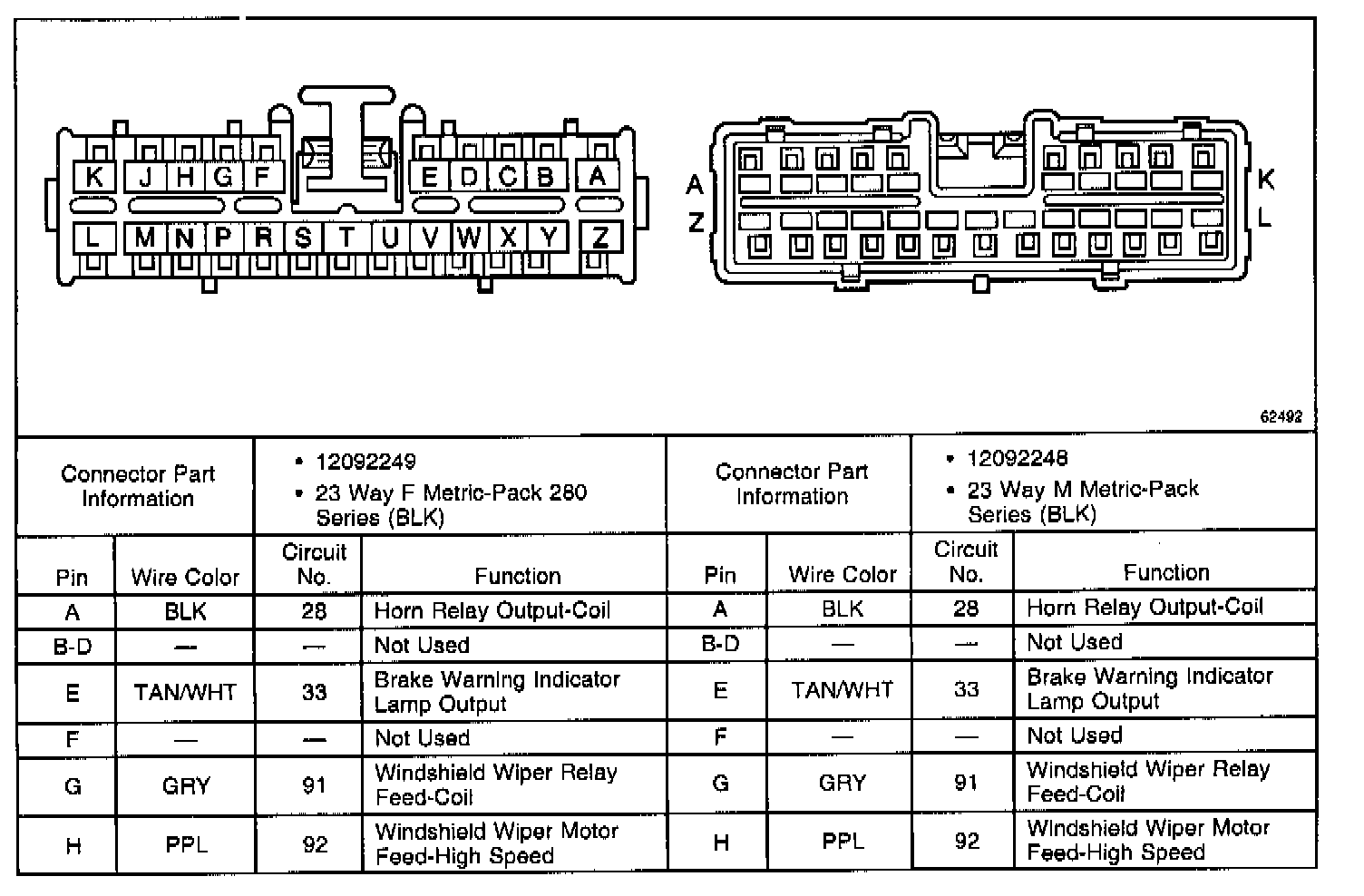

C219 (J41) (Part 1 Of 2):

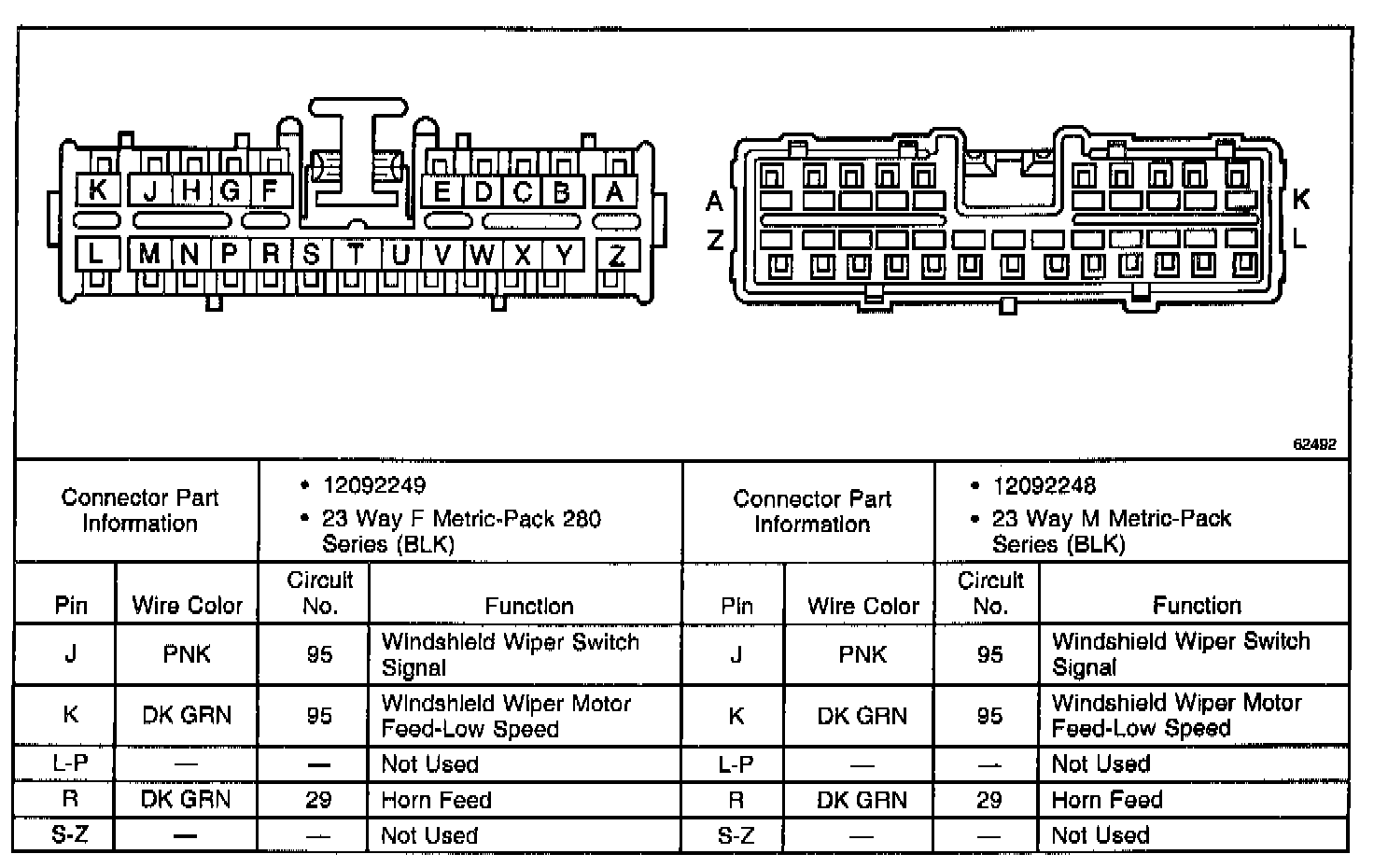

C219 (J41) (Part 2 Of 2):
