Home >> Chevrolet >> 1999 >> Monte Carlo V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Heater-A/C Control, C1

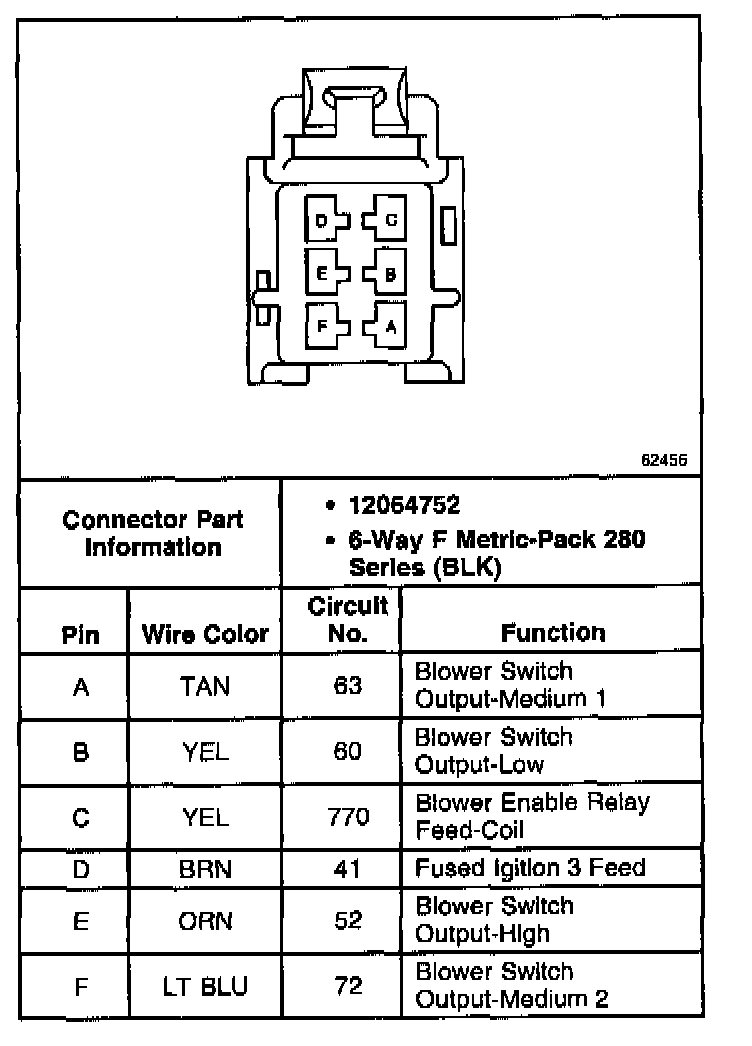

Heater-A/C Control, C1

Heater-A/c Control, C1:
