Monte Carlo V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Heater-A/C Control, C2
Heater-A/C Control, C2

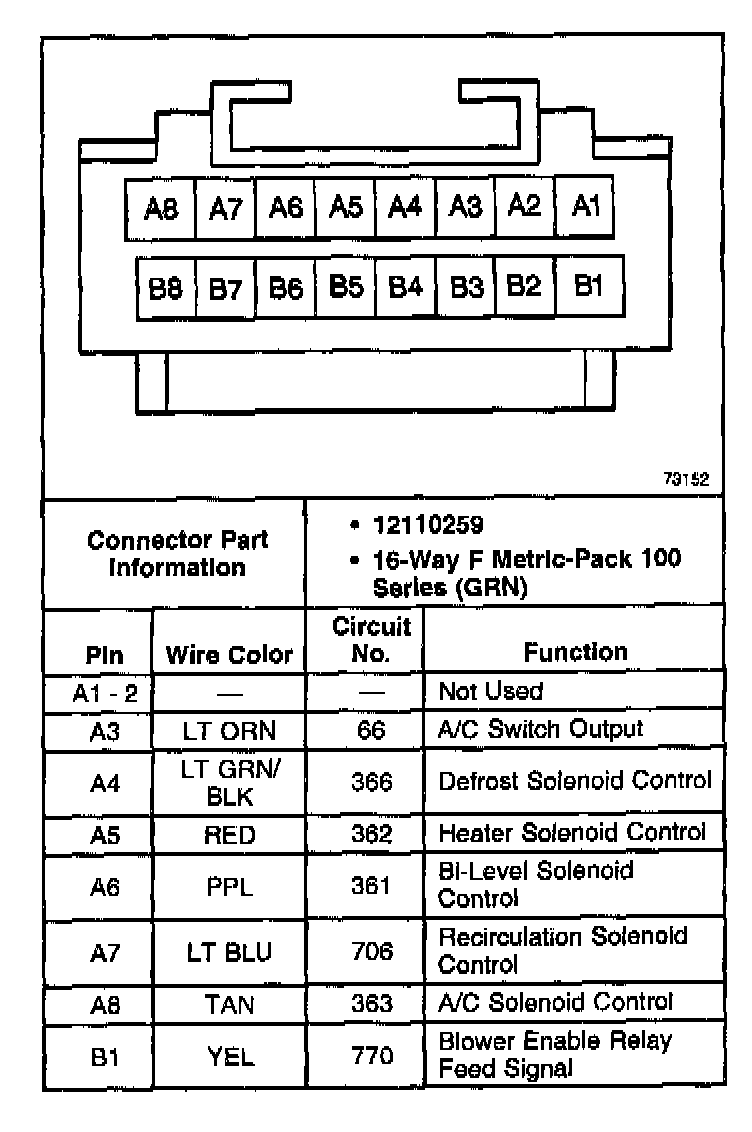

Heater-A/c Control, C2 (Part 1 Of 2):

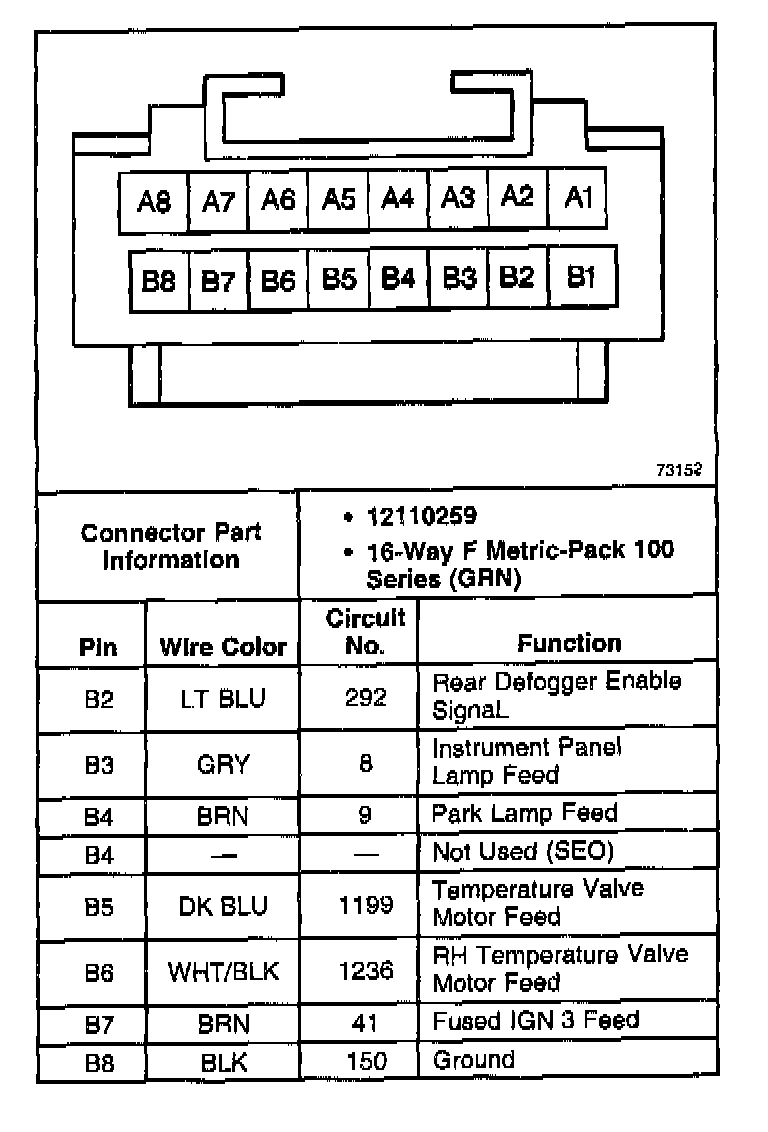

Heater-A/c Control, C2 (Part 2 Of 2):
