Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Monte Carlo V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Door Lock Switch, RH

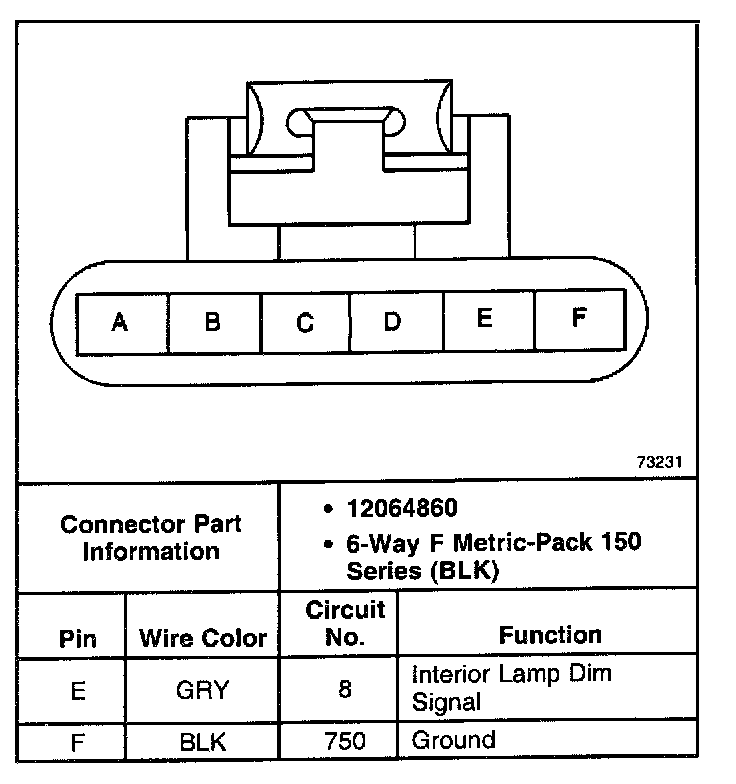

Door Lock Switch, RH
Door Lock Switch, RH (Part 2 Of 2):
Door Lock Switch, RH (Part 1 Of 2):
