Power, Ignition SW, Transaxle Range SW, Theft Deterrent Relay
Power, Ignition SW, Transaxle Range SW, Theft Deterrent Relay

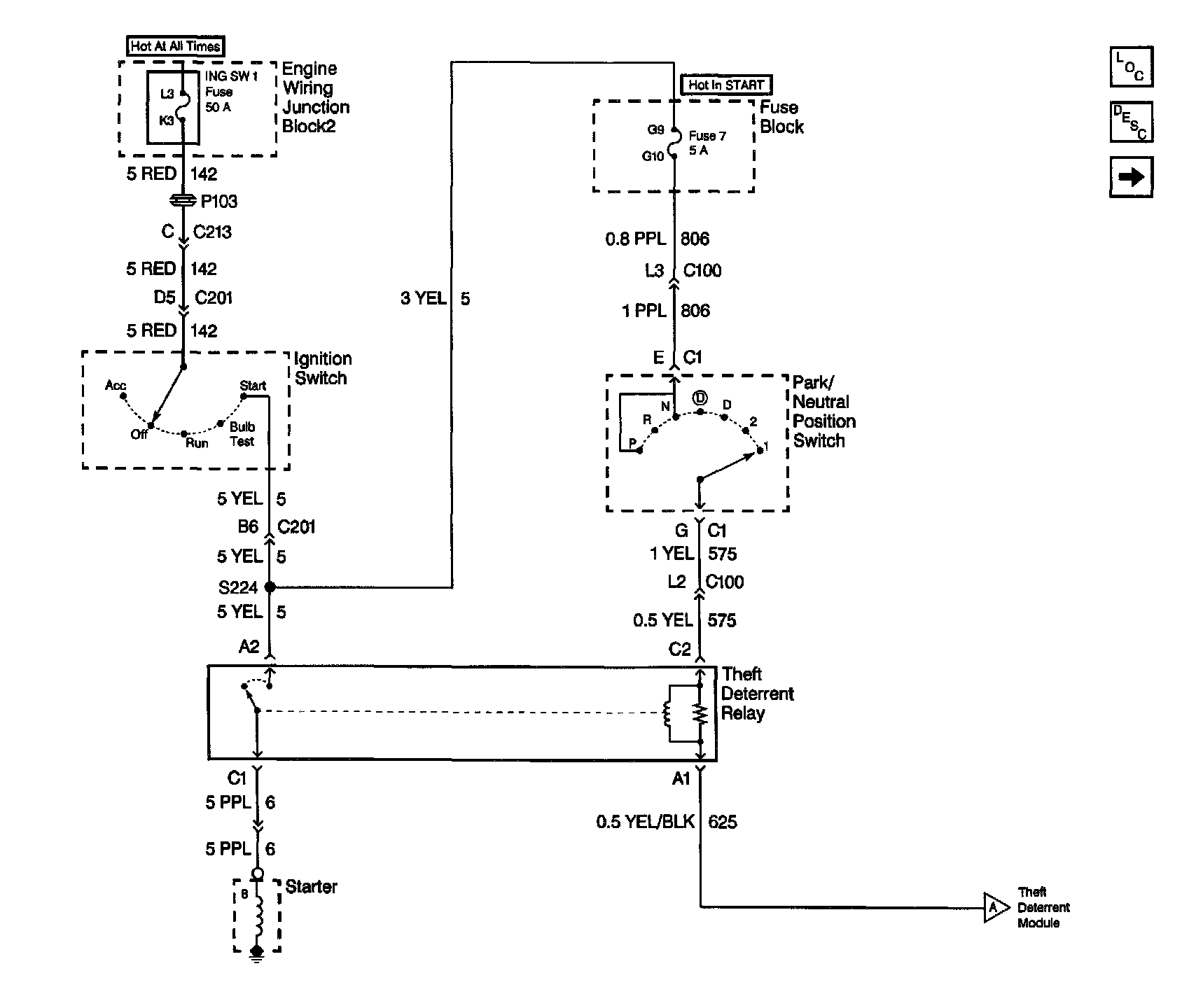

Theft Deterrent System Schematics: Power, Ignition Switch, Transaxle Range Switch, Theft Deterrent Relay:
