Monte Carlo V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
G200 - G299
>>
G204 (SEO)
G204 (SEO)

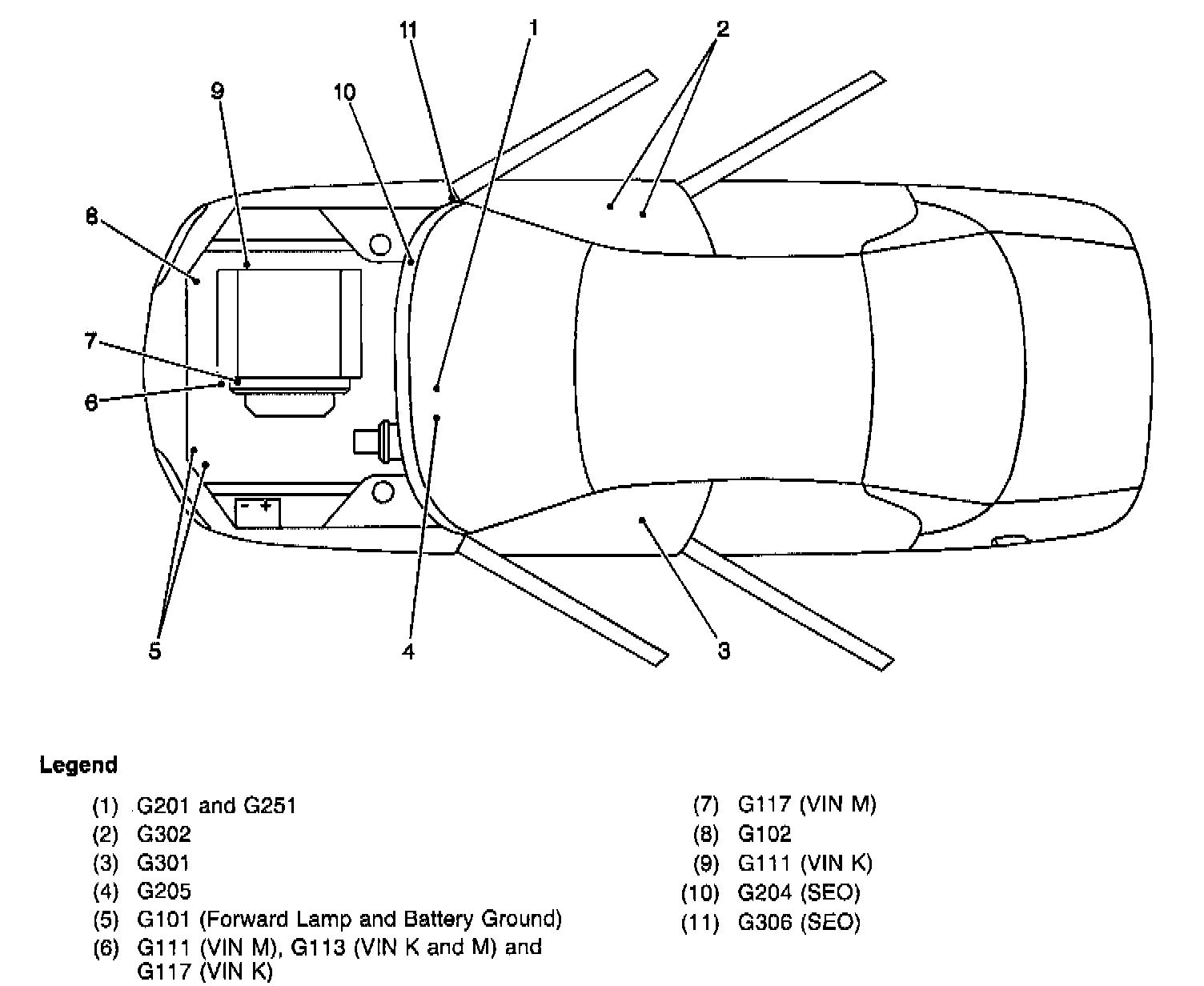

Ground Distribution Schematics: Overhead View Of Vehicle For Grounding Points:
