HVAC Compressor Control Schematics
HVAC Compressor Control Schematics

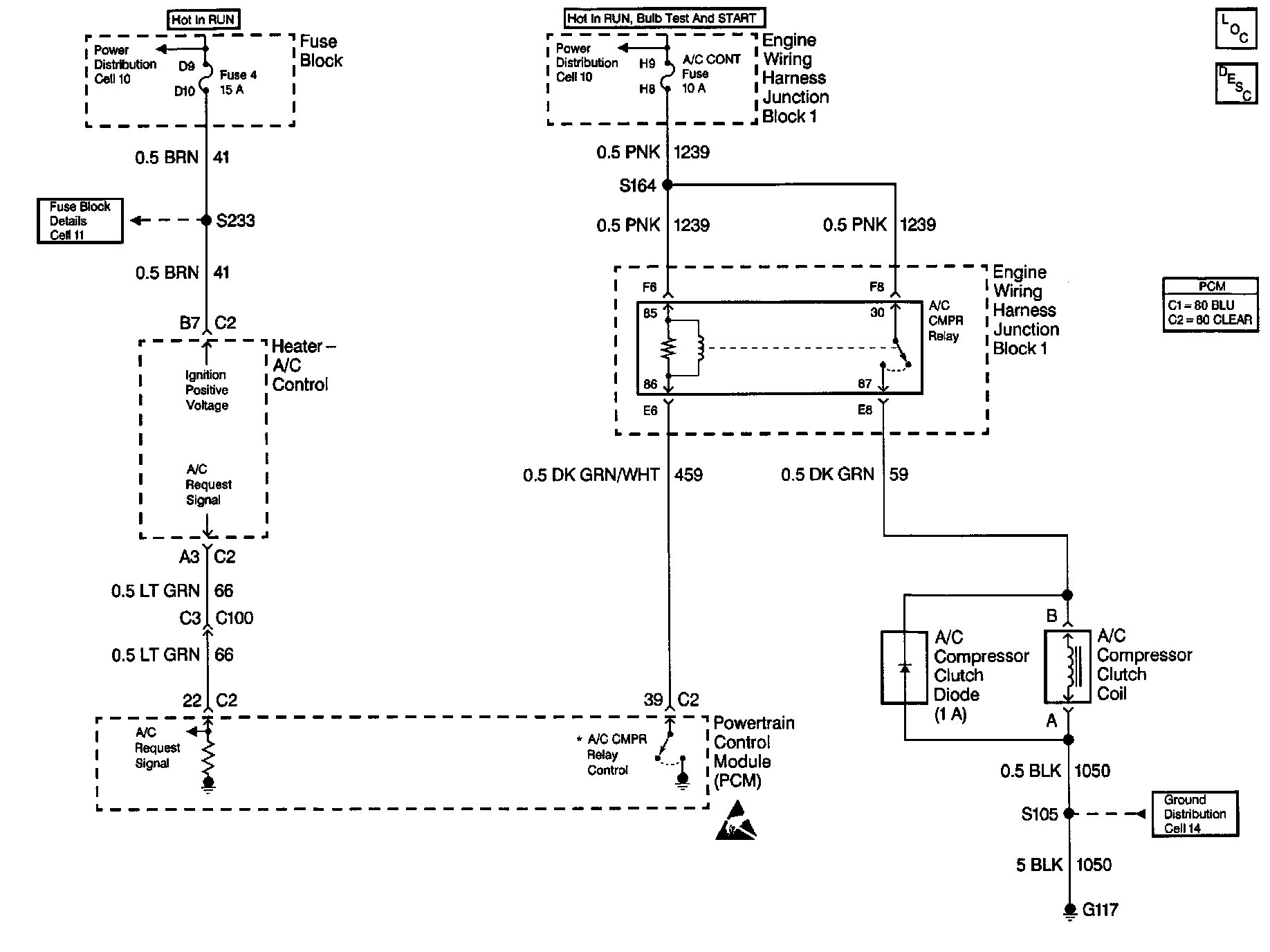

HVAC Compressor Control Schematics - Manual:
