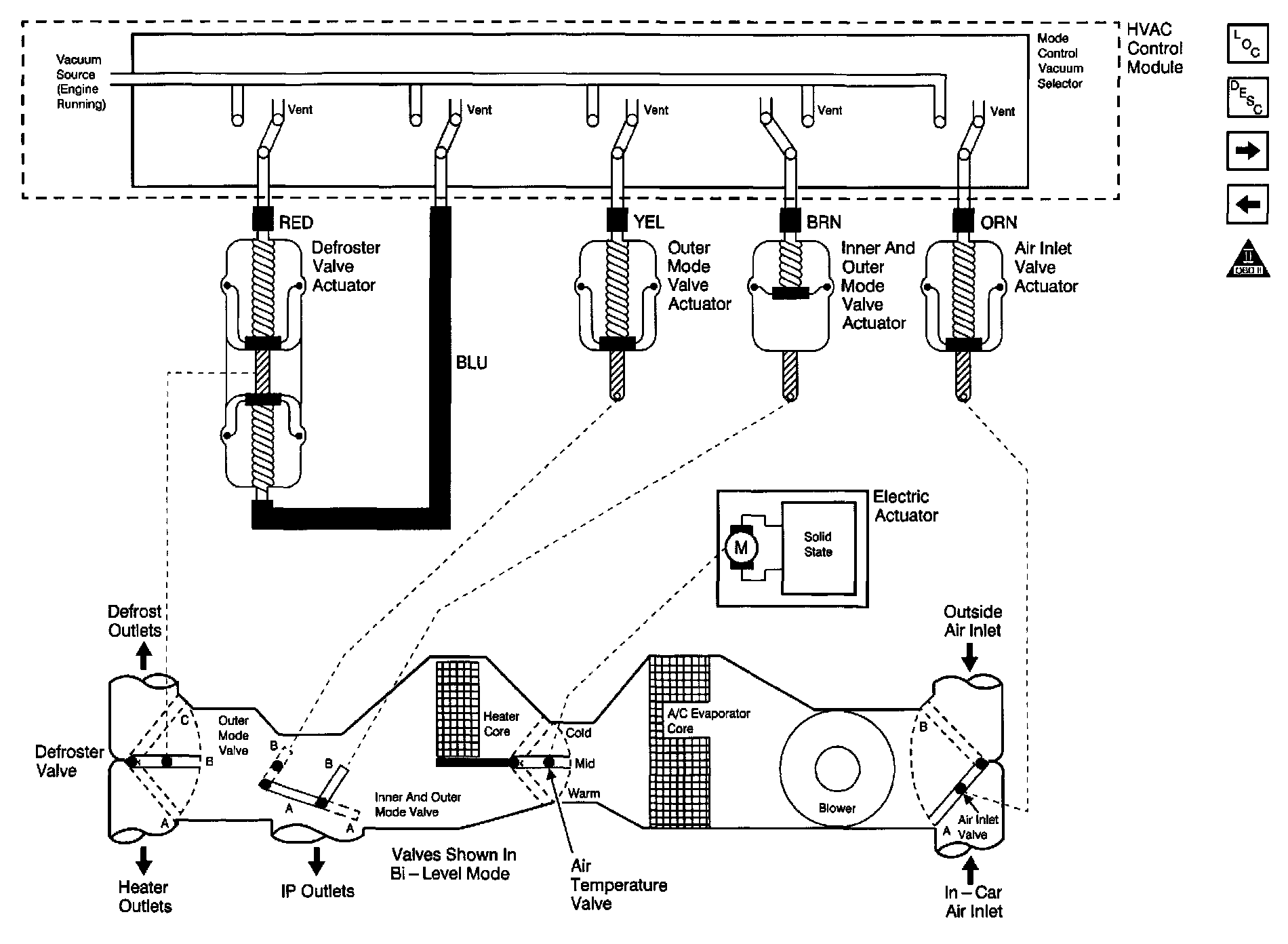

Air Delivery Control - Single Zone (RPO C60)

HVAC Air Delivery Schematics - Air Delivery Control - Single Zone (RPO C60) Manual:
