Window Panel Lamp Replacement - Rear (SEO) (RPO 6J6)

REMOVAL PROCEDURE
1. Remove the rear seat cushion.
2. Remove the rear seat back.

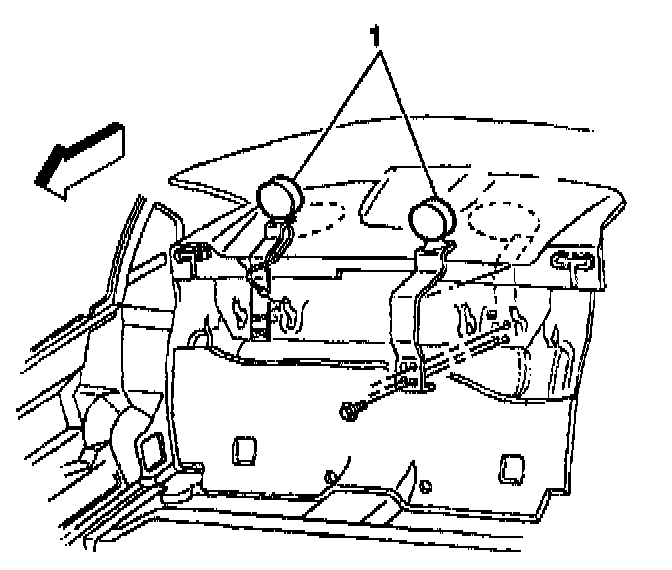

3. Disconnect the electrical connector(s) from the rear window panel lamp(s) (1) to be removed.
4. Remove the bolts retaining the lamp bracket(s) to the rear window panel.
5. Remove the rear window panel lamp(s) with bracket(s).

INSTALLATION PROCEDURE
1. Install the rear window panel lamp(s) with bracket(s) into position on the rear window panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the rear window panel lamp bracket to rear window panel retaining bolts.

Tighten
Tighten the rear window panel lamp bracket retaining bolts to 1.5 N.m (13 lb in).

3. Connect the electrical connector(s) to the rear window panel lamp(s).
4. Install the rear seat back.
5. Install the rear seat cushion.
