Home >> Chevrolet >> 1999 >> Monte Carlo V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Starting and Charging >> Diagrams >> Electrical Diagrams >> Battery, Ignition Switch, Theft Deterrent

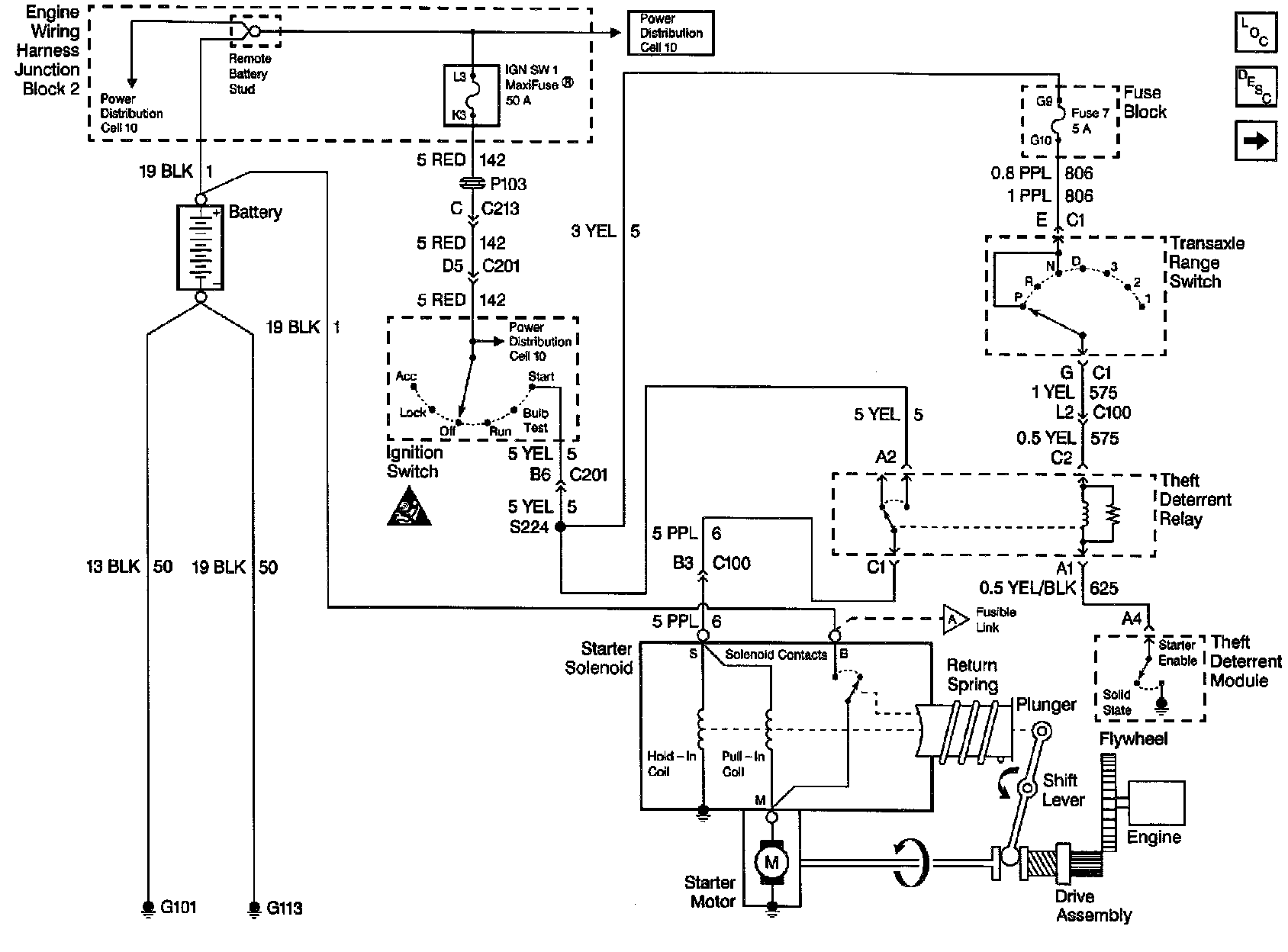

Battery, Ignition Switch, Theft Deterrent

Starting And Charging Schematics: Battery, Ignition Switch, Theft Deterrent.:
