Cruise Control Switch, Cruise Control Module, and PCM
Cruise Control Switch, Cruise Control Module, and PCM

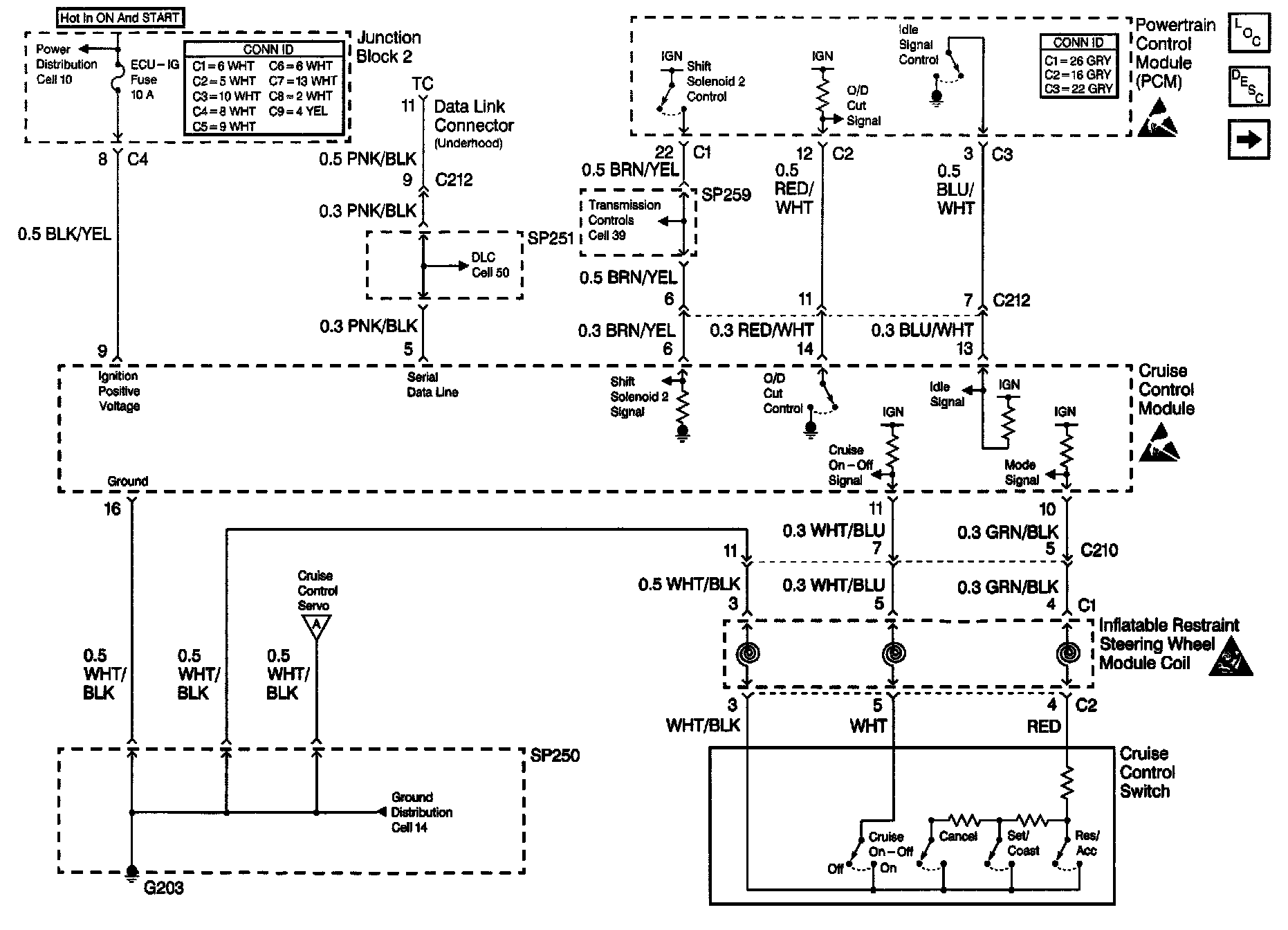

Cruise Control Schematics: Cruise Control Switch, Cruise Control Module, And PCM:
