Home
>>
Chevrolet
>>
1999
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
Vehicle Speed Sensor
Vehicle Speed Sensor

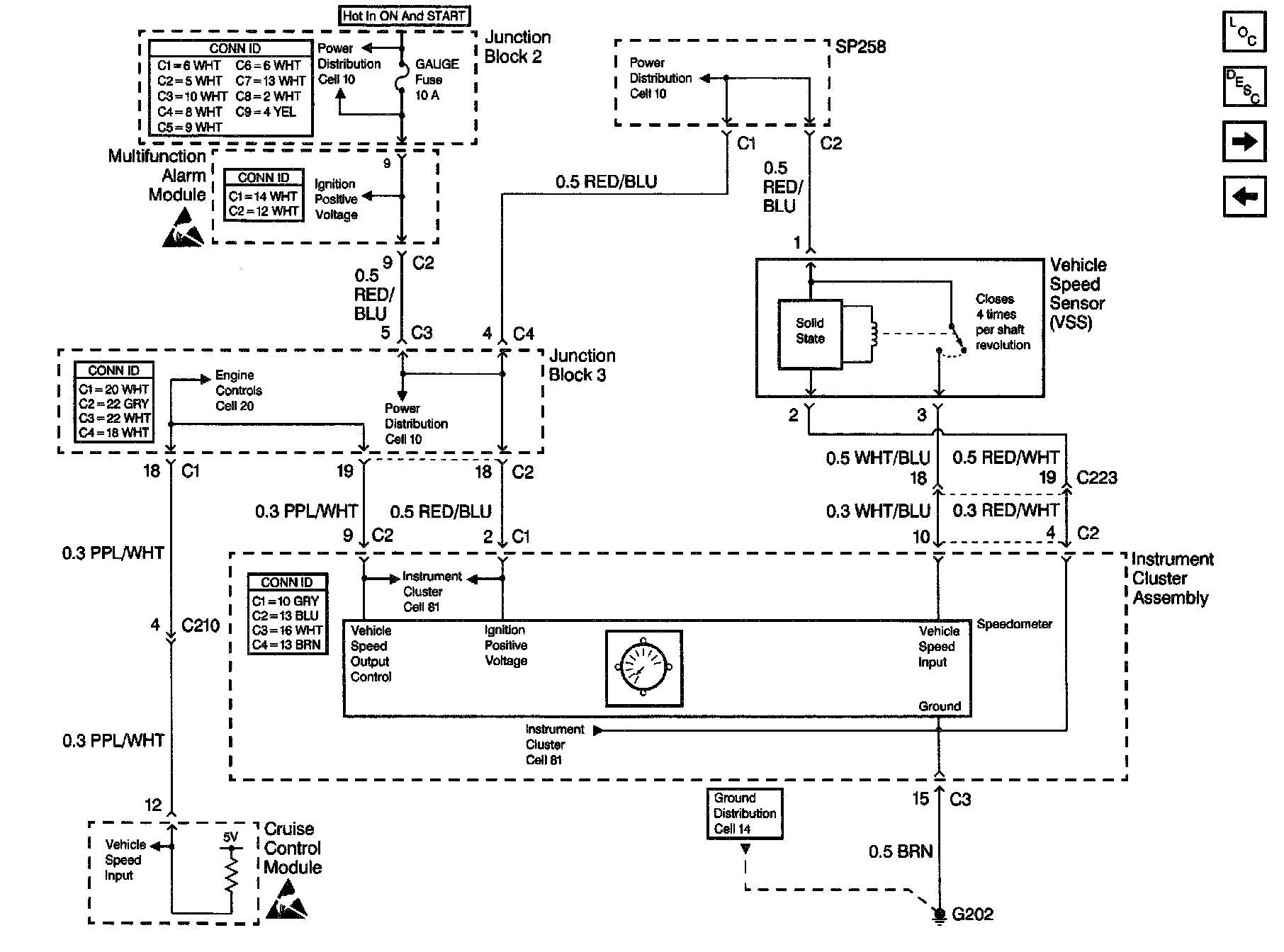

Cruise Control Schematics: Vehicle Speed Sensor:
