Door Lock Actuator, Right Front

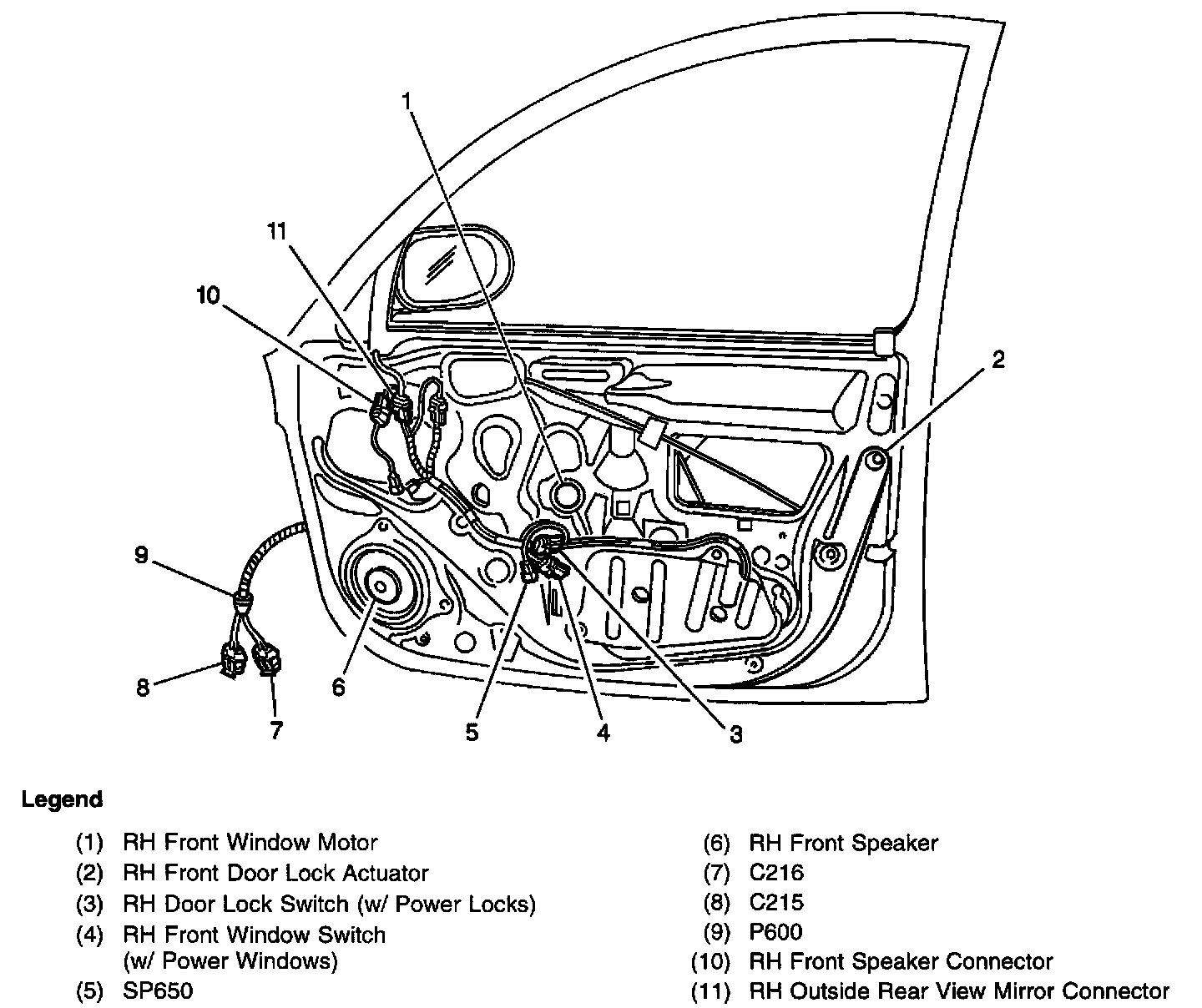

Locations View:





Inside rear of RH front door, on door lock assembly
