Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Audible Warning Device Control Module
>>

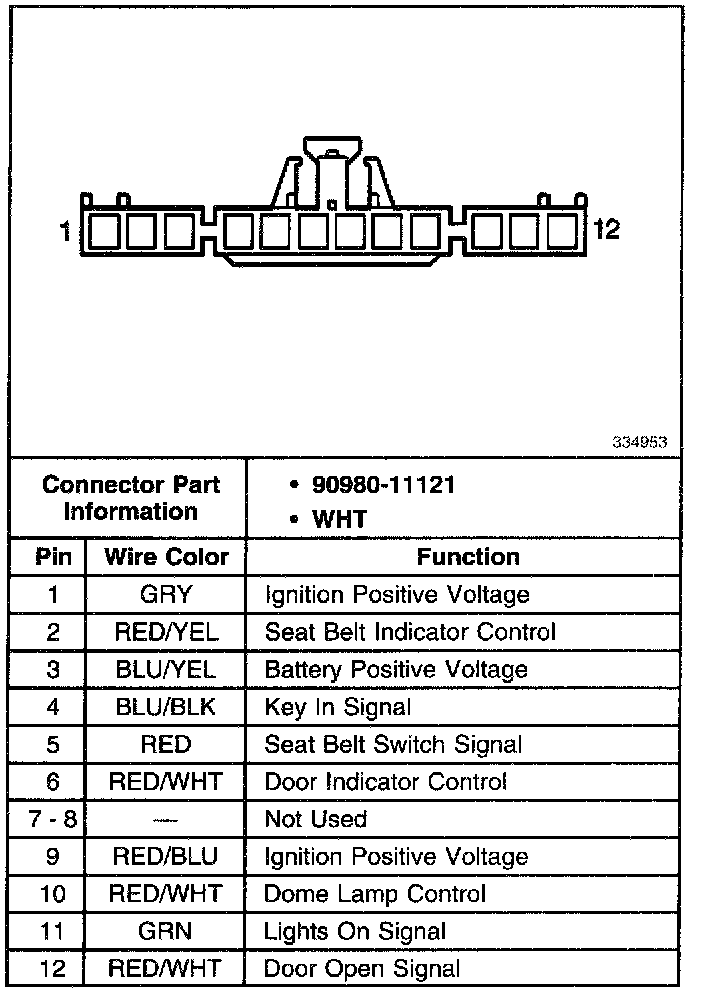

Multifunction Alarm Module C2
Multifunction Alarm Module C2
Multifunction Alarm Module C2:
