Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

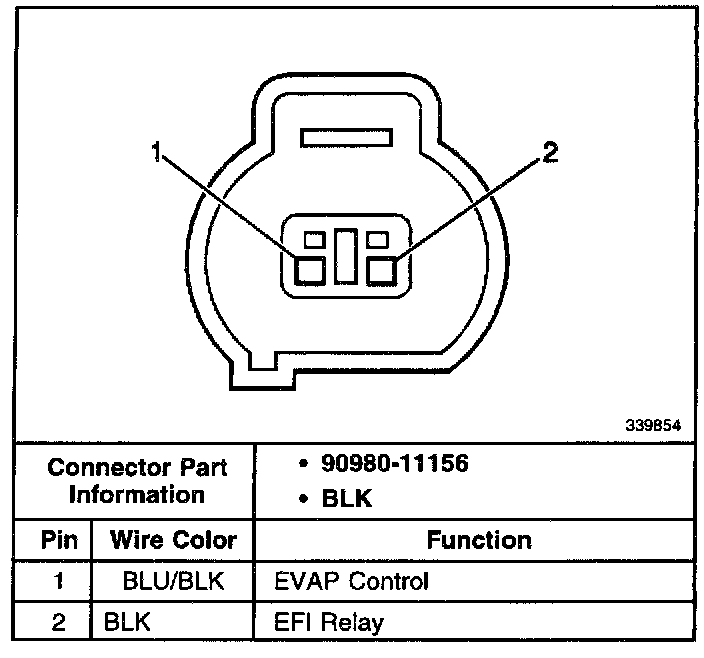

Canister Purge Control Valve
Canister Purge Control Valve
EVAP Purge Solenoid Valve:
