Power Door Lock Actuator
>>

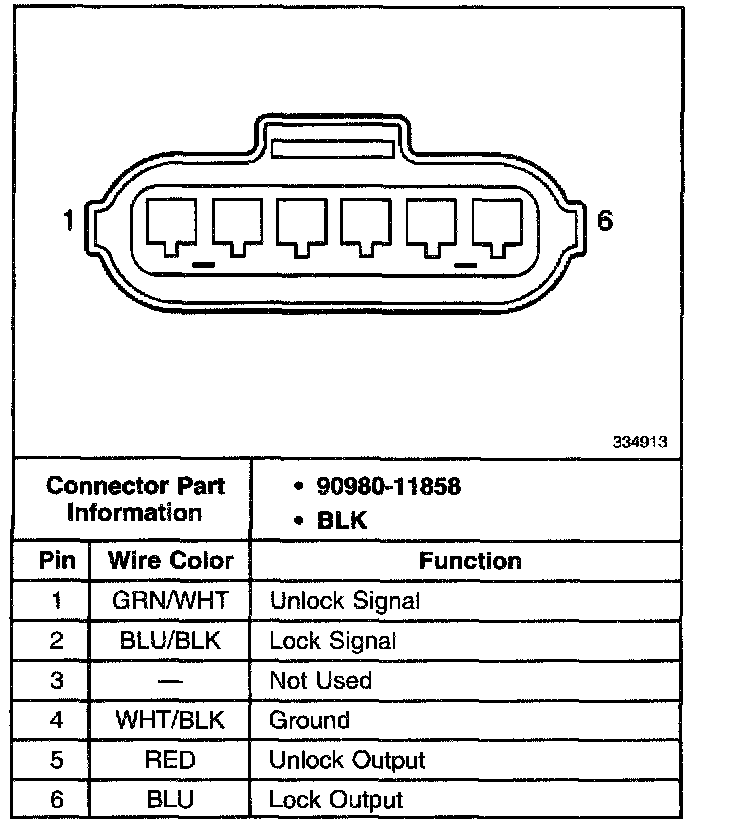

RH Front Door Lock Actuator
RH Front Door Lock Actuator
RH Front Door Lock Actuator:
