Power Door Lock Switch
>>
Door Lock Switch (W/Out Power Windows), LH
Door Lock Switch (W/Out Power Windows), LH

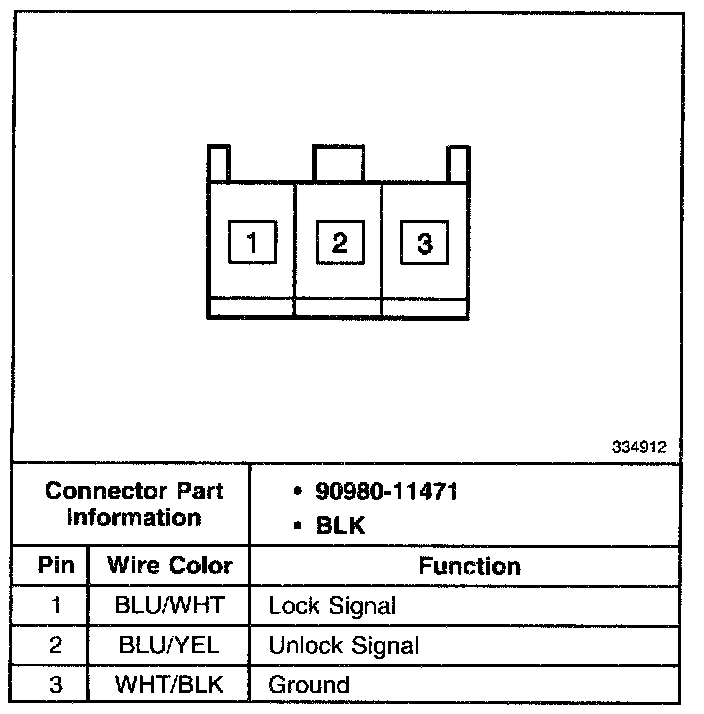

LH Door Lock Switch (w/out Power Windows):
