Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Door Lock Switch (With Power Windows), RH
Door Lock Switch (With Power Windows), RH

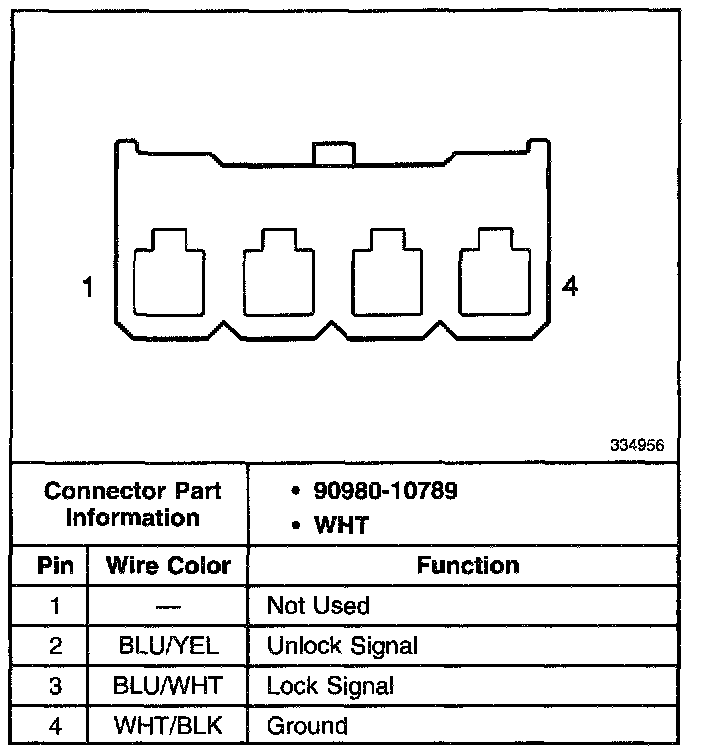

RH Door Lock Switch (With Power Windows):
